Thin Wall Plain Linear Bearing. Compensated 15mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$18.55
Closed self-lubricating plain linear bearing with a 6mm JIS Metric inner diameter and a precision running clearance of 0.0005" per side. Made with a self-lubricating FrelonGOLD® liner, it offers excellent wear resistance and vibration dampening, ensuring smooth operation without extra lubrication, in harsh and/or high temperature environments. The anodized aluminum..
$15.98
Closed self-lubricating plain linear bearing with a 100mm JIS Metric inner diameter and a precision running clearance of 0.0005" per side. Made with a self-lubricating FrelonGOLD® liner, it offers excellent wear resistance and vibration dampening, ensuring smooth operation without extra lubrication. The anodized aluminum shell is lightweight yet durable. Self-lubricating..
$566.07
Thin Wall Plain Linear Bearing with a 6mm ID (inner diameter) ISO Metric Closed Precision running clearance, 0.0005" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with an anodized aluminum outer shell Designed for use with end-supported shafting Interchangeable with compact linear ball bearings and some bronze bushings Product..
$14.38
Thin Wall Plain Linear Bearing with a 12mm ID (inner diameter) ISO Metric Closed Precision running clearance, 0.0005" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with an anodized aluminum outer shell Designed for use with end-supported shafting Interchangeable with compact linear ball bearings and some bronze bushings Product..
$16.62

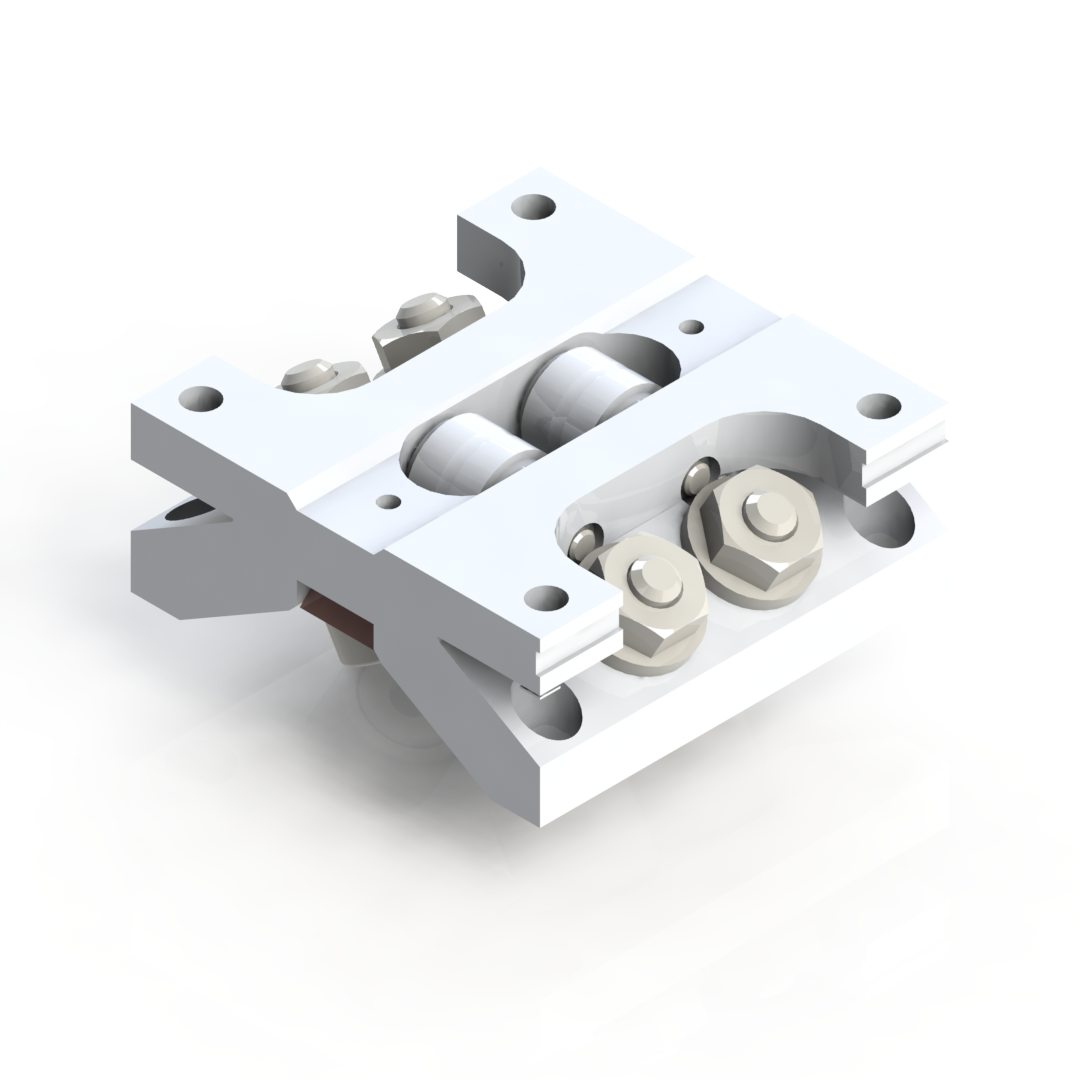

Double Roller Bearing Pillow Block (DPB) for a 5/8" diameter linear shaft in an open bearing style that features two sets of 3 opposing roller bearings while maintaining the standard size profile of a Single Roller Pillow Block (SPB). In contrast, a Twin Roller Pillow Block (TWN) also has two..
$260.24
Extended Plain Linear Bearing with a 25mm compensated ID consisting of a round flanged aluminum housing (end mount) with a self-lubricating FrelonGold® lining for maintenance-free linear, rotational or oscillating motion in harsh conditions like extreme heat, dirt, and vibration. Extended closed aluminum housing with self-lubricating FrelonGOLD® liner Round Flanged End..
$115.56
Double Roller Bearing Pillow Block (DPB) for a 1/25" diameter linear shaft features two sets of 3 opposing roller bearings while maintaining the standard size open bearing style profile of a Single Roller Pillow Block (SPB). In contrast, a Twin Roller Pillow Block (TWN) also has two sets of 3..
$399.72
Extended round flanged plain linear bearing with a 20mm ID comprising the precision-bore with a unique self-lubricating FrelonGold® liner for maintenance-free linear, rotational or oscillating motion in harsh conditions like extreme heat, dirt, and vibration. Round Flanged End Extended Size Housing - Closed Shell Precision ID running clearance (0.0005" per..
$94.59
Extended Plain Linear Bearing with a 16mm compensated ID consisting of a round flanged aluminum housing (end mount) with a self-lubricating FrelonGold® lining for maintenance-free linear, rotational or oscillating motion in harsh conditions like extreme heat, dirt, and vibration. Extended aluminum housing with a self-lubricating FrelonGOLD® liner Round Flanged End ..
$80.17
Extended Plain Linear Bearing with a 20mm ID consisting of a square flanged aluminum housing (end mount) with a self-lubricating FrelonGold® lining for maintenance-free linear, rotational or oscillating motion in harsh conditions like extreme heat, dirt, and vibration. Extended closed aluminum housing with self-lubricating FrelonGOLD® liner Square Flanged End Precision..
$94.59
Double Plain Linear Bearing of 16mm JIS Metric ID with a round flange (end-mounted) and a precision running clearance of 0.0005" per side. The self-lubricating bearing liner is FrelonGOLD®. The bearing enables linear or rotational movement. Double sized with a round flange end-mounted JIS Metric Series (Inch and ISO Metric..
$78.21
Double Plain Linear Bearing of 35mm JIS Metric ID with an end-mounted square flange and a compensated running clearance of 0.0015" per side. The self-lubricating bearing liner is FrelonGOLD®. The bearing enables linear or rotational movement. JIS Metric Series (Inch and ISO Metric variants available) Compensated ID running clearance (0.0015"..
$237.75
Double Plain Linear Bearing of 1/2" ID placed inside an aluminum housing with a square flanged end and a bearing inside with a compensated running clearance of 0.0015" per side. The self-lubricating bearing liner is FrelonGOLD® which enables linear or rotational movement. Compensated ID running clearance (0.0015" per side) Double..
$149.68
Double die set plain linear bearing, steel shelled, with a 2″ ID (inner diameter) and a precision running clearance of 0.0005″ per side. Features a center round flange and self-lubricating FrelonGOLD® liner as standard, which provides optimal performance in extreme conditions such as dirt, heat and vibration. This large sized..
$524.37
Extended Plain Linear Bearing with a 3/4" ID in a square flanged aluminum housing (end mount). The ID has a precision running clearance and features a unique self-lubricating FrelonGold® lining for maintenance-free linear, rotational or oscillating motion in harsh conditions like extreme heat, dirt, and vibration. Extended Size Housing With..
$176.77
Double die set plain linear bearing, steel shelled, with a 1.25″ ID (inner diameter) and a precision running clearance of 0.0005″ per side. Features a round flange and self-lubricating FrelonGOLD® liner as standard, which provides optimal performance in extreme conditions such as dirt, heat and vibration. This large steel shelled..
$261.51
Double die set plain linear bearing with a 1″ ID (inner diameter) and a precision running clearance of 0.0005″ per side in a closed, standard-width design. Features a round flange and self-lubricating FrelonGOLD® liner as standard, which provides optimal performance in extreme conditions such as dirt, heat and vibration. An..
$218.35
Double Plain Linear Bearing, Square Flanged Center Mount, with a 20mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a precision running clearance of 0.0005" per side. ISO Metric - Closed - Square Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$102.02
Plain Linear Bearing CFPJR30C 30mm JIS Metric, Round Flange Center, Double Wide, Compensated ID
$178.99
JIS Metric Double Plain Linear Bearing, Round Flanged Center Mount, with a 30mm JIS Metric ID (inner diameter), a self lubricating bearing liner and a compensated running clearance of 0.0015" per side, which could favor speed over precision. JIS Metric - Closed - Round Flanged Center Mount Double sized as..
$178.99
Linear bearings from PBC Linear include plain linear bearings for maintenance-free, self-lubricating motion, linear ball bearings for high-speed, low-friction performance, and cam roller pillow blocks for heavy-load, long-travel durability along round or square shafts or profiled rails. Simplicity® plain linear bearings use FrelonGold® PTFE liners to deliver consistent low-friction operation in harsh environments, including extreme heat, dirt, debris, and vibration. Round shaft plain bearings support rotary, linear, and oscillating motion, while square shaft versions support linear and oscillating motion only. They are available in standard, twin-size, flanged, and pillow block designs, including thin-walled, sleeve bushing, and die set variants. Linear ball bearings feature a heat-treated outer ring, quiet resin retainer, and recirculating steel balls to enable higher speeds and eliminate the 2:1 binding limitation of plain bearings in cantilevered applications. They are available in standard, twin-sized, flanged, and pillow block housings. Cam roller pillow blocks use open housing designs with single, double, or twin sets of coated steel cam rollers for heavy-duty performance along rail-supported round shafts. All linear bearings match standard shaft sizes in inch, metric, and JIS.
PBC Linear® Specifications for Simplicity Plain Linear Bearings:
- Self-Lubricating Bearing Liner: FrelonGOLD® is standard;
- Optional liners include Frelon® J for corrosive chemical conditions and Frelon® W (FDA compliant)
- Temperature Rating: -400°F/+400°F or -240°C/204°C
- ID Sizes: Available from 3/16” to 4” Inch Series, 5mm to 80mm Metric Series
- Maximum Horizontal Static Load: 2,165-100,500 lb (982- 45,586 kg)l
- Maximum Speed: Up to 8 m/s (315 in/s)
- Shaft Lengths: Up to 12 feet
- Shell Material: Standard is aluminum; stainless steel shells are available
- Self-Lubricating: Provides oil-free operation
- Seal Options: Nitrile rubber, urethane, and viton seals available from ½” ID and up or 20mm and up
- Mounting Options: O-ring and retaining ring grooves for multiple mounting options
- External Lubrication: Optional feature for added lubrication
- Vibration Damping: Ensures smooth and quiet operation
Specifications for Linear Ball Bearings:
- Temperature Range: -4/+176°F (-20/+80°C)
- ID Sizes: Available from 1/4" to 2” Inch Series, and 8mm to 50mm Metric Series
- Static Load Capacities: Up to 1700 lb (7900 N)
- Dynamic Load Capacities: Up to 850 lb (3800 N)
- Interchangeable: Size interchangeable with industry standards and the Simplicity plain linear bearing series
- Low Coefficient of Friction: Ensures smooth operation
- Heat Treated Alloy Steel Shell: Provides durability
- Resin Retainer: Reduces noise
- Double Seals: Included as standard at no additional cost
Specifications for Roller Bearing Pillow Blocks:
- Use a floating "F" part number for each opposing block on parallel shafts to accommodate imperfect alignments.
- A set of opposing roller bearings consists of 1 fixed side roller, 1 eccentric side roller (to account for any misalignment) and a top support roller
- FUBK Series replacement kits include one new roller for each of the three in a set
- Order two replacement kits to cover more than one set of opposing bearings
Frequently Asked Questions
What is the difference between plain linear bearings and linear ball bearings?
Plain linear bearings use self-lubricating liners and are ideal for harsh environments, while linear ball bearings use recirculating steel balls for low friction and higher-speed performance.
What are the benefits of plain linear bearings?
Plain linear bearings provide maintenance-free, self-lubricating operation and perform well in environments with heat, dirt, debris, and vibration.
What are the advantages of linear ball bearings?
Linear ball bearings deliver high-speed, low-friction performance and eliminate the 2:1 binding limitation of plain bearings in cantilevered applications.
Which linear bearing is best for dirty or harsh environments?
Plain linear bearings are best suited for dirty or harsh environments because their self-lubricating liners resist contamination from dust, debris, and moisture.
Which linear bearing is best for high-speed applications?
Linear ball bearings are ideal for high-speed applications due to their low coefficient of friction and recirculating ball design.
When should cam roller pillow blocks be used?
Cam roller pillow blocks are ideal for heavy-load, long-travel applications, using coated steel cam rollers in open housing designs for durable performance along rail-supported round shafts.
Do linear ball bearings require lubrication?
Yes, most linear ball bearings require lubrication for optimal performance and service life, unlike self-lubricating plain bearings.
What motions do plain linear bearings support?
Round shaft plain bearings support rotary, linear, and oscillating motion, while square shaft versions support linear and oscillating motion only.
Are linear bearings interchangeable with industry standards?
Yes, most linear bearings are dimensionally interchangeable with industry-standard sizes.
What sizes are available for linear bearings?
Linear bearings match standard shaft sizes and are available in inch, metric, and JIS sizing.
What is the difference between plain linear bearings and linear ball bearings?
Plain linear bearings use self-lubricating liners and are ideal for harsh environments, while linear ball bearings use recirculating steel balls for low friction and higher-speed performance.
What are the benefits of plain linear bearings?
Plain linear bearings provide maintenance-free, self-lubricating operation and perform well in environments with heat, dirt, debris, and vibration.
What are the advantages of linear ball bearings?
Linear ball bearings deliver high-speed, low-friction performance and eliminate the 2:1 binding limitation of plain bearings in cantilevered applications.
Which linear bearing is best for dirty or harsh environments?
Plain linear bearings are best suited for dirty or harsh environments because their self-lubricating liners resist contamination from dust, debris, and moisture.
Which linear bearing is best for high-speed applications?
Linear ball bearings are ideal for high-speed applications due to their low coefficient of friction and recirculating ball design.
When should cam roller pillow blocks be used?
Cam roller pillow blocks are ideal for heavy-load, long-travel applications, using coated steel cam rollers in open housing designs for durable performance along rail-supported round shafts.
Do linear ball bearings require lubrication?
Yes, most linear ball bearings require lubrication for optimal performance and service life, unlike self-lubricating plain bearings.
What motions do plain linear bearings support?
Round shaft plain bearings support rotary, linear, and oscillating motion, while square shaft versions support linear and oscillating motion only.
Are linear bearings interchangeable with industry standards?
Yes, most linear bearings are dimensionally interchangeable with industry-standard sizes.
What sizes are available for linear bearings?
Linear bearings match standard shaft sizes and are available in inch, metric, and JIS sizing.
Types of Linear Bearings we offer are: Linear Plain Bearings, Linear Plain Bearing Flange Mounts, Linear Plain Sleeve Bearings, Linear Plain Pillow Block Bearings, Linear Plain Bearing Flange Die Set Bushings, Linear Plain Square Bearings, Linear Ball Bearings, Linear Ball Bearing Flange Mounts, Linear Ball Bearing Pillow Blocks, Roller Pillow Block Bearings, Single Roller Pillow Block Bearings, Double Roller Pillow Block Bearings, Twin Roller Pillow Block Bearings
