Lead Screws with Round Nuts
- Screw Diameters: 10 mm to 16 mm
- Leads: 1 mm to 5 mm
- Nut Types: Anti-Backlash, Standard
- Screw Lengths: 254 mm, 508 mm
Round nut lead screw assemblies are offered in both standard and anti-backlash configurations, with PTFE-coated, precision-rolled 300 Series stainless steel lead screws and self-lubricating Frelon® composite nuts available across the series. The coating helps lower friction and reduce flaking, while the nut formulation supports maintenance-free motion and excellent wear resistance. The PBC Linear RS Series uses a standard round polymer nut, while the RCF Series uses the same nut with Constant Force™ anti-backlash technology, which applies consistent radial pressure to maintain thread engagement and reduce backlash by 2–4× for more stable positioning over the life of the assembly. CNC roll threading delivers standard lead accuracy of 0.003"/ft (76 µm/300 mm), typically 2–3× better than competing products, and machined journals are available to suit application requirements.
- RS Series standard round nut, RCF Series round Constant Force™ anti-backlash nut
- PTFE-coated, precision-rolled 300 Series stainless steel lead screws
- Special Frelon® composite nut formulation for self-lubrication
- Maintenance-free operation with excellent wear resistance
- Constant Force™ Technology provides greater than 2× backlash compensation
- Constant Force™ anti-backlash nuts reduce backlash by 2–4×
- Optional screw coating lowers friction and increases efficiency
- CNC roll threading delivers standard lead accuracy of 0.003"/ft (76 µm/300 mm)
- Standard lead accuracy is typically 2–3× better than competing products
- Machined journals available to suit application requirements
Our Blog Posts About Lead Screws:
- What is Lead Screw Efficiency?
- How Are Lead Screws Made
- How to Check Lead Screw Accuracy and Straightness
- Lead Screw Precision in Medical Applications
- Lead Screw Straightener at PBC Linear
- Non-Captive Lead Screw Linear Actuators
- How to Prevent Lead Screw Load Drift
- Components of Lead Screws, Ball Screws and Linear Rails
- 3 Methods of Connecting Lead Screws to Motors
Filter
Products (20)


*Full dimensions shown on individual product pages
| Name | Type | Dia. mm | Lead mm | Length mm | Price | Actions |
|---|---|---|---|---|---|---|
| LSR1001T-0254-RS-NNN-NNN-N | Standard | 10 | 1 | 254 | $72.57 | Shop |
| LSR1605T-0508-RS-NNN-NNN-N | Standard | 16 | 5 | 508 | $129.20 | Shop |
| LSR1601T-0508-RS-NNN-NNN-N | Standard | 16 | 1 | 508 | $129.20 | Shop |
| LSR1605T-0508-RCF-NNN-NNN-N | Anti-Backlash | 16 | 5 | 508 | $149.75 | Shop |
| LSR1601T-0508-RCF-NNN-NNN-N | Anti-Backlash | 16 | 1 | 508 | $149.75 | Shop |
| LSR1205T-0508-RS-NNN-NNN-N | Standard | 12 | 5 | 508 | $121.23 | Shop |
| LSR1205T-0508-RCF-NNN-NNN-N | Anti-Backlash | 12 | 5 | 508 | $132.41 | Shop |
| LSR1205T-0254-RS-NNN-NNN-N | Standard | 12 | 5 | 254 | $72.57 | Shop |
| LSR1205T-0254-RCF-NNN-NNN-N | Anti-Backlash | 12 | 5 | 254 | $83.74 | Shop |
| LSR1201T-0508-RS-NNN-NNN-N | Standard | 12 | 1 | 508 | $121.23 | Shop |
| LSR1201T-0508-RCF-NNN-NNN-N | Anti-Backlash | 12 | 1 | 508 | $132.41 | Shop |
| LSR1201T-0254-RS-NNN-NNN-N | Standard | 12 | 1 | 254 | $72.57 | Shop |
| LSR1201T-0254-RCF-NNN-NNN-N | Anti-Backlash | 12 | 1 | 254 | $83.74 | Shop |
| LSR1005T-0508-RS-NNN-NNN-N | Standard | 10 | 5 | 508 | $121.23 | Shop |
| LSR1005T-0508-RCF-NNN-NNN-N | Anti-Backlash | 10 | 5 | 508 | $132.41 | Shop |
| LSR1005T-0254-RCF-NNN-NNN-N | Anti-Backlash | 10 | 5 | 254 | $83.74 | Shop |
| LSR1005T-0254-RS-NNN-NNN-N | Standard | 10 | 5 | 254 | $72.57 | Shop |
| LSR1001T-0508-RCF-NNN-NNN-N | Anti-Backlash | 10 | 1 | 508 | $132.41 | Shop |
| LSR1001T-0508-RS-NNN-NNN-N | Standard | 10 | 1 | 508 | $121.23 | Shop |
| LSR1001T-0254-RCF-NNN-NNN-N | Anti-Backlash | 10 | 1 | 254 | $83.74 | Shop |

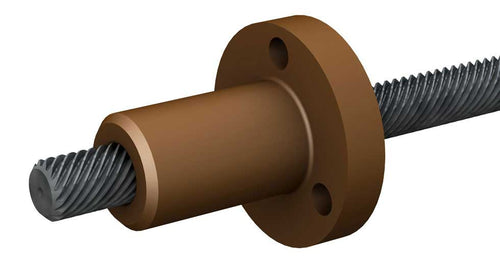

Standard round nut with PTFE coated stainless steel CNC roll threaded screw, available in a variety of sizes and leads.
- Available in inch and metric sizes
- Offered with standard nut or anti-backlash nut
- Machined journals available to suit application requirements
- Special PTFE nut formulation for self-lubrication
- Constant Force Technology offers greater than 2 times superior backlash compensation
- Optional PTFE coating lowers friction and increases efficiency
- CNC Roll Threading allows for standard accuracies 2-3 times better than the competition
Round nut lead screw assemblies are offered with a standard free-wheeling nut or a Constant Force anti-backlash nut. Both share the same nut body and flange dimensions; the anti-backlash version is longer and carries a preload band.
| Round Nut — Standard (Metric Screws) | ||||||||
|---|---|---|---|---|---|---|---|---|
| A Screw Dia. | B Nut Dia. (mm) | C Nut Length (mm) | D Flange Dia. (mm) | E Flange Thickness (mm) | F Mounting Hole Dia. (mm) | G Bolt Circle Dia. (mm) | Drag Torque (Nm) | Dynamic Load (N) |
| 6 mm | 10.2 | 22.2 | 25.4 | 4.8 | 3.6 | 19.1 | Free Wheeling | 334 N |
| 10 mm | 15.9 | 25.4 | 38.1 | 4.8 | 5.1 | 28.6 | Free Wheeling | 445 N |
| 12 mm | 16.9 | 38.1 | 44.5 | 6.4 | 5.6 | 35.7 | Free Wheeling | 778 N |
| 16 mm | 20.3 | 38.1 | 54.0 | 6.4 | 5.6 | 44.5 | Free Wheeling | 1,160 N |
| Round Nut — Constant Force Anti-Backlash (Metric Screws) | ||||||||
|---|---|---|---|---|---|---|---|---|
| A Screw Dia. | B Nut Dia. (mm) | C Nut Length (mm) | D Flange Dia. (mm) | E Flange Thickness (mm) | F Mounting Hole Dia. (mm) | G Bolt Circle Dia. (mm) | Drag Torque (Nm) | Dynamic Load (N) |
| 6 mm | 10.2 | 22.2 | 25.4 | 4.8 | 3.6 | 19.1 | 0.0134–0.0164 | 302 N |
| 10 mm | 15.9 | 38.1 | 38.1 | 4.8 | 5.1 | 28.6 | 0.0197–0.0240 | 400 N |
| 12 mm | 16.9 | 44.5 | 44.5 | 6.4 | 5.6 | 35.7 | 0.0211–0.0264 | 703 N |
| 16 mm | 20.3 | 49.5 | 54.0 | 6.4 | 5.6 | 44.5 | 0.0250–0.0310 | 1,040 N |
| Available Leads by Screw Diameter | |
|---|---|
| Screw Diameter | Metric Leads |
| 6 mm | 1, 2, 4, 5, 6, 8, 10, 12 mm |
| 10, 12, 16 mm | 1, 2, 4, 5, 6, 8, 10, 12, 16, 25 mm |
Dimensions are from the Lead Screw Assemblies catalog, metric screws. Inch screw sizes are also offered — see the catalog for inch dimensions.
Anti-backlash nuts carry between one and three band slots; slots may not contain bands depending on the drag torque required. Standard drag torque is factory set to the median value shown — contact a PBC Linear applications engineer for a custom value.
