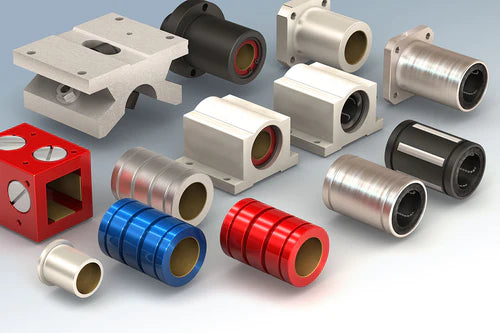

Linear Guide Bearings Engineered To Give The Highest Quality
Let PBC Linear be your one-stop shop for linear guide bearings. Whether you need plain linear bearings, steel ball bearings, or guidance for the best bearing for your application, PBC Linear has you covered.
The Best Shaft Bearing for Your Application

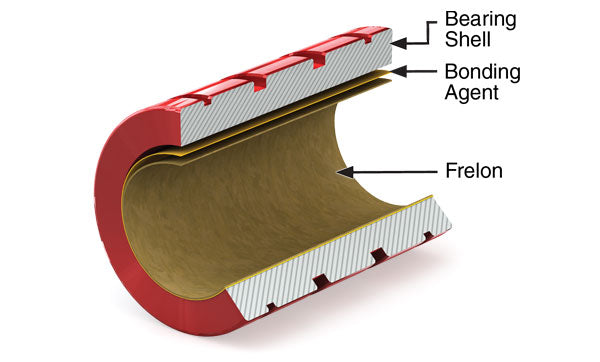

In 1983, PBC Linear® created the self-lubricating Simplicity plain linear bearing – a technology that solves problems in dirt, vibration, shock loading, cleanrooms, welding, foundry, and washdown situations where linear ball bearings regularly fail. Today, PBC Linear provides a full range of linear motion solutions with the addition of our classic line of linear ball bearings for applications requiring continuous high-speed linear motion. Our complete portfolio of both plain bearing and ball bearings gives engineers the versatility to choose the right bearing for their application.
Plain Linear Bearings Vs Linear Ball Bearings
Both plain bearings and ball bearings have advantages and disadvantages. Use the chart below to help guide your decision-making process. If you require more assistance, be sure to contact your local representative for more guidance on the linear motion bearing selection process.
Can change dramatically dependent on environmental conditions Can be preloaded, virtually eliminating play
Best suited for general manufacturing applications
-4°F / +176°F
Design Considerations for Plain Bearings
2:1 Bearing Ratio for Plain Linear Bearings
The 2:1 Bearing Ratio is officially defined as the maximum ratio of moment arm distance to bearing length which will not cause binding or prevent motion. The Binding Ratio is often displayed numerically as “2:1,” where “2” is the moment arm distance and “1” is bearing length. For example, if 2x equals 10 inches then 1x must equal 5 inches. This rule applies to all plain bearings with cantilevered loads.
Plain Linear Bearings’ Maximum PV
The maximum pressure velocity (max PV) value should also be considered when designing applications with plain bearings. Plain bearings are graded according to their maximum PV value, determined by the load per unit area and velocity. Another word for a bearings’ max PV is its maximum dynamic capability.
To be deemed fit for application without lubrication, plain bearings must satisfy three specific criteria:
Calculate Pressure
P = Maximum pressure or load in pounds per square inch (psi) or kilograms per square centimeter (kg/cm2)
A = Projected Contact Area
L = Bearing Length
d = Shaft diameter
W = Maximum load
Calculate Velocity
V = Maximum velocity or surface speed in square feet per minute (sfm) or meters per minute (m/min)
N = Rotational velocity
Calculate Maximum PV
PV = The performance measurement of plain bearings
Linear Motion Bearing Technology Provides Endless Possibilities

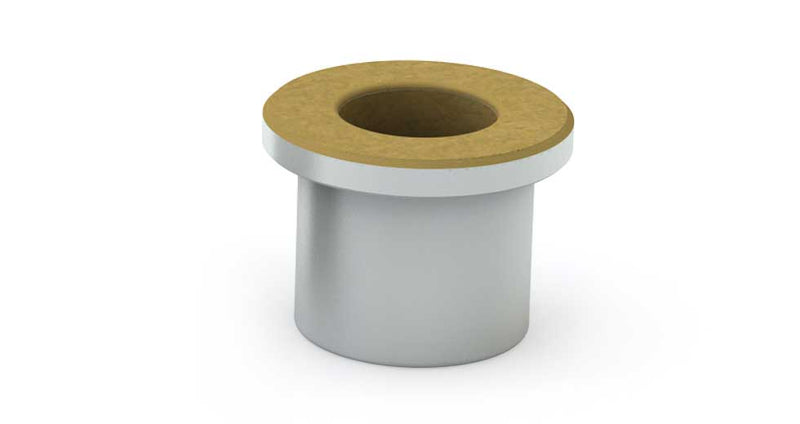

The superior technology behind PBC Linear plain bearings and ball bearings is applied to all products in our bearing portfolio. If a round bearing is not what you need, PBC Linear has other bearing styles that may be better suited for your application.
The superior technology behind PBC Linear plain bearings and ball bearings is applied to all products in our bearing portfolio. If a round bearing is not what you need, PBC Linear has other bearing styles that may be better suited for your application.

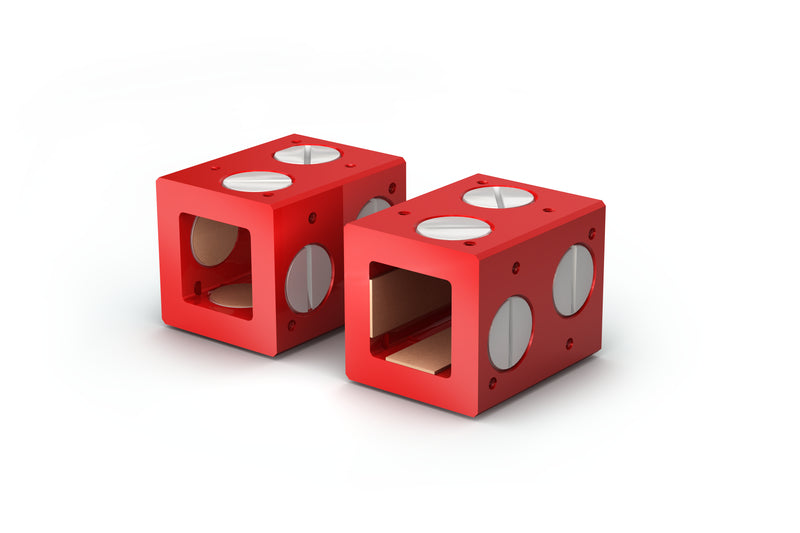

Resists torque and eliminate extra costly components in parallel shafts.

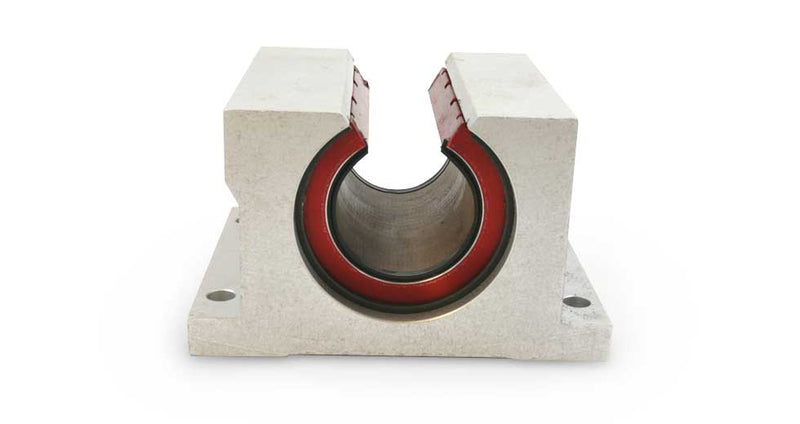

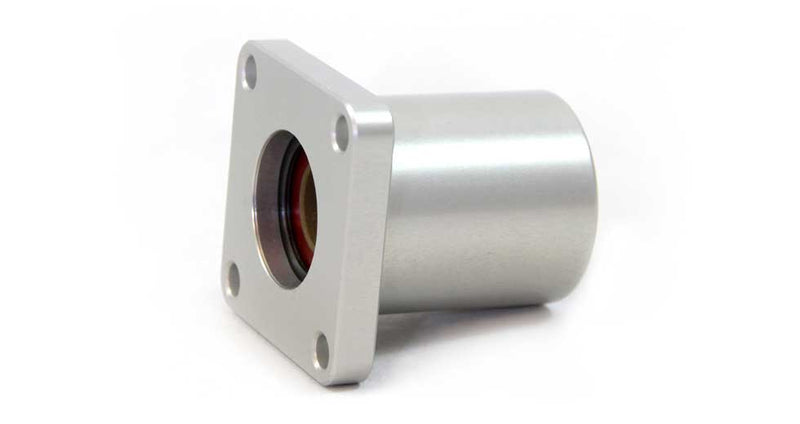

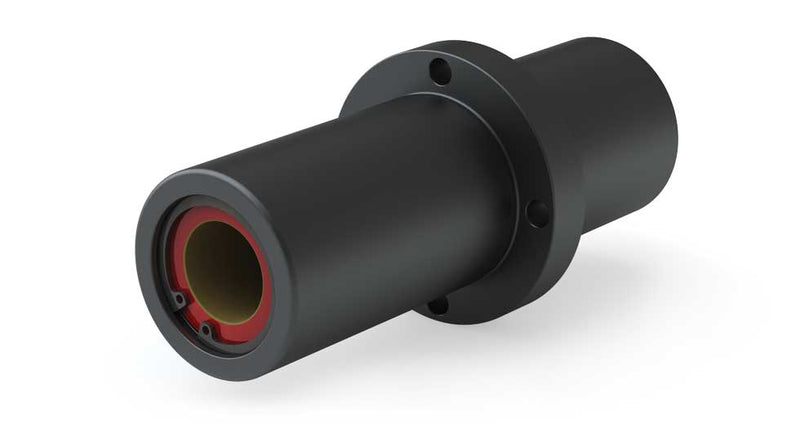

Leverage High Quality Bearing Assemblies

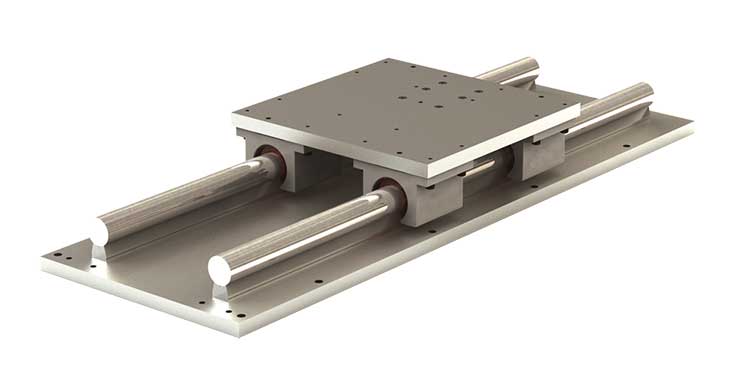

Our use of Simplicity plain bearing and ball bearing technology doesn’t just stop with bearings. PBC Linear utilizes bearings in our Simplicity Linear Slides.

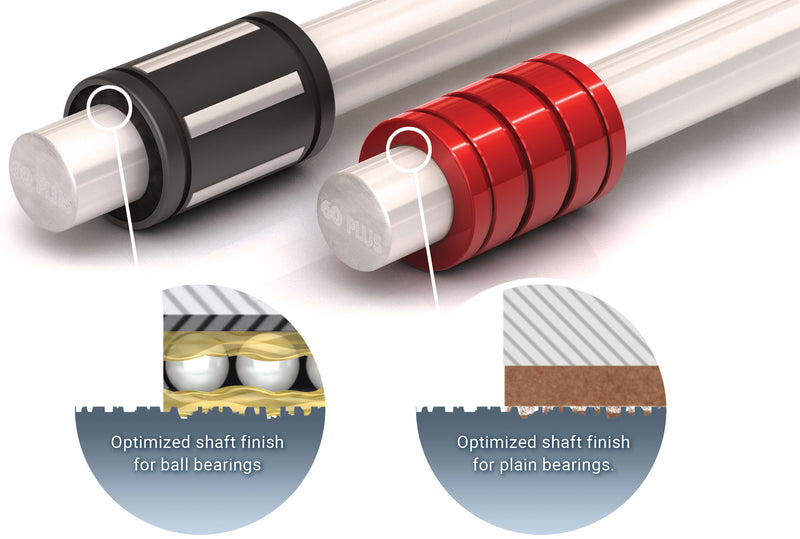

PBC Linear shafting is meticulously designed to perfectly complement high-performance linear motion bearing technology, ensuring prolonged lifespan, minimal maintenance, and dependable linear motion. Regardless of whether you’re using plain bearings or ball bearings, PBC Linear offers the best shafts suited for the job. Available in three standard materials—Carbon Steel, 400 Series Stainless Steel, and Ceramic Coated Aluminum—these shafts cater to a diverse array of applications. Shafting options are offered as either bar stock or pre-drilled, available in standard lengths or customizable cut-to-length configurations, with the option for tailored machined ends.
To learn more about our Linear Shaft offerings, be sure to check out our Engineered for Maximum Linear Bearing Performance blog post.
