Linear Guide Slides GST

Linear Slides | Gliding Surface Linear Guides

Linear slides are linear guides that use plain bearing surfaces instead of recirculating balls or rollers to move and position loads along a straight rail with one degree of freedom. These sliding-element linear guides use engineered, low-friction bearing materials to provide smooth, quiet motion without rolling elements that can jam, seize, or suffer damage from vibration, shock, and contamination. When designing cantilevered applications, the 2:1 binding rule must be considered: the greater the distance between an offset load or drive force and the rail, the greater the bearing separation or carriage length needed to prevent binding.

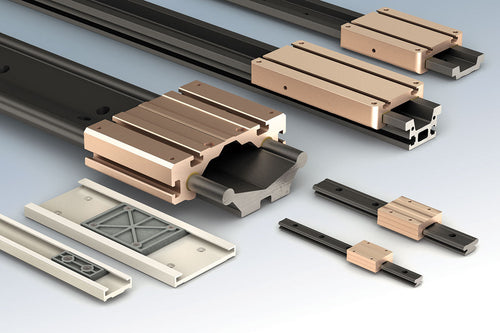

PBC Linear's Gliding Surface Technology™ (GST) linear slides combine lightweight aluminum rails with self-lubricating polymer bearing surfaces for reliable, low-maintenance linear motion. Uni-Guide™ and Mini-Rail® systems feature ceramic-coated aluminum rails and anodized aluminum carriages lined with FrelonGOLD®, which transfers a microscopic lubricating film to the rail during operation. This eliminates metal-to-metal contact while reducing friction, wear, and vibration. With no rolling elements, these linear guides are well suited for applications involving dirt, debris, washdowns, chemicals, temperature extremes, vibration, and shock loads.

Available configurations include standard Uni-Guide™, Low Profile Uni-Guide™, Tall Profile Uni-Guide™, Mini-Rail®, and Low Profile Mini-Rail® linear slides. The Uni-Guide family offers integrated rail designs for simplified installation and alignment, while Mini-Rail provides compact guidance for space-constrained applications. Low Profile Mini-Rail (LPM) uses economical molded, self-lubricating polymer carriages rather than FrelonGOLD® liners.

More About Linear Slides | Gliding Surface Linear Guides

NOTE: Gliding surface carriages and rails are manufactured as matched sets for optimal fit and performance. Do not separate, store separately, or mix and match components. Adding or replacing a carriage on an existing rail may result in improper fit or incompatibility.

Ways to Order

Catalog Preview
Web Catalog Web Catalog Download PDF Download PDF Video Video Features Features

Browse Categories

77 products
Miniature Linear Guide Carriage - Ceramic coated anodized aluminum carriage with a Precision Running Clearance. Leverages self-lubricating Simplicity® sliding bearing technology with FrelonGold® liner under the carriage.   Compatible rails: MR20R-0500, MR20R-0400, MR20R-0250, MR20R-0150 Fits 20mm base rail width- ideal for compact applications Precision Series: 0.025-0.051mm running clearance carriage to rail Anodized..
$50.14
Low Profile Uni-Guide Linear Carriage - UGA040C-0C1G00, a 100mm anodized aluminum carriage with FrelonGOLD® liner for low-wear, maintenance-free, shock-resistant gliding motion. Compensated running clearance (0.064–0.089mm). Compatible with UGA040R series rails. Compatible rails: UGA040R-1000-000, UGA040R-1500-000, UGA040R-2000-000 100mm carriage length FrelonGOLD® liner for quiet, smooth, maintenance-free operation Compensated running clearance: 0.064–0.089mm Pre-drilled..
$89.84
Low Profile Uni-Guide Linear Rail - UGA040R-400-000, a 400mm ceramic-coated angled aluminum rail with Gliding Surface Technology™ (GST) for maintenance-free, low-friction linear motion. Compatible with UGA040C series carriages. Compatible carriage: UGA040C-0C1G00 Linear rail length: 400mm 40mm wide ceramic-coated angled aluminum rail Standard anodizing with 60mm hole pattern Splatter-proof anodized finish..
$60.06
Miniature Linear Guide with a 20mm base width and 500mm length with a ceramic coated aluminum linear rail and anodized aluminum carriage with a Precision Running Clearance. Leverages self-lubricating Simplicity® sliding bearing technology with FrelonGold® liner under the carriage.   Compatible carriage: MR20C 20mm base width and 500mm length ideal for..
$75.07
Low profile linear slide carriage of length 8.5mm for 17mm wide miniature linear rails of the LPM17 Mini-Rail Series, featuring a compact molded polymer body and stainless steel threaded inserts for secure mounting. High load capacity and ≤0.5mm running clearance support smooth, reliable linear motion, while resistance to contaminants, dyes,..
$3.81
Miniature Linear Guide with a 7mm base width and 100mm length with a ceramic coated aluminum linear rail with a Precision Running Clearance. Leverages self-lubricating Simplicity® sliding bearing technology. Compatible carriage: MR07C 7mm base width and 100mm length ideal for compact applications Precision Series: 0.025-0.051mm running clearance carriage to rail..
$13.77
Miniature Linear Guide Carriage - Ceramic coated anodized aluminum carriage with a Precision Running Clearance. Leverages self-lubricating Simplicity® sliding bearing technology with FrelonGold® liner under the carriage. Compatible rails: MR07R-0150, MR07R-0100 Fits 7mm base rail width- ideal for compact applications Precision Series: 0.025-0.051mm running clearance carriage to rail Anodized aluminum..
$35.54
Miniature Linear Guide Carriage - Ceramic coated anodized aluminum carriage with a Precision Running Clearance. Leverages self-lubricating Simplicity® sliding bearing technology with FrelonGold® liner under the carriage. Compatible rails: MR09R-0150, MR09R-0125, MR09R-0100 Fits 9mm base rail width- ideal for compact applications Precision Series: 0.025-0.051mm running clearance carriage to rail Anodized..
$36.97
Miniature Linear Guide Carriage - Ceramic coated anodized aluminum carriage with a Precision Running Clearance. Leverages self-lubricating Simplicity® sliding bearing technology with FrelonGold® liner under the carriage. Compatible rails: MR15R-0400, MR15R-0200, MR15R-0150, MR15R-0100 Fits 15mm base rail width- ideal for compact applications Precision Series: 0.025-0.051mm running clearance carriage to rail..
$40.11
Linear slide with a 12" long rail and 75mm (2.95") wide carriage, from the Uni-Guide™ series of sliding linear guides. This two-piece, precision-matched rail-and-carriage assembly uses Gliding Surface Technology™ with a self-lubricating FrelonGOLD® polymer liner bonded beneath the anodized aluminum carriage for smooth, quiet, maintenance-free linear motion without additional lubrication...
$407.04
Low profile linear slide rail, 40mm wide, 9.5mm high and 750mm long, for Mini-Rail miniature linear guides and compatible with LPM40C carriages. Anodized aluminum construction with Gliding Surface Technology™ (GST) provides maintenance-free, low-friction linear motion with ≤0.5mm running clearance. Resistant to contaminants, dyes, and weak acids, with standard sizing compatible..
$65.67
Low profile linear slide carriage of length 20mm for 40mm wide miniature linear rails of the LPM40 Mini-Rail Series, featuring a compact molded polymer body and stainless steel threaded inserts for secure mounting. High load capacity and ≤0.5mm running clearance support smooth, reliable linear motion, while resistance to contaminants, dyes,..
$11.51
Low profile linear slide carriage of length 40 mm for 27 mm wide miniature linear rails of the LPM27 Mini-Rail Series, featuring a compact molded polymer body and stainless steel threaded inserts for secure mounting. High load capacity and ≤0.5mm running clearance support smooth, reliable linear motion, while resistance to..
$6.34
Miniature Linear Guide Carriage - Ceramic coated anodized aluminum carriage with a Precision Running Clearance. Leverages self-lubricating Simplicity® sliding bearing technology with FrelonGold® liner under the carriage. Compatible rails: MR12R-0200, MR12R-0150, MR12R-0100 Fits 12mm base rail width- ideal for compact applications Precision Series: 0.025-0.051mm running clearance carriage to rail Anodized..
$38.20
Miniature Linear Guide with a 15mm base width and 100mm length with a ceramic coated aluminum linear rail with a Precision Running Clearance. Leverages self-lubricating Simplicity® sliding bearing technology. Compatible carriage: MR15C 15mm base width and 100mm length ideal for compact applications Precision Series: 0.025-0.051mm running clearance carriage to rail..
$13.77
Linear slide guide with a 40mm-tall profile, 400mm-long hard-coat anodized aluminum rail, and 100mm carriage for moving and accurately positioning loads. The underside of the carriage is lined with self-lubricating FrelonGOLD® PTFE-based polymer material that glides along the rail's angled surfaces without metal-on-metal contact. This Gliding Surface Technology (GST) provides..
$172.72
Linear slide with a 36" long rail, 100mm (3.94") wide carriage, and integrated hand brake, from the Uni-Guide™ series of sliding linear guides. This two-piece, precision-matched rail-and-carriage assembly uses Gliding Surface Technology™ with a self-lubricating FrelonGOLD® polymer liner bonded beneath the anodized aluminum carriage for smooth, quiet, maintenance-free linear motion..
$1,024.84
Low profile linear slide carriage 20mm for 80mm wide miniature linear rails of the LPM80 Mini-Rail Series, featuring a compact molded polymer body and stainless steel threaded inserts for secure mounting. High load capacity and ≤0.5mm running clearance support smooth, reliable linear motion, while resistance to contaminants, dyes, and weak..
$16.46
Low profile linear slide rail, 80mm wide, 12mm high and 300mm long, for Mini-Rail miniature linear guides and compatible with LPM80C carriages. Anodized aluminum construction with Gliding Surface Technology™ (GST) provides maintenance-free, low-friction linear motion with ≤0.5mm running clearance. Resistant to contaminants, dyes, and weak acids, with standard sizing compatible..
$41.30
Low profile linear slide rail, 27mm wide, 9.5mm high and 750mm long, for Mini-Rail miniature linear guides and compatible with LPM27C carriages. Anodized aluminum construction with Gliding Surface Technology™ (GST) provides maintenance-free, low-friction linear motion with ≤0.5mm running clearance. Resistant to contaminants, dyes, and weak acids, with standard sizing compatible..
$65.67
77 products

Linear Slides | Gliding Surface Linear Guides

77 products

Linear slides are linear guides that use plain bearing surfaces instead of recirculating balls or rollers to move and position loads along a straight rail with one degree of freedom. These sliding-element linear guides use engineered, low-friction bearing materials to provide smooth, quiet motion without rolling elements that can jam, seize, or suffer damage from vibration, shock, and contamination. When designing cantilevered applications, the 2:1 binding rule must be considered: the greater the distance between an offset load or drive force and the rail, the greater the bearing separation or carriage length needed to prevent binding.

PBC Linear's Gliding Surface Technology™ (GST) linear slides combine lightweight aluminum rails with self-lubricating polymer bearing surfaces for reliable, low-maintenance linear motion. Uni-Guide™ and Mini-Rail® systems feature ceramic-coated aluminum rails and anodized aluminum carriages lined with FrelonGOLD®, which transfers a microscopic lubricating film to the rail during operation. This eliminates metal-to-metal contact while reducing friction, wear, and vibration. With no rolling elements, these linear guides are well suited for applications involving dirt, debris, washdowns, chemicals, temperature extremes, vibration, and shock loads.

Available configurations include standard Uni-Guide™, Low Profile Uni-Guide™, Tall Profile Uni-Guide™, Mini-Rail®, and Low Profile Mini-Rail® linear slides. The Uni-Guide family offers integrated rail designs for simplified installation and alignment, while Mini-Rail provides compact guidance for space-constrained applications. Low Profile Mini-Rail (LPM) uses economical molded, self-lubricating polymer carriages rather than FrelonGOLD® liners.



  • Self-lubricating linear slides for moving and positioning loads
  • Plain bearing technology without recirculating balls or rollers
  • FrelonGOLD® polymer liners for smooth, maintenance-free linear motion
  • Ceramic-coated aluminum rails for corrosion and wear resistance
  • Anodized aluminum carriages for lightweight, durable construction
  • No metal-to-metal contact in Frelon-lined linear guides
  • Quiet, low-friction operation with vibration and shock resistance
  • Suitable for dirty, wet, washdown, and demanding industrial environments
  • Multiple rail profiles, carriage lengths, and mounting configurations
  • Compact Mini-Rail and economical molded-polymer LPM options
  • Observe the 2:1 binding rule for cantilevered loads and offset drive forces
  • Custom configurations available through Configure & Quote





Frequently Asked Questions

What are linear slides?
Linear slides are linear guides that use sliding bearing surfaces to support and move loads along a straight rail with one degree of freedom. Unlike ball bearing linear guides, plain linear slides operate without rolling elements. They typically use engineered polymers or other low-friction materials to provide smooth, quiet linear motion in industrial machinery, automation systems, and positioning equipment.
What is the difference between linear slides and ball bearing linear guides?
Linear slides use sliding contact between a carriage's bearing surface and a rail, while ball bearing linear guides use rolling elements to reduce friction. Plain linear slides generally offer quieter operation, greater vibration damping, and improved resistance to certain contaminants and shock loads. Ball bearing guides typically provide lower running friction and may be preferable for applications requiring high precision, high speeds, or low drive forces.
Do self-lubricating linear slides require external lubrication?
Self-lubricating linear slides use bearing materials designed to operate without routine external lubrication. PBC Linear's FrelonGOLD®-lined carriages transfer a microscopic film of bearing material to the rail during operation, creating a low-friction sliding surface. This reduces wear and eliminates the need for routine greasing in properly specified applications.
What is FrelonGOLD® and how does it work in linear guides?
FrelonGOLD® is a proprietary self-lubricating polymer bearing material used in PBC Linear's Gliding Surface Technology linear guides. The liner separates the aluminum carriage from the rail, preventing metal-to-metal contact. During operation, microscopic amounts of the bearing material transfer to the rail surface, reducing friction and wear while providing smooth, quiet, maintenance-free linear motion.
What is the 2:1 binding rule for linear slides?
The 2:1 binding rule is a design guideline for preventing friction-related binding in plain bearing linear guides. The distance from the rail to an offset load or applied drive force should generally not exceed twice the effective bearing length or separation between supporting bearings. For example, a 200mm offset typically requires at least 100mm of effective bearing length or separation. Exceeding this ratio can cause increased friction, uneven movement, or binding, even when the applied load is relatively small.
Can linear slides operate in dirty or contaminated environments?
Plain bearing linear slides can provide reliable motion in environments containing dirt, dust, debris, moisture, and other contaminants that may interfere with rolling-element bearings. PBC Linear's FrelonGOLD®-lined linear guides use self-lubricating sliding surfaces without exposed rolling elements, making them suitable for many packaging, washdown, material handling, and industrial automation applications. Compatibility depends on the specific contaminants and operating conditions.
Are polymer linear slides suitable for high-vibration or shock-load applications?
Polymer linear slides can provide vibration damping and shock resistance because their sliding bearing surfaces distribute contact forces without relying on recirculating balls or rollers. PBC Linear's FrelonGOLD®-lined guides also eliminate metal-to-metal contact, reducing the risk of catastrophic rolling-element bearing failure in applications exposed to vibration, impact, and shock loads.
What types of linear slides does PBC Linear offer?
PBC Linear offers several Gliding Surface Technology linear slide configurations, including Uni-Guide™, Low Profile Uni-Guide™, Tall Profile Uni-Guide™, Mini-Rail®, and Low Profile Mini-Rail®. These systems provide different rail profiles, carriage sizes, and mounting options. Most use self-lubricating FrelonGOLD® liners, while the economical Low Profile Mini-Rail (LPM) series uses molded polymer slider carriages.
What are the advantages of aluminum linear slides?
Aluminum linear slides combine lightweight construction with corrosion resistance and convenient mounting options. PBC Linear uses ceramic-coated aluminum rails and anodized aluminum carriages in many of its gliding surface linear guides. These materials provide durable running surfaces while reducing the weight of the linear motion assembly compared with heavier steel-based systems.
What applications are best suited for plain bearing linear slides?
Plain bearing linear slides are commonly used in packaging machinery, medical equipment, food-processing systems, material handling, laboratory automation, and industrial positioning mechanisms. Their self-lubricating construction, quiet operation, and resistance to vibration and contamination make them useful where frequent maintenance is undesirable or conventional rolling-element bearings may be exposed to demanding operating conditions.
