Round Flanged Plain Linear Bearing of precision 60mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Precision running clearance of 0.0005” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions like..
$399.24
Round Flanged Plain Linear Bearing of 60mm precision ISO Metric ID (inner diameter) and part of the Simplicity® product line. The precision running clearance of 0.0005” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions..
$57.60
Plain Linear Bearing, round flanged, with a precision 80mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Precision running clearance of 0.0005” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions..
$670.76
Round Flanged Plain Linear Bearing of 80mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions like dirt,..
$670.76
Plain Linear Bearing with a round flange and a 50mm precision ID, designed to slide smoothly on both steel and ceramic-coated aluminum shafts. It features a self-lubricating FrelonGOLD® bearing liner that performs reliably with vibration damping in harsh conditions, enabling long-term, maintenance-free operation. Precision running clearance on the inner diameter..
$233.15
Plain Linear Bearing with a square flange and a 30mm precision ID, designed to slide smoothly on both steel and ceramic-coated aluminum shafts. It features a self-lubricating FrelonGOLD® bearing liner that performs reliably with vibration damping in harsh conditions, enabling long-term, maintenance-free operation. Precision running clearance on the inner diameter..
$98.60
Round Flanged Plain Linear Bearing of 16mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions like dirt,..
$46.04
Round Flanged Plain Linear Bearing of 30mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions like dirt,..
$98.60
Round Flanged Plain Linear Bearing of 25mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions like dirt,..
$68.35
Square Flanged Plain Linear Bearing of 50mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions like dirt,..
$233.15
Round Flanged Plain Linear Bearing of 40mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions like dirt,..
$179.58
Plain Linear Bearing with a round flange and a 40mm precision ID, designed to slide smoothly on both steel and ceramic-coated aluminum shafts. It features a self-lubricating FrelonGOLD® bearing liner that performs reliably with vibration damping in harsh conditions, enabling long-term, maintenance-free operation. Precision running clearance on the inner diameter..
$179.58
Plain Linear Bearing with a square flange and an 80mm precision ID, designed to slide smoothly on both steel and ceramic-coated aluminum shafts. It features a self-lubricating FrelonGOLD® bearing liner that performs reliably with vibration damping in harsh conditions, enabling long-term, maintenance-free operation. Precision running clearance on the inner diameter..
$670.76
Plain Linear Bearing with a square flange and a 50mm precision ID, designed to slide smoothly on both steel and ceramic-coated aluminum shafts. It features a self-lubricating FrelonGOLD® bearing liner that performs reliably with vibration damping in harsh conditions, enabling long-term, maintenance-free operation. Precision running clearance on the inner diameter..
$233.15
Plain Linear Bearing with a round flange and a 30mm precision ID, designed to slide smoothly on both steel and ceramic-coated aluminum shafts. It features a self-lubricating FrelonGOLD® bearing liner that performs reliably with vibration damping in harsh conditions, enabling long-term, maintenance-free operation. Precision running clearance on the inner diameter..
$98.60
Plain Linear Bearing, round flanged, with a compensated 60mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions..
$57.60
JIS Metric Round Flanged Plain Linear Bearing 20mm ID (inner diameter) with a precision running clearance of 0.0005" per side. Straight outer diameter. Round Flange JIS Metric (Japanese Industrial Standards) Self-Lubricating Bearing Liner: FrelonGOLD® is standard; Optional liners include Frelon® J & Frelon® W (for FDA compliance) Temperature Rating: -400°F/+400°F or..
$55.90
Square Flanged Plain Linear Bearing of 25mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions like dirt,..
$68.35
Plain Linear Bearing with a round flange and a 12mm precision ID, designed to slide smoothly on both steel and ceramic-coated aluminum shafts. It features a self-lubricating FrelonGOLD® bearing liner that performs reliably with vibration damping in harsh conditions, enabling long-term, maintenance-free operation. Precision running clearance on the inner diameter..
$39.45
Round Flanged Plain Linear Bearing of 12mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner ensures maintenance-free performance in harsh conditions like dirt,..
$39.45
Linear Bearings manufactured by PBC Linear® include three main types: self-lubricating plain linear bearings, linear ball bearings, and roller bearing pillow blocks, all adhering to industry size standards.
Simplicity® Plain Linear Bearings feature a self-lubricating FrelonGold® PTFE liner for maintenance-free operation in harsh environments, resisting dirt, heat, and vibration. They support rotary, linear, or oscillating motion in open and closed designs, with options in inch, ISO Metric, or JIS Metric sizes. Simplicity bearings come in standard-size, double-size, pillow blocks, flange mounts, sleeve bearings, and die set bearings.

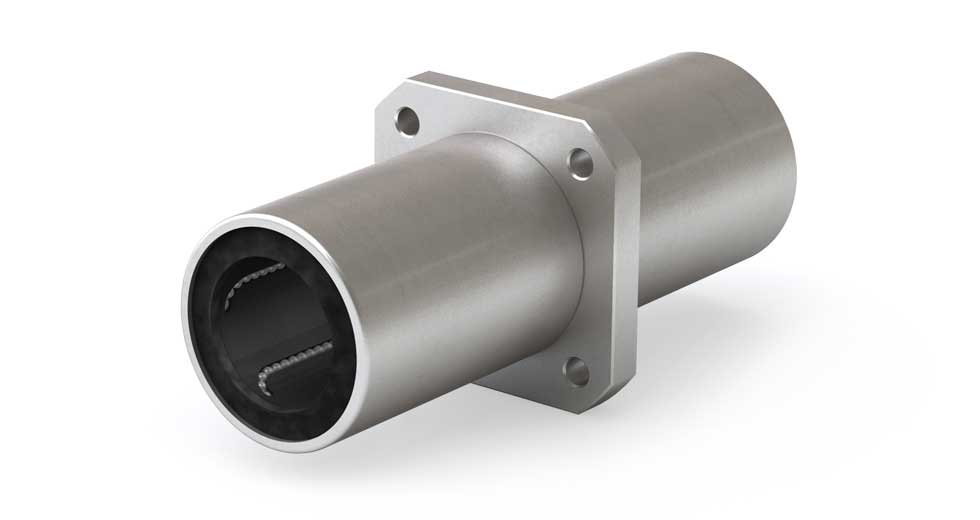

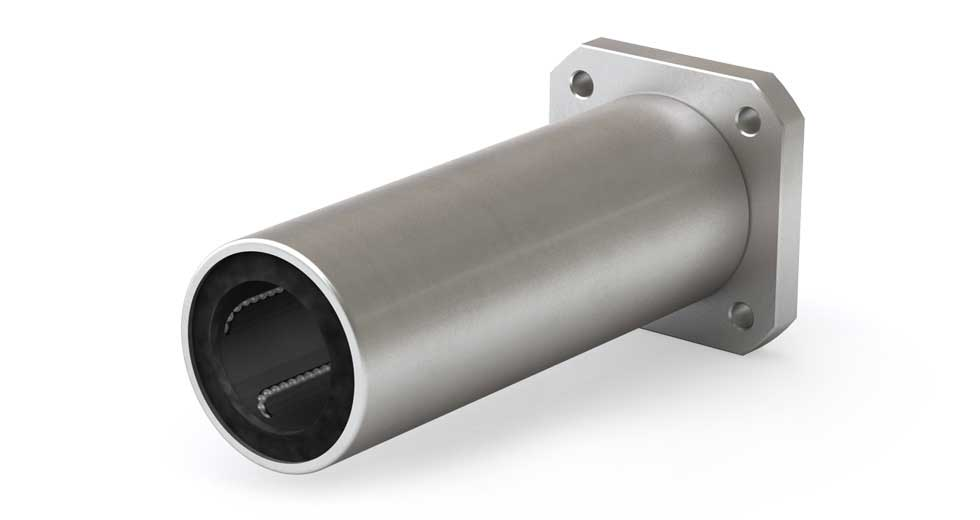

Linear Ball Bearings have a heat-treated outer ring for durability, a resin retainer polymer cage for quiet performance, and low-friction steel balls for enhanced speed, avoiding the typical 2:1 binding ratio of plain bearings. Linear ball bearings are offered in the form of standard-sized, double-sized, pillow blocks, and flange mounts.
Roller Bearing Pillow Blocks consist of single, double, or twin sets of three opposing coated steel rollers in an open aluminum housing, rolling along rail-supported steel linear shafts for robust heavy-duty performance.
PBC Linear® Specifications for Simplicity Plain Linear Bearings:
- Self-Lubricating Bearing Liner: FrelonGOLD® is standard;
- Optional liners include Frelon® J for corrosive chemical conditions and Frelon® W (FDA compliant)
- Temperature Rating: -400°F/+400°F or -240°C/204°C
- ID Sizes: Available from 3/16” to 4” Inch Series, 5mm to 80mm Metric Series
- Maximum Horizontal Static Load: 2,165-100,500 lb (982- 45,586 kg)l
- Maximum Speed: Up to 8 m/s (315 in/s)
- Shaft Lengths: Up to 12 feet
- Shell Material: Standard is aluminum; stainless steel shells are available
- Self-Lubricating: Provides oil-free operation
- Seal Options: Nitrile rubber, urethane, and viton seals available from ½” ID and up or 20mm and up
- Mounting Options: O-ring and retaining ring grooves for multiple mounting options
- External Lubrication: Optional feature for added lubrication
- Vibration Damping: Ensures smooth and quiet operation
Specifications for Linear Ball Bearings:
- Temperature Range: -4/+176°F (-20/+80°C)
- ID Sizes: Available from 1/4" to 2” Inch Series, and 8mm to 50mm Metric Series
- Static Load Capacities: Up to 1700 lb (7900 N)
- Dynamic Load Capacities: Up to 850 lb (3800 N)
- Interchangeable: Size interchangeable with industry standards and the Simplicity plain linear bearing series
- Low Coefficient of Friction: Ensures smooth operation
- Heat Treated Alloy Steel Shell: Provides durability
- Resin Retainer: Reduces noise
- Double Seals: Included as standard at no additional cost
Specifications for Roller Bearing Pillow Blocks:
- Use a floating "F" part number for each opposing block on parallel shafts to accommodate imperfect alignments.
- A set of opposing roller bearings consists of 1 fixed side roller, 1 eccentric side roller (to account for any misalignment) and a top support roller
- FUBK Series replacement kits include one new roller for each of the three in a set
- Order two replacement kits to cover more than one set of opposing bearings
View the full feature list of all of our Linear Bearings
Other types of Linear Bearings we offer are: Linear Plain Bearings, Linear Plain Bearing Flange Mounts, Linear Plain Sleeve Bearings, Linear Plain Pillow Block Bearings, Linear Plain Bearing Flange Die Set Bushings, Linear Plain Square Bearings, Linear Ball Bearings, Linear Ball Bearing Flange Mounts, Linear Ball Bearing Pillow Blocks, Roller Pillow Block Bearings, Single Roller Pillow Block Bearings, Double Roller Pillow Block Bearings, Twin Roller Pillow Block Bearings
