Ball Screws and Lead Screws

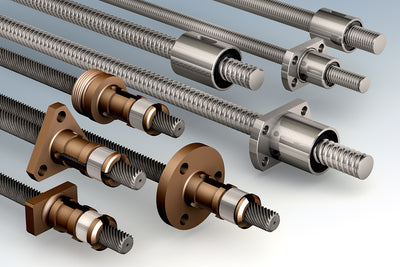

Ball Screw and Lead Screw Assemblies

Both technologies use self-lubricating nuts for maintenance-free performance

Ball screw and lead screw linear assemblies, defined as precision guides that can be equipped with NEMA motors, hand cranks, or left unmotorized for custom linear motion control. Ball screws utilize recirculating steel balls within cylindrical or flanged nuts, offering superior speed, durability, and short lead times through precise rolling action that maintains consistent lead accuracy across the screw's length. Lead screws, by contrast, deliver a more cost-effective option with Round or Triangular Constant Force Anti-Backlash Nuts, which are incompatible with ball screw systems, exhibiting 2-4 times less backlash than competitors over their lifespan. Both technologies benefit from self-lubricating nuts, ensuring reliable, maintenance-free performance in demanding environments.

Buy Ball Screw and Lead Screw Assemblies

Lead Screws & Nuts
Lead Screws with Nuts
Miniature Metric Ball Screw Assemblies
Miniature Ball Screws
Download and View Catalog PDF Download PDF

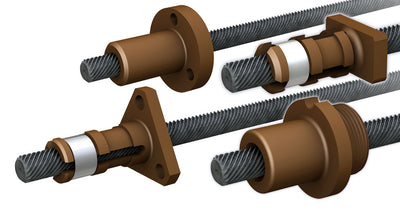

Lead Screws with Nuts

PBC Linear® offers advanced Lead Screws and Nuts with Constant Force Anti-Backlash Nuts, ensuring exceptional precision, longevity, and lead accuracy

Features/Benefits of Lead Screws with Nuts

  • CNC Roll Threading provides standard accuracies up to 0.003”/ft, with options for precision lead accuracy down to 0.001”/ft.
  • Proprietary manufacturing processes reduce pitting and flanking, extending the usable life up to 6,000 miles in continuous duty.
  • Made from 300 Series Stainless Steel, with an optional PTFE coating to decrease friction and increase efficiency.
  • All nut styles are self-lubricating for maintenance-free operation over their lifespan.
  • Constant Force Anti-Backlash technology ensures consistent pressure and minimized backlash throughout use.
  • Built to perform in temperatures from -30°C to 120°C, accommodating a wide range of environmental conditions.
  • We produce custom machined journals and ball screw designs to meet specialized application requirements.
  • Nut shapes include triangle, round, and rectangle, with features like constant force anti-backlash for diverse operational demands.

Lead Screw Assemblies FAQ

Applications
  • Industrial automation systems
  • Precision lab equipment
  • CNC machinery
  • 3D printing platforms
  • Robotics
  • Aerospace mechanisms
  • Optical and medical devices
Download and View Catalog PDF Download PDF

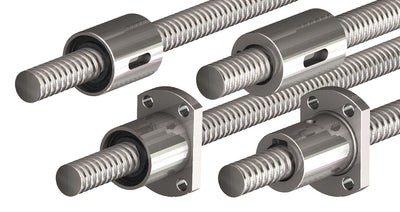

Miniature Ball Screws

The BSR Miniature Metric Ball Screw Assemblies, featuring Cylindrical and Flange Nuts, boast a robust design, tailored for small-scale, high-precision applications. While made in the USA, they are available in six metric sizes, their compact nature does not compromise on power, with a static axial load capacity of up to 2.144 kN (482 lb).

Features/Benefits of Ball Screws

  • Designed for small spaces without sacrificing performance.
  • Supports static axial loads up to 2.144 kN (482 lb.).
  • Equipped with polymer wipers to maintain cleanliness and function.
  • Offers both cylindrical and flange nuts for versatile installation options.
  • PBC Linear provides custom designs to meet unique application specifications.
  • Delivered assembled for convenience, with an option for unassembled units.
  • Utilizes a multi-liner ball return system for enduring performance.

Ball Screw Assemblies FAQ

Applications
  • Precision instrumentation
  • Medical devices
  • Aerospace components
  • Robotics
  • Small-scale industrial machinery
  • 3D printing equipment
  • Laboratory automation
