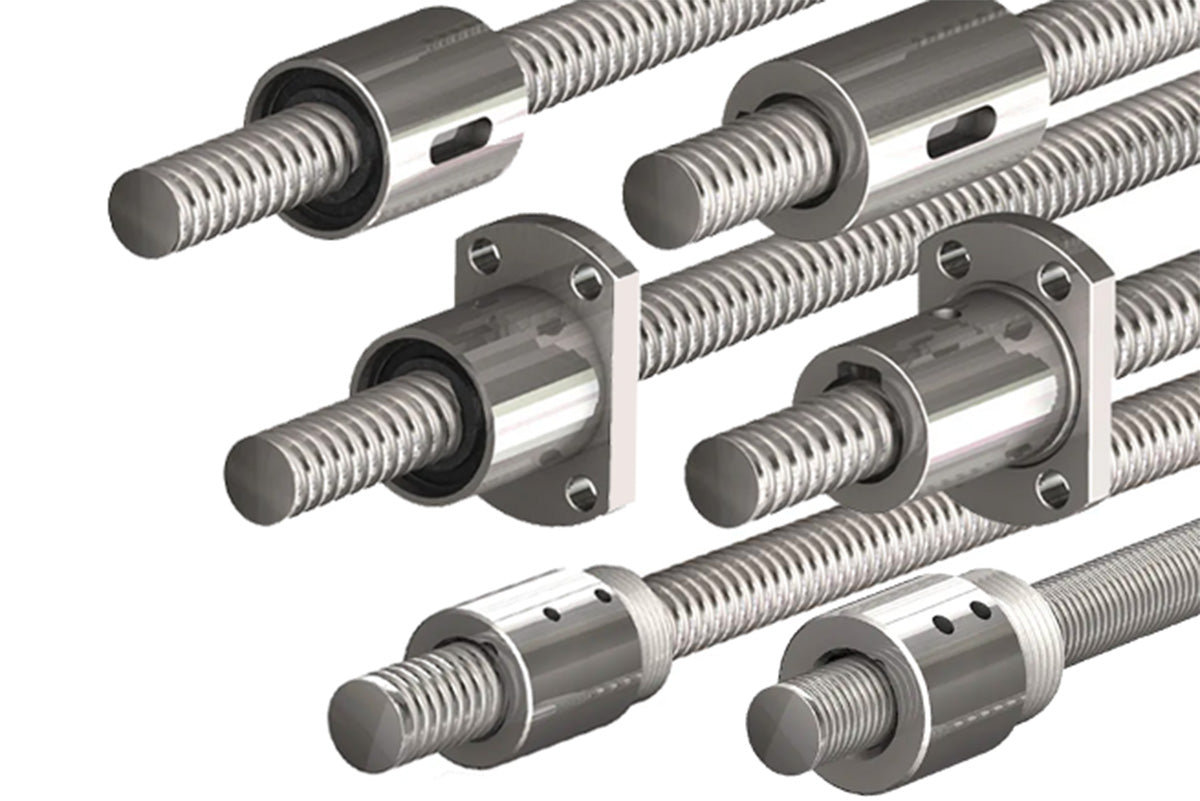

BSR Series – Non-Motorized Assemblies with Flanged and Cylindrical Nuts

Ball screws, also known as ball screw assemblies, use a threaded screw and a ball nut (cylindrical or flanged) with recirculating balls to convert rotary motion into low-friction linear motion. BSR Miniature Ball Screws from PBC Linear are non-motorized precision ball screw and nut assemblies, designed to be paired with a customer-selected motor or drive system. Designed and manufactured in the USA, these assemblies are available in six metric size combinations (diameter × lead), providing a compact and efficient solution for a wide range of linear motion applications.

Each BSR assembly is engineered for durability and consistent performance, with static axial load capacities up to 2.144 kN (482 lb). The nut incorporates an integrated multi-liner ball return system that promotes smooth, efficient ball recirculation, contributing to excellent motion precision and reliability. Polymer wipers on both ends of the nut help protect against debris ingress and support long service life. Available in Grade 5, 7, or 10 accuracy, BSR Miniature Ball Screws are well suited for applications requiring precise, compact, and flexible linear motion solutions where the motor and drive architecture is selected separately

Browse, Configure and Buy Miniature Ball Screw Asssemblies

Contact an Application Engineer for ordering a specific grade at application.engineering@pbclinear.com.

Ball Screw Assemblies FAQ

Explore PBC Linear Motorized Ball Screws

Performance Benefits of Miniature Ball Screws

  • Compact Design: Cylindrical nuts enable more compact assembly designs, while flange nuts offer easy mounting options.
  • High Load Capacity: Capable of handling static axial loads up to 2.144 kN (482 lb), suitable for various applications.
  • Debris Prevention: Polymer wipers at each nut's end help keep out debris, ensuring long-term reliability.
  • Versatile Mounting: Availability of standard and special machined journals, as well as fixed and floating end blocks, to meet diverse mounting needs.
  • Customization Options: PBC Linear welcomes inquiries about custom ball screw designs to meet specific application requirements.
  • Ease of Assembly: Available as both assembled and unassembled units, providing flexibility according to assembly preferences.
  • Durability: Utilization of a multi-liner ball return system contributes to the units' long-lasting performance.

Flanged or Cylindrical Nuts

Shop our standard off-the-shelf offerings or use the configurator to customize the perfect solution for your linear motion application.

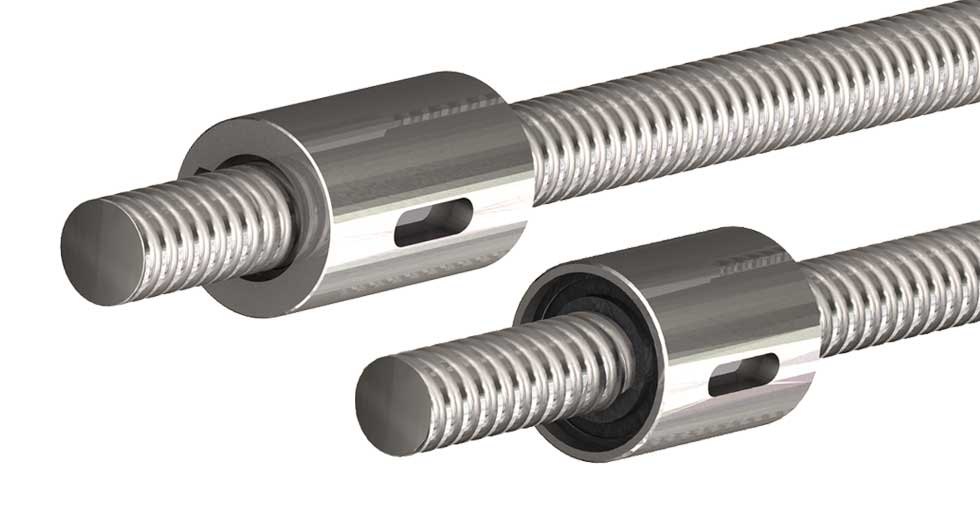

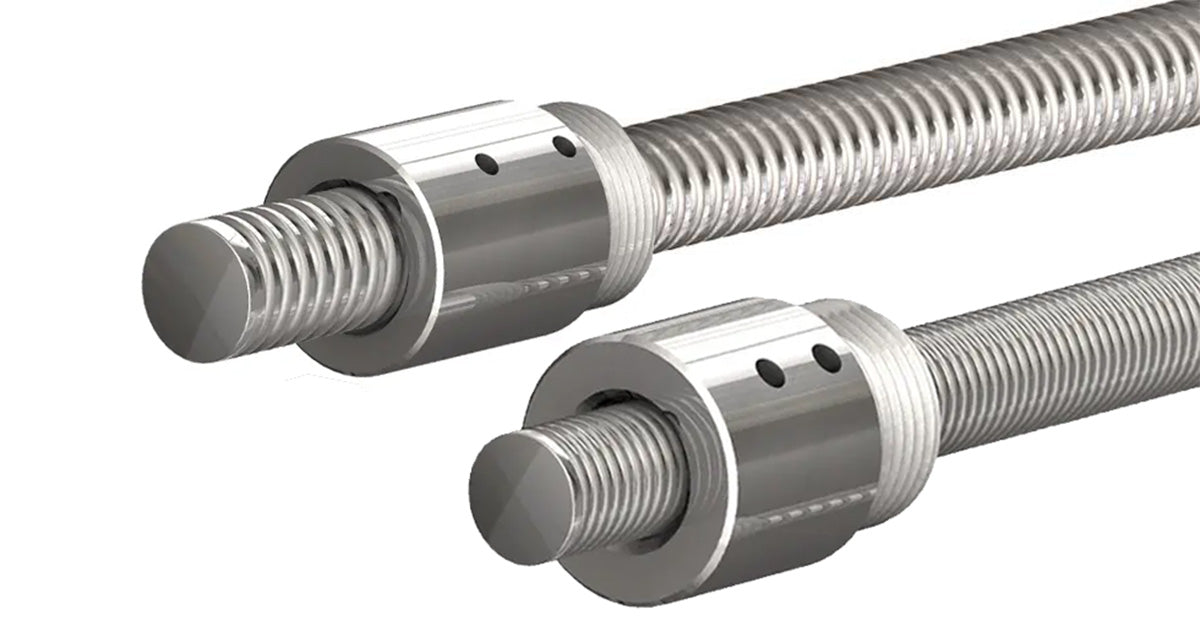

BSR Miniature Ball Screw with Cylindrical Nut

BSR Miniature Metric Ball Screw with Cylindrical Nut

Ball screws with cylindrical-style nuts allow for a more compact assembly design than their flange counterpart. They mount into specially designed housings, while a keyway in the nut mates with the housing to keep the nut from rotating within the housing.

  • Standard, no preload (Standard backlash clearance held to 0.05 mm MAX)
  • Standard and special machined journals available (Fixed or Floating)
  • Fixed and floating end blocks available
Name Diameter (mm) Lead (mm) Length (mm) Shop Link
BSR0601ATXR-0150-CSN-NNN-NNN-N 6 1 150 Shop Now
BSR0601ATXR-0250-CSN-NNN-NNN-N 6 1 250 Shop Now
BSR0602ATXR-0150-CSN-NNN-NNN-N 6 2 150 Shop Now
BSR0602ATXR-0250-CSN-NNN-NNN-N 6 2 250 Shop Now
BSR0801ATXR-0150-CSN-NNN-NNN-N 8 1 150 Shop Now
BSR0801ATXR-0250-CSN-NNN-NNN-N 8 1 250 Shop Now
BSR08025TXR-0150-CSN-NNN-NNN-N 8 2.50 150 Shop Now
BSR08025TXR-0250-CSN-NNN-NNN-N 8 2.50 250 Shop Now
BSR0802ATXR-0150-CSN-NNN-NNN-N 8 2 250 Shop Now
BSR0802ATXR-0250-CSN-NNN-NNN-N 8 2 150 Shop Now
BSR1002ATXR-0200-CSN-NNN-NNN-N 10 2 200 Shop Now
BSR1002ATXR-0500-CSN-NNN-NNN-N 10 2 500 Shop Now

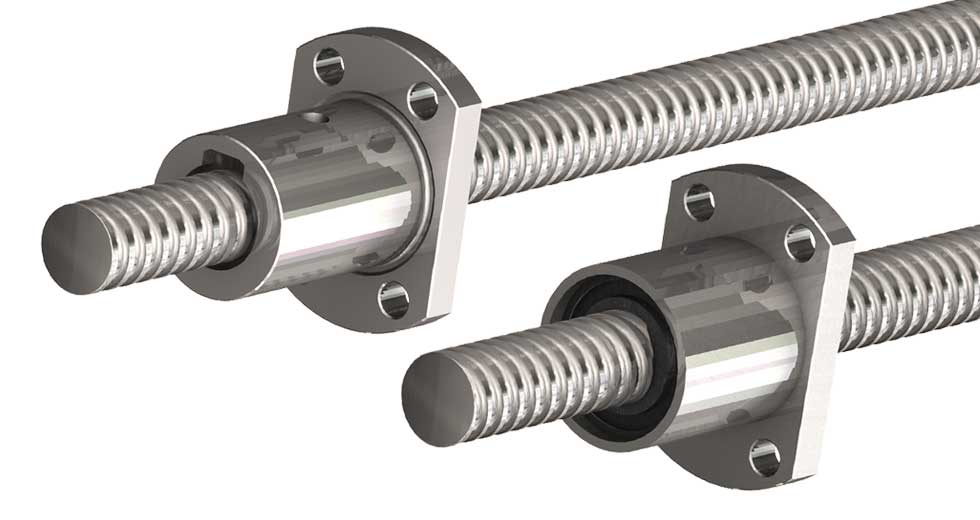

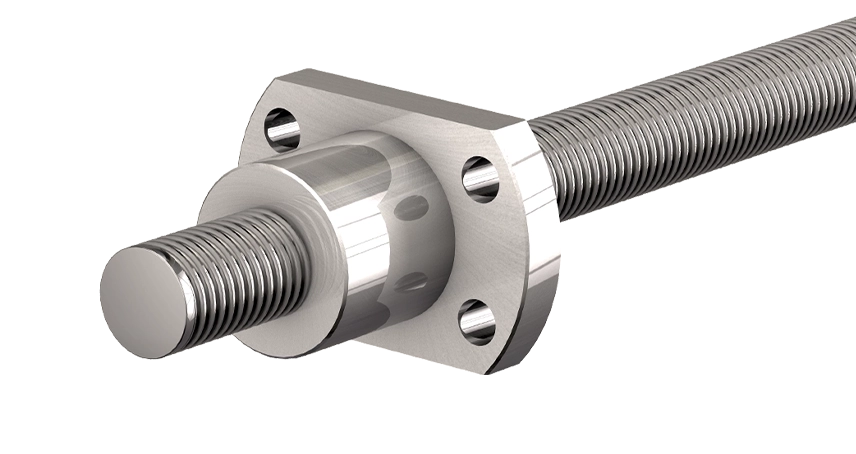

BSR Miniature Ball Screw with Flange Nut

BSR Miniature Metric Ball Screw with Flange Nut

Ball screws with flanged ball nuts are mounted to a plate or block using bolts or screws are secured through the provided holes. Flange-style nuts can often be easier to remove and install in an assembly, provided the mounting screws are easily accessible.

  • Standard, no preload (Standard backlash clearance held to 0.05 mm MAX)
  • Standard and special machined journals available (Fixed or Floating)
  • Fixed and floating end blocks available
Name Diameter (mm) Lead (mm) Length (mm) Shop Link
BSR0601ATXR-0150-RSN-NNN-NNN-N 6 1 150 Shop Now
BSR0602ATXR-0150-RSN-NNN-NNN-N 6 2 150 Shop Now
BSR0602ATXR-0250-RSN-NNN-NNN-N 6 2 250 Shop Now
BSR0801ATXR-0150-RSN-NNN-NNN-N 8 1 150 Shop Now
BSR0801ATXR-0250-RSN-NNN-NNN-N 8 1 250 Shop Now
BSR08025TXR-0150-RSN-NNN-NNN-N 8 2.50 150
BSR08025TXR-0250-RSN-NNN-NNN-N 8 2.50 250 Shop Now
BSR0802ATXR-0150-RSN-NNN-NNN-N 8 2 150 Shop Now
BSR0802ATXR-0250-RSN-NNN-NNN-N 8 2 250 Shop Now
BSR1002ATXR-0200-RSN-NNN-NNN-N 10 2 200 Shop Now
BSR1002ATXR-0500-RSN-NNN-NNN-N 10 2 500 Shop Now
