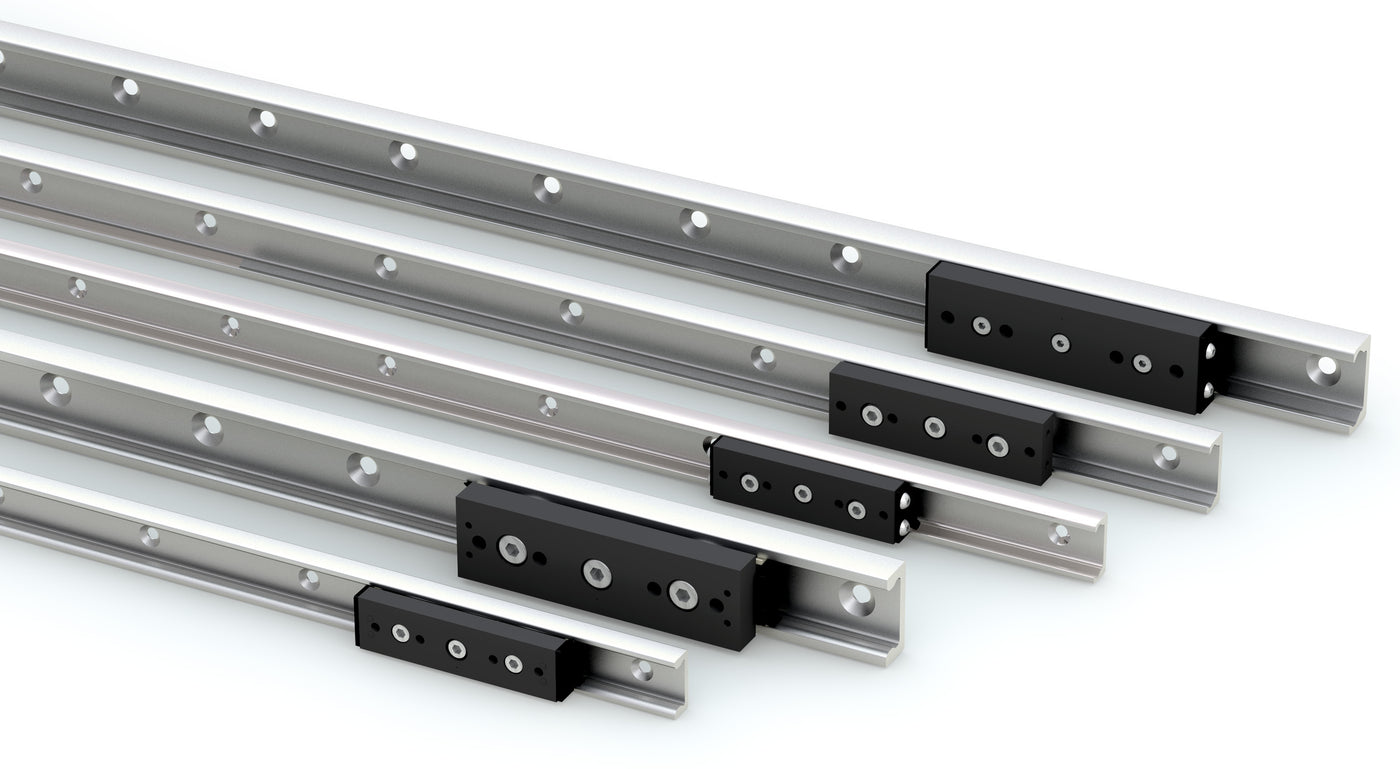

Steel Rail Standard & Steel Rail Plus Linear Guides
Steel Rail Standard: Heavy-Duty Linear Motion
Designed for high loads and harsh environments, the Steel Rail Series delivers smooth, precise motion with unmatched rigidity and wear resistance. Perfect for industrial automation, packaging equipment, and machine tools.
Key Features:
- Variety of Roller Configurations: 3, 4, and 5 roller carriages available in several configurations for optimal load capacities and moment loads.
- High Load Capacity: Maximum dynamic capacity of 19,650 N.
- Low Friction & Noise: Concentric and eccentric rollers provide quiet, fluid motion.
- Wear-Resistant Construction: Cold-drawn, ground steel rails are induction hardened for long life.
- Mounting Flexibility: Counterbore and countersunk rail options.
- Integrated Lubrication: Oil-soaked felt wipers keep the rails clean and lubricated.
- Built-in Scraper Blade: Eliminates debris and contaminants from the rail surface
- Adjustable Preload: Tighten or loosen the preload to balance rigidity and smoothness for your specific application.

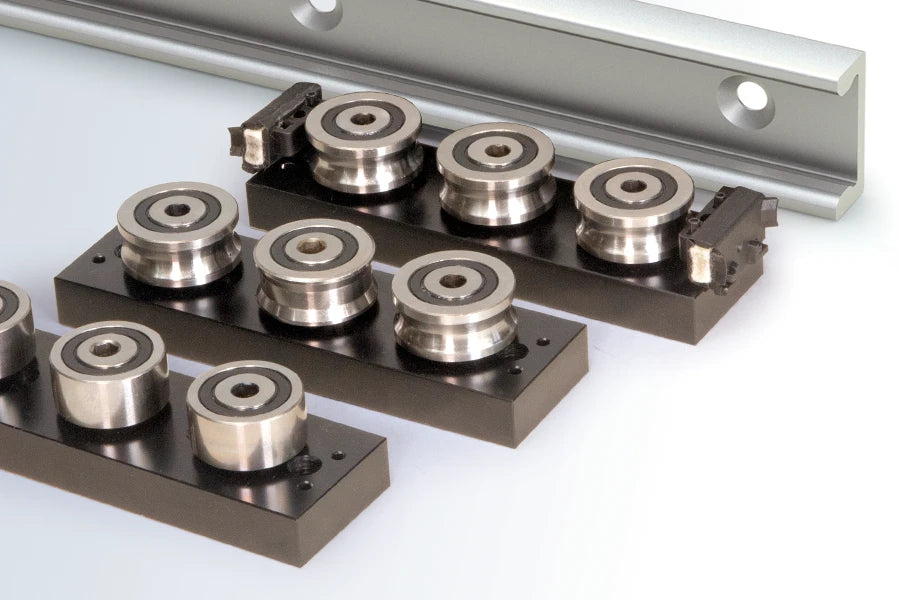

Steel Rail Plus: Solution for Parallel Rail Applications
Perfect for applications where parallelism is hard to achieve, Steel Rail Plus compensates for mounting errors to reduce binding, wear, and downtime. Use a combination of guiding + floating carriages or rotating + floating carriages to create successful parallel systems.
Key Features:
-
Three Carriage Types Provide Different Self-Alignment Capabilities:
- Guiding Carriage: Fully constrains motion in all directions for one-sided precision.
- Floating Carriage: Allows axial movement to compensate for parallel rail gaps.
- Rotating Carriage: Supports slight angular misalignment with full radial load support.
- Variety of Roller Configurations: 3, 4, 5, and 6 roller carriages available in several configurations for optimal load capacities and moment loads.
- Assortment of Roller Configurations: Carriages available with 3-6 double bearing rollers in several configurations for optimal load capacities and moment loads.
- High Load Capacity: Maximum dynamic capacity of 20,520 N.
- Self-Aligning Systems: Perfect for applications with uneven surfaces.
- Variety of Features: Equipped with all the same great features of Steel Rail Standard.
Shop Steel Rail Linear Guides
Shop our standard off-the-shelf offerings or use the configurator to customize the perfect solution for your linear motion application. Rails and carriages are sold separately.
Here is our latest blog post about Steel Rail.

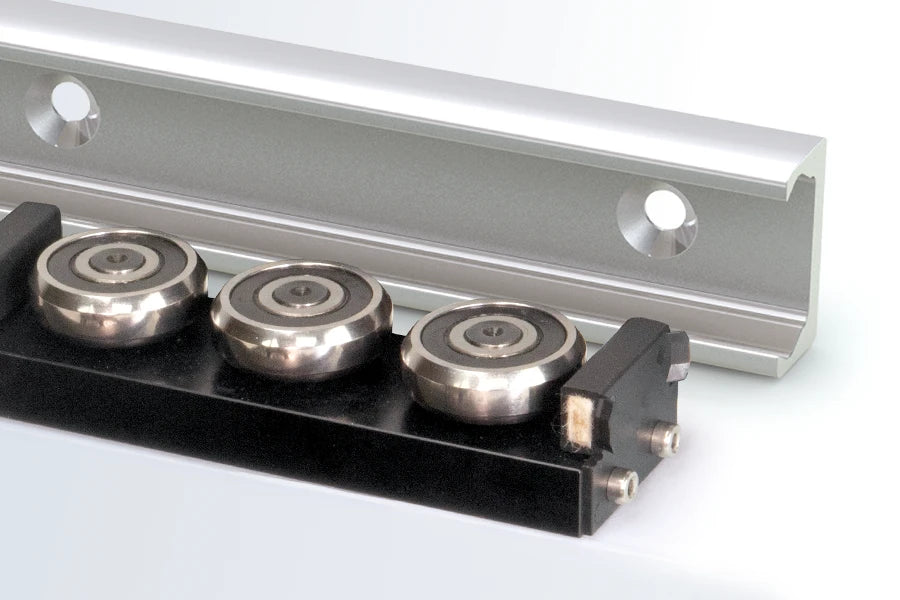

Steel Rail Standard Linear Guide - SRS Rail and SRS Carriage
| Part Number | Width (mm) | Item | Rail Length (mm) | Mounting Hole Type | Shop Link |
|---|---|---|---|---|---|
| SRS28R-0250C* | 28 | Ground Rail | 250 | Counterbore | Shop Now |
| SRS28R-0500C* | 28 | Ground Rail | 500 | Counterbore | Shop Now |
| SRS28R-1000C* | 28 | Ground Rail | 1,000 | Counterbore | Shop Now |
| SRS28R-0250V | 28 | Ground Rail | 250 | Countersunk | Configure |
| SRS28R-0500V | 28 | Ground Rail | 500 | Countersunk | Configure |
| SRS28R-1000V | 28 | Ground Rail | 1,000 | Countersunk | Configure |
| SRS35R-0250C* | 35 | Ground Rail | 250 | Counterbore | Shop Now |
| SRS35R-0500C* | 35 | Ground Rail | 500 | Counterbore | Shop Now |
| SRS35R-1000C* | 35 | Ground Rail | 1,000 | Counterbore | Shop Now |
| SRS35R-0250V | 35 | Ground Rail | 250 | Countersunk | Shop Now |
| SRS35R-0500V | 35 | Ground Rail | 500 | Countersunk | Configure |
| SRS35R-1000V | 35 | Ground Rail | 1,000 | Countersunk | Configure |
| SRS43R-0250C* | 43 | Ground Rail | 250 | Counterbore | Shop Now |
| SRS43R-0500C* | 43 | Ground Rail | 500 | Counterbore | Shop Now |
| SRS43R-1000C* | 43 | Ground Rail | 1,000 | Counterbore | Shop Now |
| SRS43R-0250V | 43 | Ground Rail | 250 | Countersunk | Configure |
| SRS43R-0500V | 43 | Ground Rail | 500 | Countersunk | Configure |
| SRS43R-1000V | 43 | Ground Rail | 1,000 | Countersunk | Configure |
| Part Number | Width (mm) | Item | Carriage Length (mm) | |
|---|---|---|---|---|
| SRS28C-3AS* | 28 | 3 Roller Carriage | 88 | Shop Now |
| SRS28C-4AS | 28 | 4 Roller Carriage | 140 | Configure |
| SRS28C-4BS | 28 | 4 Roller Carriage | 140 | Configure |
| SRS28C-4CS | 28 | 4 Roller Carriage | 140 | Configure |
| SRS28C-5AS | 28 | 5 Roller Carriage | 140 | Configure |
| SRS28C-5BS | 28 | 5 Roller Carriage | 140 | Configure |
| SRS35C-3AS* | 35 | 3 Roller Carriage | 114 | Shop Now |
| SRS35C-4AS | 35 | 4 Roller Carriage | 169 | Configure |
| SRS35C-4BS | 35 | 4 Roller Carriage | 169 | Configure |
| SRS35C-4CS | 35 | 4 Roller Carriage | 169 | Configure |
| SRS35C-5AS | 35 | 5 Roller Carriage | 169 | Configure |
| SRS35C-5BS | 35 | 5 Roller Carriage | 169 | Configure |
| SRS43C-3AS* | 43 | 3 Roller Carriage | 134 | Shop Now |
| SRS43C-4AS | 43 | 4 Roller Carriage | 208 | Configure |
| SRS43C-4BS | 43 | 4 Roller Carriage | 208 | Configure |
| SRS43C-4CS | 43 | 4 Roller Carriage | 208 | Shop Now |
| SRS43C-5AS | 43 | 5 Roller Carriage | 208 | Configure |
| SRS43C-5BS | 43 | 5 Roller Carriage | 208 | Configure |
* indicates an in stock option. All other products have a 6 week lead time
Steel Rail Plus Linear Guide - SRP Rail and SRP Carriage
| Part Number | Width (mm) | Item | Rail Length (mm) | Mounting Hole Type | |
|---|---|---|---|---|---|
| SRP28R-0250C* | 28 | Polished Rail | 250 | Counterbore | Shop Now |
| SRP28R-0500C* | 28 | Polished Rail | 500 | Counterbore | Shop Now |
| SRP28R-1000C* | 28 | Polished Rail | 1,000 | Counterbore | Shop Now |
| SRP28R-0250V | 28 | Polished Rail | 250 | Countersunk | Configure |
| SRP28R-0500V | 28 | Polished Rail | 500 | Countersunk | Configure |
| SRP28R-1000V | 28 | Polished Rail | 1,000 | Countersunk | Configure |
| SRP43R-0250C* | 43 | Polished Rail | 250 | Counterbore | Shop Now |
| SRP43R-0500C* | 43 | Polished Rail | 500 | Counterbore | Shop Now |
| SRP43R-1000C* | 43 | Polished Rail | 1,000 | Counterbore | Shop Now |
| SRP43R-0250V | 43 | Polished Rail | 250 | Countersunk | Configure |
| SRP43R-0500V | 43 | Polished Rail | 500 | Countersunk | Shop Now |
| SRP43R-1000V | 43 | Polished Rail | 1,000 | Countersunk | Configure |
| Part Number | Width (mm) | Item | Carriage Length (mm) | |
|---|---|---|---|---|
| SRP28C-3AG* | 28 | 3 Roller Guiding Carriage | 102 | Shop Now |
| SRP28C-4AG | 28 | 4 Roller Guiding Carriage | 125 | Configure |
| SRP28C-4BG | 28 | 4 Roller Guiding Carriage | 125 | Configure |
| SRP28C-05G | 28 | 5 Roller Guiding Carriage | 148 | Shop Now |
| SRP28C-6AG | 28 | 6 Roller Guiding Carriage | 175 | Configure |
| SRP28C-6BG | 28 | 6 Roller Guiding Carriage | 175 | Configure |
| SRP28C-3AR | 28 | 3 Roller Rotating Carriage | 102 | Configure |
| SRP28C-4AR | 28 | 4 Roller Rotating Carriage | 125 | Configure |
| SRP28C-4BR | 28 | 4 Roller Rotating Carriage | 125 | Configure |
| SRP28C-05R | 28 | 5 Roller Rotating Carriage | 148 | Configure |
| SRP28C-6AR | 28 | 6 Roller Rotating Carriage | 175 | Configure |
| SRP28C-6BR | 28 | 6 Roller Rotating Carriage | 175 | Configure |
| SRP28C-03F | 28 | 3 Roller Floating Carriage | 102 | Configure |
| SRP28C-4AF | 28 | 4 Roller Floating Carriage | 125 | Configure |
| SRP28C-4BF | 28 | 4 Roller Floating Carriage | 125 | Configure |
| SRP28C-05F | 28 | 5 Roller Floating Carriage | 148 | Configure |
| SRP28C-6AF | 28 | 6 Roller Floating Carriage | 175 | Configure |
| SRP28C-6BF | 28 | 6 Roller Floating Carriage | 175 | Configure |
| SRP43C-3AG | 43 | 3 Roller Guiding Carriage | 149 | Shop Now |
| SRP43C-4AG | 43 | 4 Roller Guiding Carriage | 187 | Configure |
| SRP43C-4BG | 43 | 4 Roller Guiding Carriage | 187 | Configure |
| SRP43C-05G | 43 | 5 Roller Guiding Carriage | 220 | Configure |
| SRP43C-6AG | 43 | 6 Roller Guiding Carriage | 262 | Configure |
| SRP43C-6BG | 43 | 6 Roller Guiding Carriage | 262 | Configure |
| SRP43C-3AR | 43 | 3 Roller Rotating Carriage | 149 | Configure |
| SRP43C-4AR | 43 | 4 Roller Rotating Carriage | 187 | Configure |
| SRP43C-4BR | 43 | 4 Roller Rotating Carriage | 187 | Configure |
| SRP43C-05R | 43 | 5 Roller Rotating Carriage | 220 | Configure |
| SRP43C-6AR | 43 | 6 Roller Rotating Carriage | 262 | Configure |
| SRP43C-6BR | 43 | 6 Roller Rotating Carriage | 262 | Configure |
| SRP43C-3AF | 43 | 3 Roller Floating Carriage | 149 | Shop Now |
| SRP43C-4AF | 43 | 4 Roller Floating Carriage | 187 | Configure |
| SRP43C-4BF | 43 | 4 Roller Floating Carriage | 187 | Configure |
| SRP43C-05F | 43 | 5 Roller Floating Carriage | 220 | Configure |
| SRP43C-6AF | 43 | 6 Roller Floating Carriage | 262 | Configure |
| SRP43C-6BF | 43 | 6 Roller Floating Carriage | 262 | Configure |
* indicates an in stock option. All other products have a 6-week lead time
