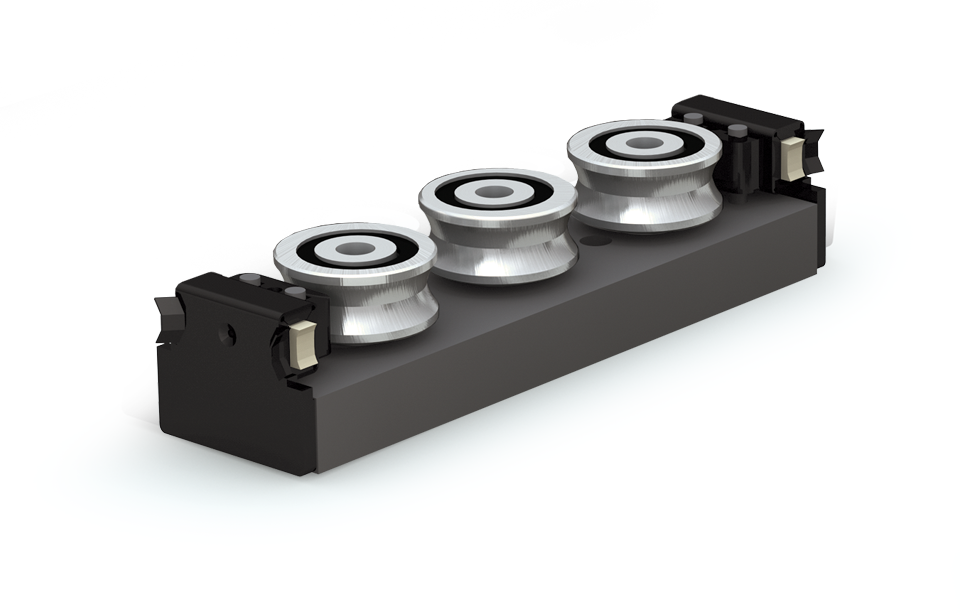

Linear Guide Guiding Carriage – Steel Rail Plus SRP28C-3AG 28 mm Width / 3 Adjustable Preloaded Rollers
Floating cam roller linear guide carriage for 28 mm wide Steel Rail Plus SRP28R linear rails with 3 roller bearings that can be adjusted for pre-load. Guiding carriages are equipped with rollers that have two contact points on the guide rail providing full constraint in both axial and radial directions. Use this carriage in parallel with the same sized floating carriage (SRP28C-3AF) to overcome misalignment in parallel rail applications.
- Carriage only – width 28 mm
- Adjustable Preloaded Guiding Rollers
- Compatible with rail part number SRP28R
- High Strength Aluminum Carriage / Steel Cam Rollers
- Carriage configurations with 4, 5, and 6 rollers are available via the configurator
- Oil-soaked felt wipers keep the rails clean and lubricated
- Built-in scraper blade eliminates debris and contaminants from the rail surface
- Guiding carriages used in conjunction with floating carriages (SRP28C-3AF) overcome misalignment in parallel rails
