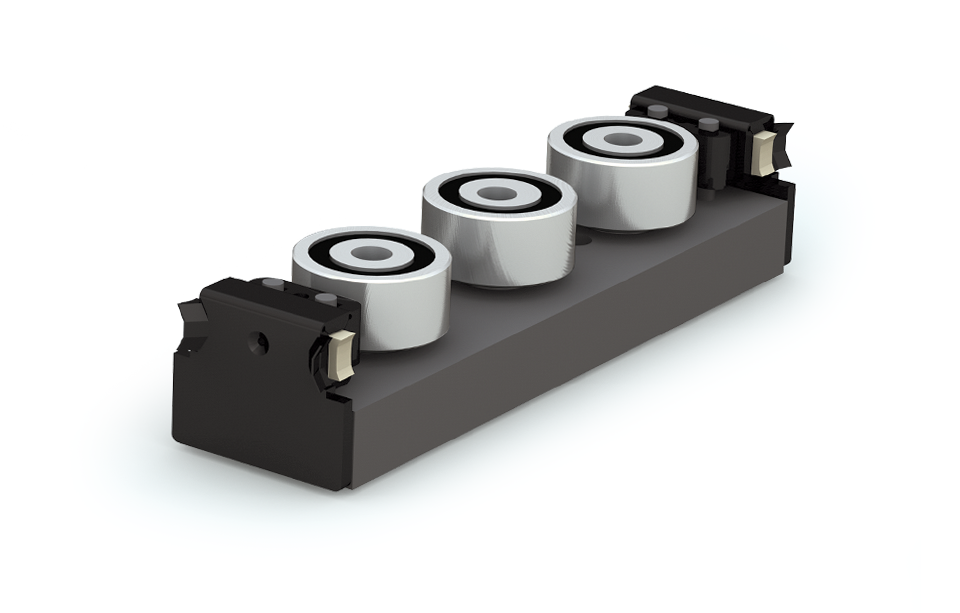

Linear Guide Floating Carriage – Steel Rail Plus SRP43C-3AF 43mm Width / 3 Adjustable Preloaded Rollers
Floating cam roller linear guide carriage for 43mm wide Steel Rail Plus SRP43R linear rails with 3 double bearing rollers that can be adjusted for pre-load. Floating carriages are equipped with rollers that only contacts the highest point of the guide rail providing unrestricted movement axially and constraining movement radially. Use this carriage in parallel with the same sized guiding carriage (SRP43C-3AG) to overcome misalignment in parallel rail applications.
- Carriage only – width 43 mm
- Adjustable Preloaded Floating Rollers
- Compatible with rail part number SRP43R
- High Strength Aluminum Carriage / Steel Cam Rollers
- Carriage configurations with 4, 5, and 6 rollers are available via the configurator
- Oil-soaked felt wipers keep the rails clean and lubricated
- Built-in scraper blade eliminates debris and contaminants from the rail surface
- Floating carriages used in conjunction with guiding carriages (SRP43C-3AG) overcome misalignment in parallel rails
- Floating carriages used in conjunction with rotating carriages (SRP43C-3AR available for order in the configurator) overcome misalignment and angle errors in mounting surfaces of parallel rails
Customers also purchased
Floating cam roller linear guide carriage for 43mm wide Steel Rail Plus SRP43R linear rails with 3 roller bearings that can be adjusted for pre-load. Guiding carriages are equipped with rollers that have two contact points on the guide rail providing full constraint in both axial and radial directions. Use..
$281.82

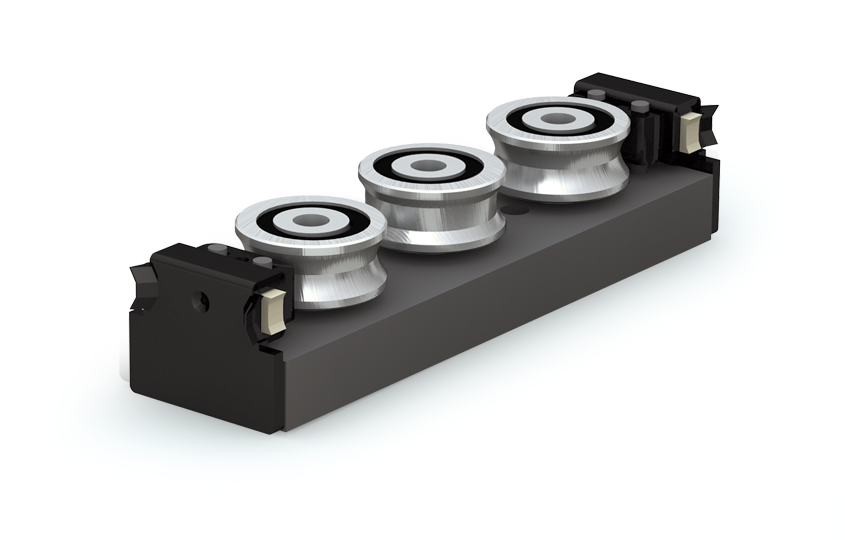

Rotating cam roller linear guide carriage for 43mm wide Steel Rail Plus SRP43R linear rails with 3 roller bearings that can be adjusted for pre-load. Rotating carriages are equipped with two roller types: one with two contact points and one that only contacts the highest point on the guide rail...
$281.82

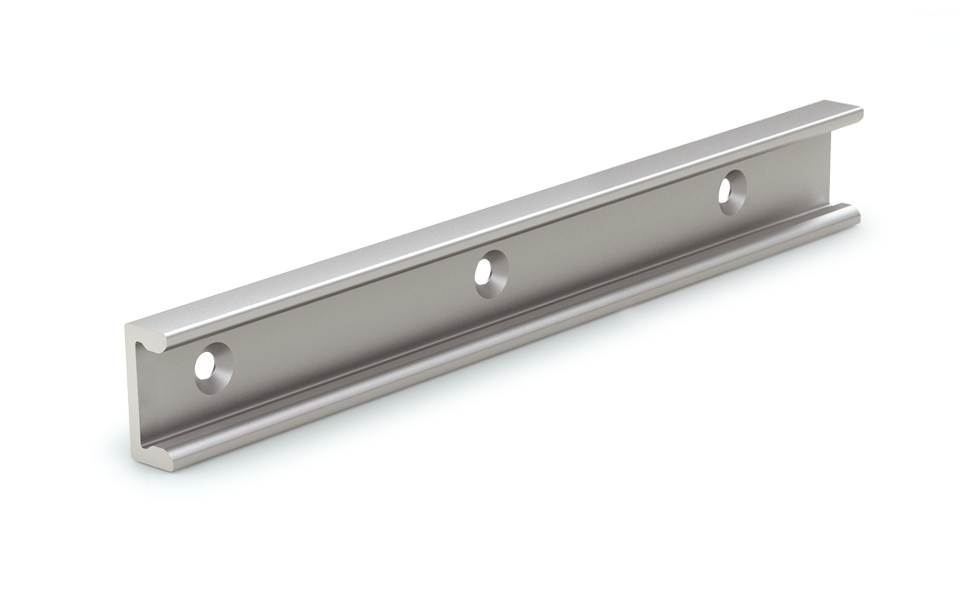

Linear Rail, 43 mm wide and 250 mm long, from the Steel Rail Plus series of linear guides, features a U-shaped polished, steel body. Designed for compact setups in automation and robotics, it includes pre-drilled mounting holes and is compatible with SRP43 carriages. Linear Rail Only Compatible with carriage part..
