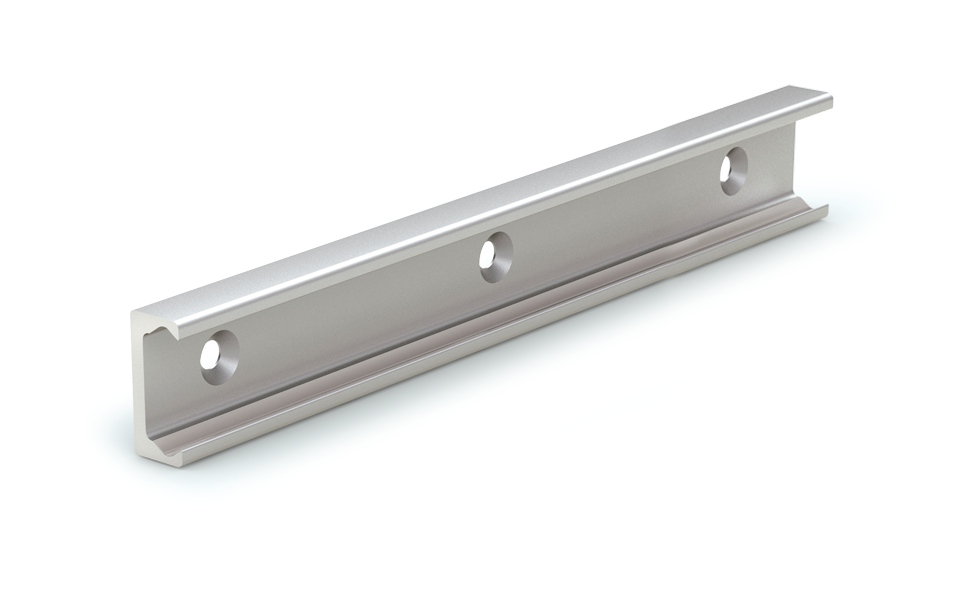

Steel Linear Guide Rail SRS43R-1000C Steel Rail Standard 43x1000mm w/ Counterbore Mounting
Linear Rail, 43mm wide and 1,000mm long, from the Steel Rail Standard series of linear guides, features a U-shaped ground, steel body. Designed for compact setups in automation and robotics, it includes pre-drilled mounting holes and is compatible with SRS43 carriages.
- Linear Rail Only
- Compatible with carriage part numbers SRS43C
- Pre-drilled mounting holes every 80 mm; holes centered on rail length if Y is not specified
- Mounting holes fit thin head torx fasteners P/N 6101552 (sold separately)
- Rails with countersunk mounting holes are configurable via the configurator
- Continuous rail lengths up to 3,200 mm available via the configurator
Available Lengths:
