Commercial Rail Linear Guide

Shop
Quote
Web Catalog
Download and View Catalog PDF Download PDF

Sturdy, Low-Cost Linear Motion

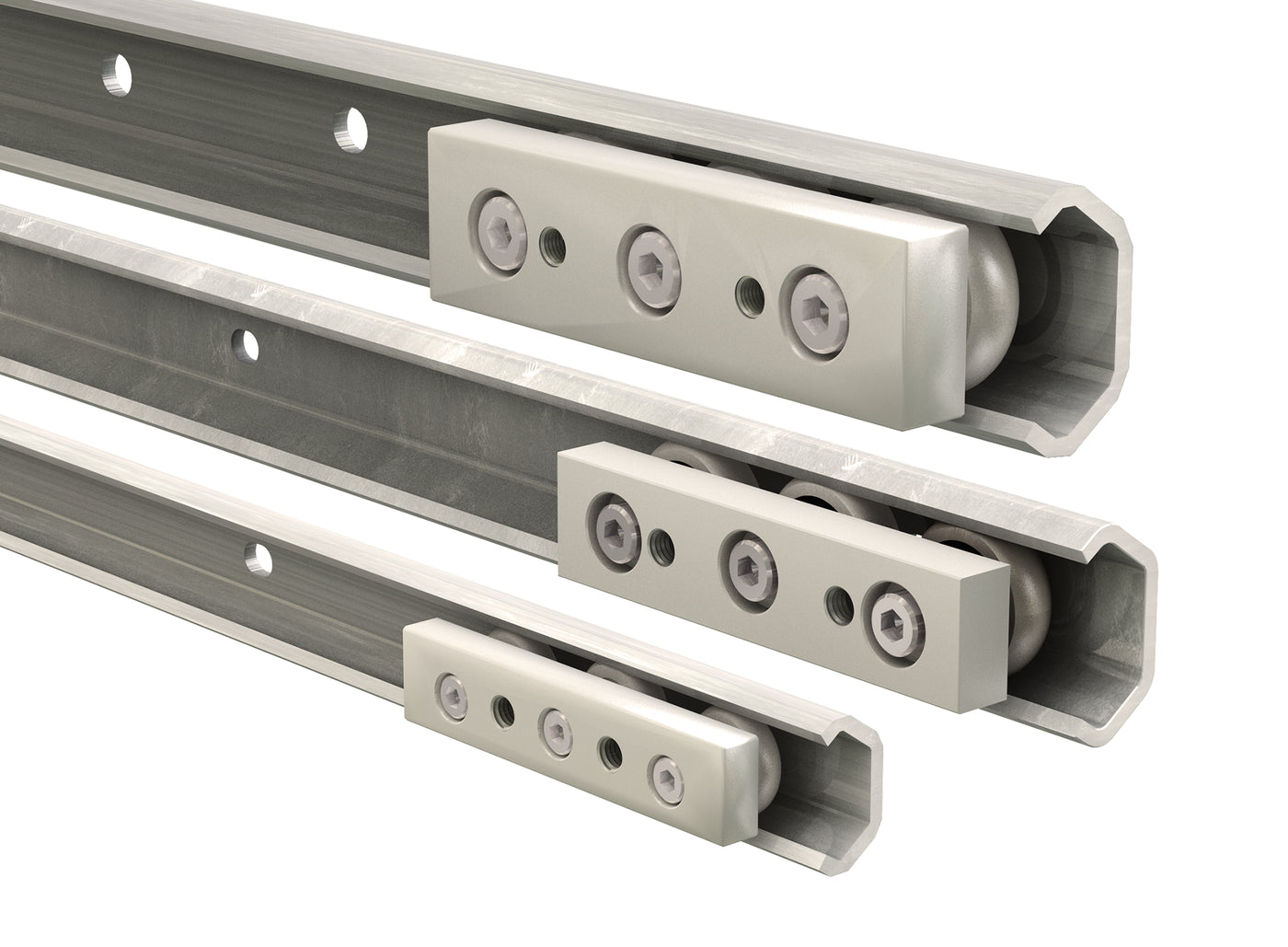

Linear guides of the Commercial Rail series feature a zinc-plated steel linear rail and anodized 6061-T6 aluminum slider body, providing a cost-effective, high-load-capacity solution with excellent corrosion resistance. Its roll-formed rails and adjustable pre-load design ensure flexible integration for applications in automation, packaging, material handling, environmental, energy, HVAC, medical, and office equipment.

NOTE: Rails and Carriages must be ordered separately.

Commercial Rail Linear Guide Performance Benefits

  • Precision formed rails available in zinc plated carbon steel sheet
  • Transfer speeds up to 1.5 m/s (59 in/s)
  • Withstands temperatures up to 100°C (212°F)
  • Load capability up to 1,330 N (298 lbs)
  • Available in lengths up to 6 m (19 ft)
  • Machined anodized aluminum slider body with standard mounting holes
  • Sliders are available with sealed 52100 steel or 440 stainless steel wheels
  • Sliders include standard adjustable pre-load feature

Shop Commercial Rail Linear Guides

Shop our standard off-the-shelf offerings or use the configurator to customize the perfect solution for your linear motion application.

Name Size (mm) Item Compatible Carriage (Order Separate) Shop Link
6101225 14 Wrench CR45MCA Shop Now
6101226 10 Wrench CR30MCA Shop Now
6101227 6 Wrench CR20MCA Shop Now
Name Width (mm) Item Carriage Length (mm) Compatible Rail (Order Separate) Shop Link
CR20MCA 12.7 Carriage 60 CR20R Shop Now
CR30MCA 19.1 Carriage 80 CR30R Shop Now
CR45MCA 31.8 Carriage 120 CR45R Shop Now
Name Width (mm) Item Rail Length (mm) Compatible Carriage (Order Separate) Shop Link
CR20R-0250 20 Rail 2,500 CR20MCA Shop Now
CR20R-0500 20 Rail 5,000 CR20MCA Shop Now
CR20R-0750 20 Rail 7,500 CR20MCA Shop Now
CR20R-1000 20 Rail 10,000 CR20MCA Shop Now
CR20R-2500 20 Rail 25,000 CR20MCA Shop Now
CR30R-0250 30 Rail 2,500 CR30MCA Shop Now
CR30R-0500 30 Rail 5,000 CR30MCA Shop Now
CR30R-1000 30 Rail 10,000 CR30MCA Shop Now
CR30R-2000 30 Rail 20,000 CR30MCA Shop Now
CR30R-2500 30 Rail 25,000 CR30MCA Shop Now
CR45R-0250 45.70 Rail 2,500 CR45MCA Shop Now
CR45R-0500 45.70 Rail 5,000 CR45MCA Shop Now
CR45R-0750 45.70 Rail 7,500 CR45MCA Shop Now
CR45R-1000 45.70 Rail 10,000 CR45MCA Shop Now
CR45R-2000 45.70 Rail 20,000 CR45MCA Shop Now
CR45R-2500 45.70 Rail 25,000 CR45MCA Shop Now
