Steel Linear Rail CR20R-1000 Commercial Rail Width: 20mm Length: 1000mm
- Length: 1000 mm (39.37 in)
- Rail Width: 20 mm (0.79 in)
- Rail Height: 10 mm (0.39 in)
- Mounting Hole Pitch: 80 mm (3.15 in)
- Material: Zinc-plated carbon steel

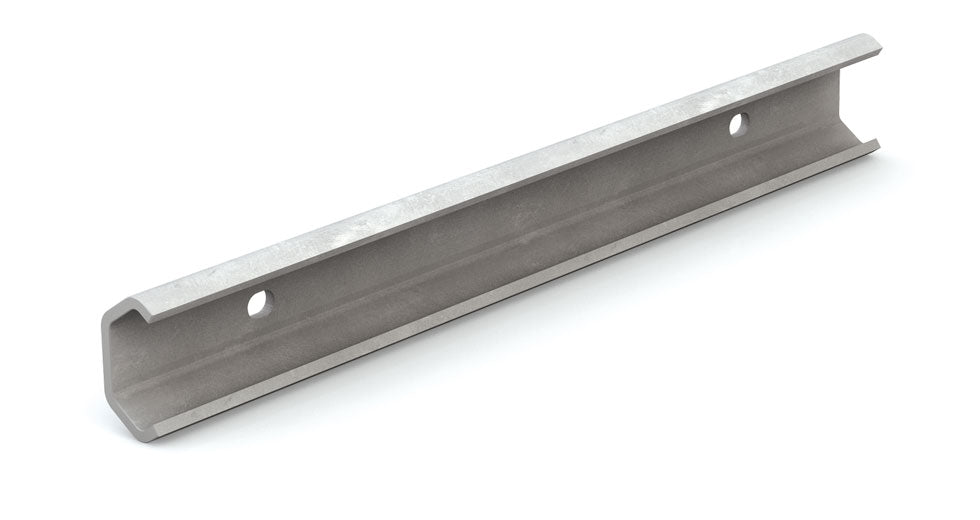

Linear rail, 20mm wide and 1000mm long, with a U-shaped roll-formed steel profile and zinc plating for corrosion resistance, from the cost-effective Commercial Rail series. Compatible with the CR20MCA carriage, which uses three hardened chrome steel roller bearings for precise motion.
Linear rail, 20mm wide and 1000mm long, with a U-shaped roll-formed steel profile and zinc plating for corrosion resistance, from the cost-effective Commercial Rail series. Compatible with the CR20MCA carriage, which uses three hardened chrome steel roller bearings for precise motion.
- Linear Rail Only - Carriage part number CR20MCA sold separately
- Low cost and corrosion-resistant
- Requires a constant grease layer; reapply every 50,000 cycles
- Custom cut up to 6 meters; refer to Configure CAD & Quote below for details
- For stainless steel rails, visit the configurator
Lengths:
Compatible Products

Linear Rail Guide Carriage CR20MCA Commercial Rail Slider, Width: 20mm with 3 Steel Roller Bearings
Linear Guide Carriage of 20mm width and 60mm length, matching linear rail part number CR20.

Wrench for 20mm Commercial Rail Linear Guide Roller Carriage CR20MCA - 6101227
Wrench for the 20mm wide Linear Guide Roller Carriage of the Commercial Rail Series - Compatible Carriage: CR20MCA - To adjust the center roller, use an Allen wrench to loosen the screw while stabilizing the roller with an open-end wrench.
