Steel Linear Rail CR30R-1000 Commercial Rail Width: 30mm Length: 1000mm
- Length: 1000 mm (39.37 in)
- Rail Width: 30 mm (1.18 in)
- Rail Height: 15 mm (0.59 in)
- Mounting Hole Pitch: 80 mm (3.15 in)
- Material: Zinc-plated carbon steel

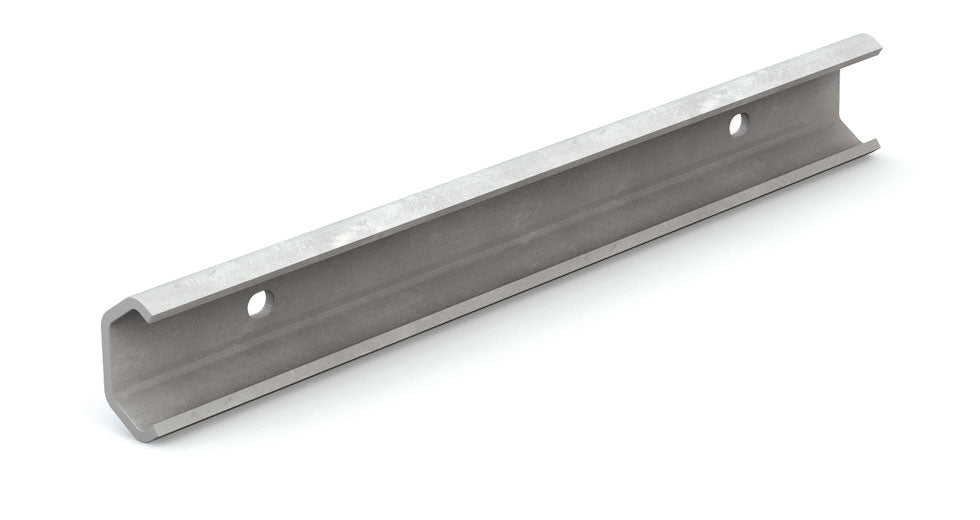

Linear rail, 30mm wide and 1000mm long, from PBC Linear’s Commercial Rail series, featuring a U-shaped, roll-formed steel sheet design with zinc plating for corrosion resistance. This cost-effective rail is compatible with the CR30MCA carriage, which uses three hardened chrome steel roller bearings for smooth, precise motion.
Linear rail, 30mm wide and 1000mm long, from PBC Linear’s Commercial Rail series, featuring a U-shaped, roll-formed steel sheet design with zinc plating for corrosion resistance. This cost-effective rail is compatible with the CR30MCA carriage, which uses three hardened chrome steel roller bearings for smooth, precise motion.
- Linear Rail Only - Carriage part number CR30MCA sold separately
- Low cost and corrosion-resistant
- Requires a constant grease layer; reapply every 50,000 cycles
- Custom cut up to 6 meters; refer to Configure CAD & Quote below for details
- For stainless steel rails, visit the configurator
Lengths:
