Steel Linear Rail CR30R-2000 Commercial Rail Width: 30mm Length: 2000mm
- Length: 2000 mm (78.74 in)
- Rail Width: 30 mm (1.18 in)
- Rail Height: 15 mm (0.59 in)
- Mounting Hole Pitch: 80 mm (3.15 in)
- Material: Zinc-plated carbon steel

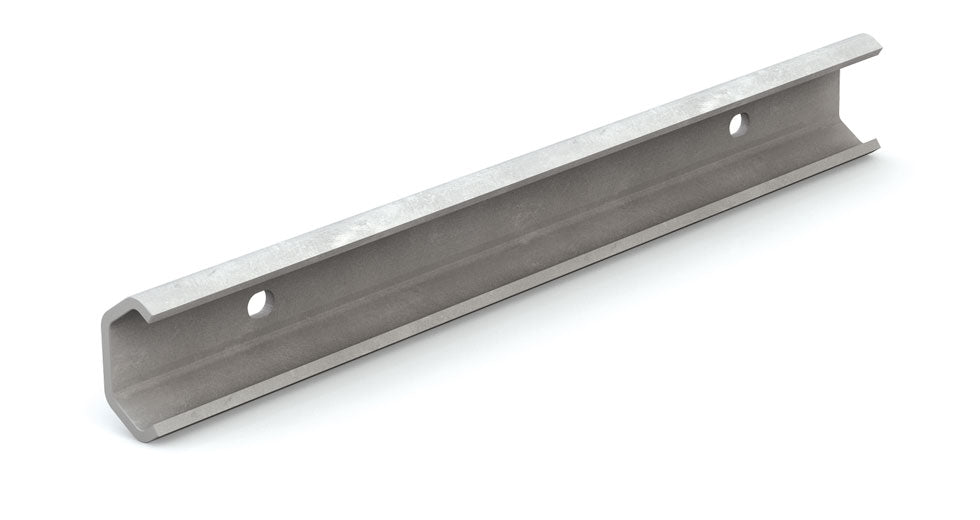

Linear rail, 30mm wide and 2000mm long, with a U-shaped roll-formed steel profile and zinc plating for corrosion resistance, from the cost-effective Commercial Rail series. Compatible with the CR30MCA carriage, which uses three hardened chrome steel roller bearings for precise motion.
Linear rail, 30mm wide and 2000mm long, with a U-shaped roll-formed steel profile and zinc plating for corrosion resistance, from the cost-effective Commercial Rail series. Compatible with the CR30MCA carriage, which uses three hardened chrome steel roller bearings for precise motion.
- Linear Rail Only - Carriage part number CR30MCA sold separately
- Low cost and corrosion-resistant
- Requires a constant grease layer; reapply every 50,000 cycles
- Custom cut up to 6 meters; refer to Configure CAD & Quote below for details
- For stainless steel rails, visit the configurator
Lengths:
Compatible Products

Linear Rail Guide Carriage CR30MCA Commerical Rail Slider, Width 30mm with 3 Steel Roller Bearings
Linear Guide Carriage of 30mm width and 80mm length, matching linear rail part number CR30.

Wrench for 30mm Commercial Rail Linear Guide Roller Carriage CR30MCA - 6101226
Wrench for the 30mm wide Linear Guide Roller Carriage of the Commercial Rail Series - Compatible Carriage: CR30MCA - To adjust the center roller, use an Allen wrench to loosen the screw while stabilizing the roller with an open-end wrench.
