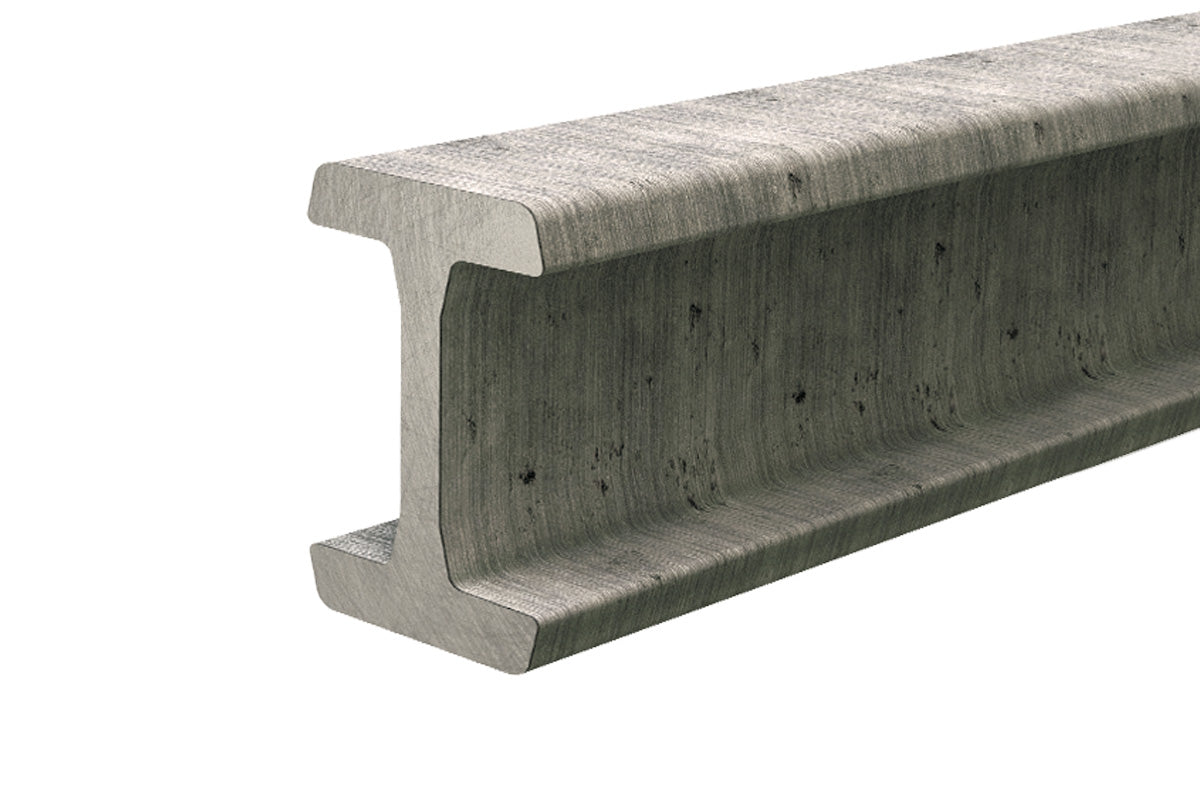

Heavy Duty Linear Rail HVRI-07-1000 - Steel I-Channel 1000mm for Hevi-Rail Linear Guide Roller HVB-055

I-Channel Heavy Duty Linear Rail made of steel and 1000mm long, for roller bearings HVB-055 and HVBEA-455 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for durability and even force dispersion over a lifetime of continuous use.

  • Linear Rail only
  • Compatible with wheel part number HVB-055 and HVBEA-455
  • I-Channel Rail
  • Hevi-Rail linear guides offer easily interchangeable components

PDF View Catalog

3D Models

TypeFileFormatLink
3dHVRI-07-1000.htmlhtmlView
cadHVRI-07-1000.stepSTEP AP214Download
$176.39
Configure Custom Features
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
43.31 lbs0 in39.37 in0 in
