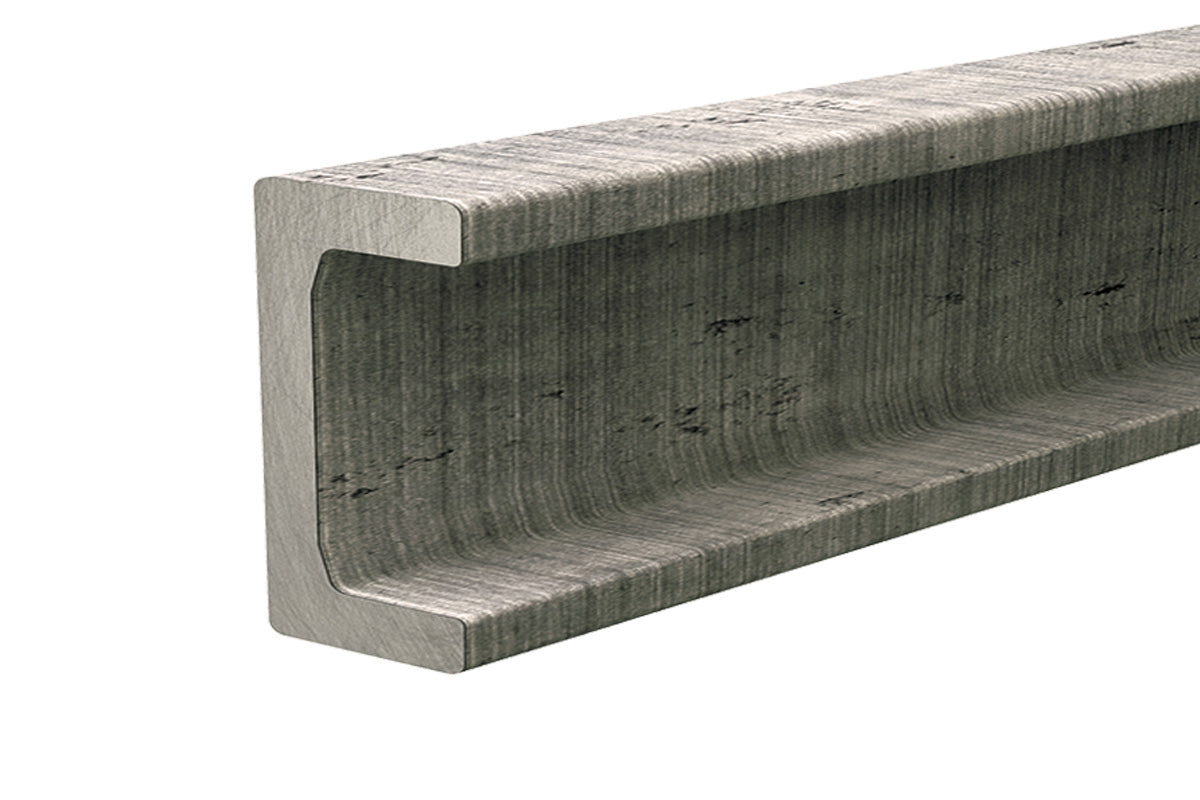

Heavy Duty Linear Rail HVR-6-2000 - U-Channel 2000mm for Hevi-Rail Linear Guide Roller HVB-063

U-Channel Heavy Duty Linear Rail made of steel and 2000mm long, for roller bearings HVB-063 and HVBEA-463 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for even force dispersion.

  • Linear Rail only
  • Compatible with wheel part number HVB-063 and HVBEA-463
  • 201.5mm rail width
  • U-Channel Rail
  • Hevi-Rail linear guides offer easily interchangeable components

PDF View Catalog

3D Models

TypeFileFormatLink
3dHVR-6-2000.htmlhtmlView
cadHVR-6-2000.stepSTEP AP214Download
$793.74
Configure Custom Features
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
230.71 lbs0 in78.74 in0 in
