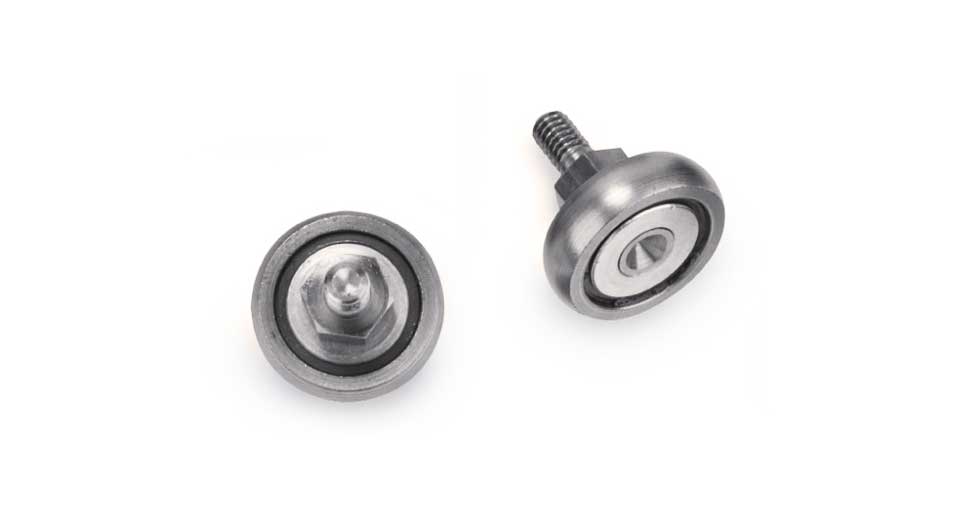

Hardened Crown Roller Bearing PAC3016M with Metric Threading

Hardened Crown Roller Bearing PAC3016M with Metric Threading

Product Type Hardened Crown Roller Bearing with metric thread
Part Number PAC3016
Length Fits any length steel rail PAC2245 or PAC2247.
Note PAC2245 linear steel rail is unpainted & PAC2247 linear steel rail has a black powder coat finish

PDF View Catalog

3D Models

TypeFileFormatLink
3dPAC3016M.htmlhtmlView
cadPAC3016M.igsIGES 5.3Download
cadPAC3016M.x_tSolidWorks >=2006Download
$21.83
Configure Custom Features
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
1 lbs1.44 in0 in1.36 in
