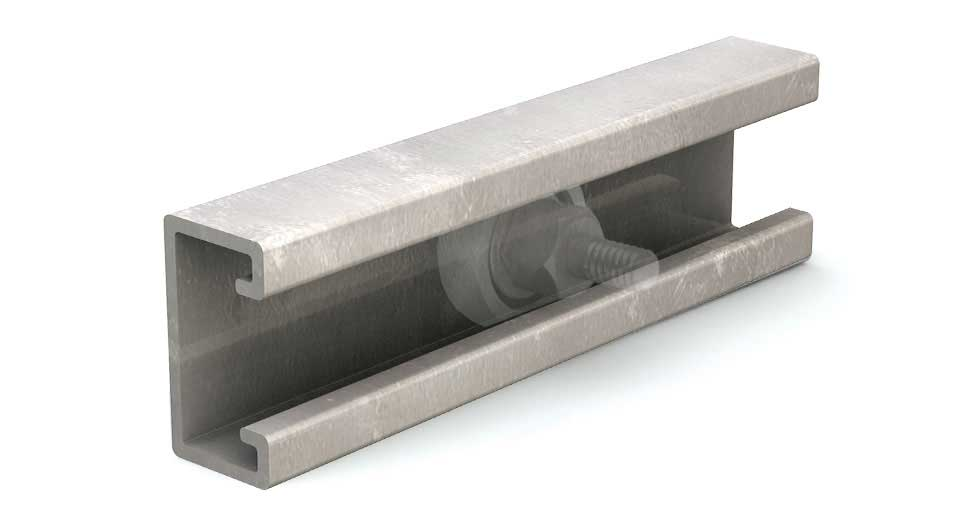

Steel Linear Rail for Hardened Crown Rollers PAC2245-024.000 - 24″ Length Unpainted

Steel linear rail for PAC3016 or PAC3016M hardened crown rollers.
Part Number PAC2245-024-000
Product Type Steel Linear Rail  - unpainted
Length 024"

PDF View Catalog

3D Models

TypeFileFormatLink
3dPAC2245-024.htmlhtmlView
cadPAC2245-024.x_tSolidWorks >=2006Download
$52.35
Configure Custom Features
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
1 lbs0.81 in24 in1.63 in
