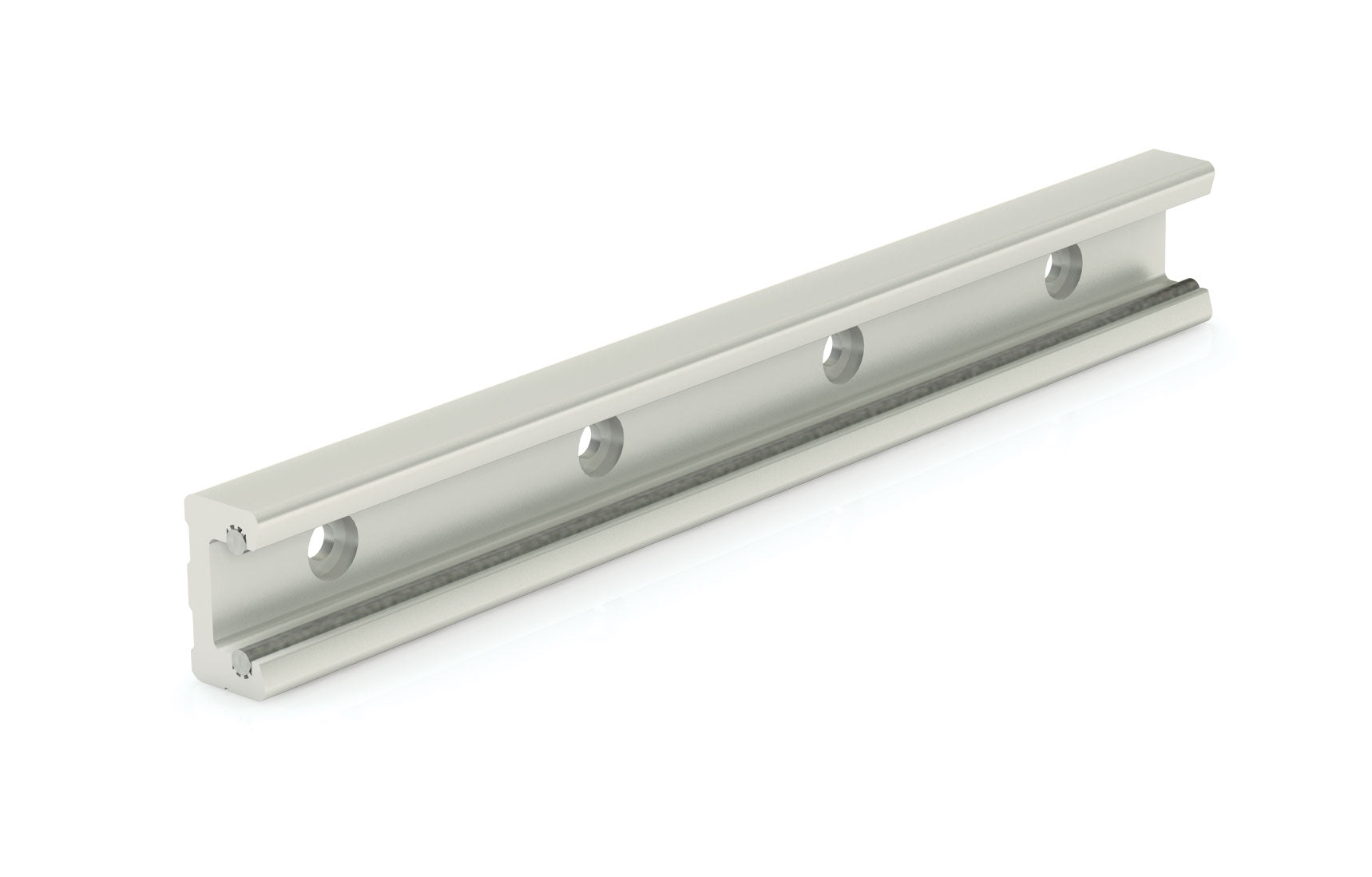

Linear Guide Rail - Stainless Steel Rods Redi-Rail RR30CR-0250 Width: 30mm Length: 250mm

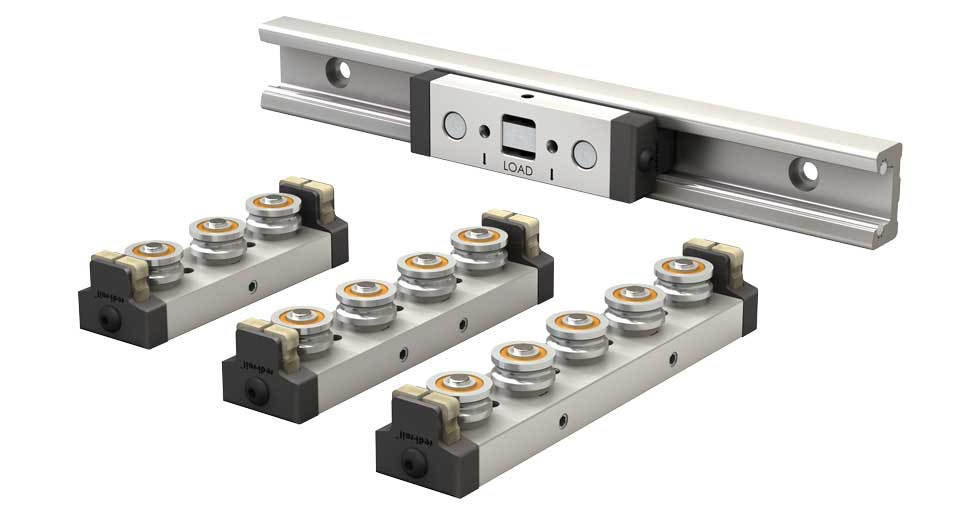

Linear Rail with stainless steel raceways, 30mm wide and 250mm long, from the Redi-Rail series of linear guides. Features a U-shaped aluminum alloy body with gothic archways for the raceways which are compatible with the RRS30A-SS carriage and its stainless steel rollers. Designed for compact setups in automation and robotics, it includes pre-drilled mounting holes.
- Linear Rail Only - Stainless Steel Raceways
- Compatible with carriage part number RRS30A-xx-SS
- Pre-drilled for mounting; holes centered on rail length if Y is not specified
- Mounting holes fit BHCS (Button Head Cap Screws, sold separately)
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | RR30CR-0250.x_t | SolidWorks >=2006 | Download |
