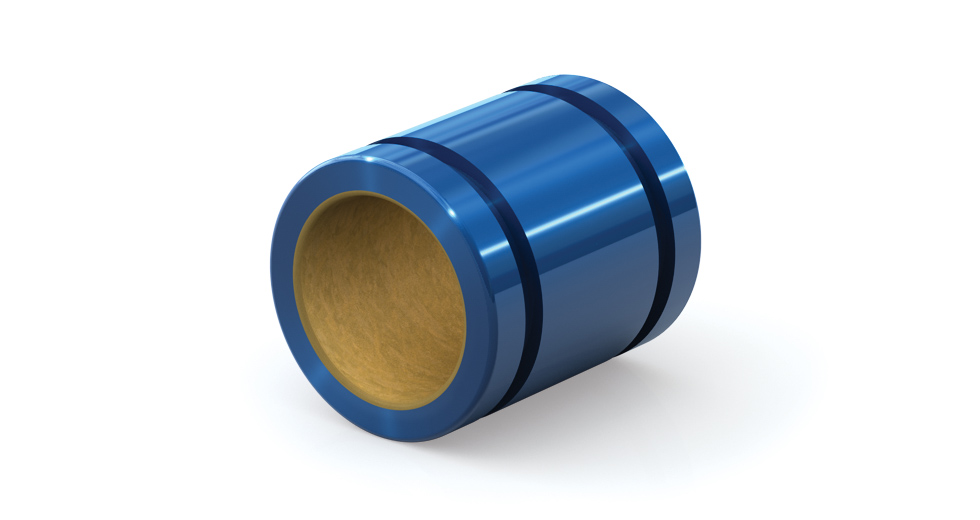

Thin Wall Plain Linear Bearing FMT25 25mm Closed
Thin Wall Plain Linear Bearing with a precision 25mm ID and 35mm OD, ISO Metric, featuring a self-lubricating FrelonGOLD® liner for maintenance-free, oil-free operation in harsh conditions including extreme temperatures, dirt, vibration and shock. The precision ID provides 0.0005" running clearance per side. Static load capacity is 20,601 N. The bearing also performs well in welding environments, where weld splatter can be wiped away rather than adhering to the bearing surface.
- Closed Thin Wall Plain Linear Bearing
- 25mm ID × 35mm OD
- Precision running clearance: 0.0005" per side
- Static load capacity: 20,601 N
- Self-lubricating FrelonGOLD® liner for maintenance-free, oil-free operation
- Anodized aluminum outer shell with straight OD
- Designed for use with end-supported shafting
- Weld splatter wipes away rather than adhering to the bearing surface
- Interchangeable with compact linear ball bearings and some bronze bushings
- ISO metric FG Series ID sizes: 6mm to 50mm
- Temperature rating: -400°F to +400°F (-240°C to +204°C)
- Maximum speed: up to 8m/s (315in/s)
- Shaft lengths up to 12ft
- Vibration damping helps provide smooth, quiet operation
- Use with hardened 1060 / Simplicity 60 Plus™ steel, hardened 440 stainless steel, or ceramic-coated aluminum shafting
- For additional ID clearance, use FGC25 with 0.0015" running clearance per side
Available Sizes:
Product Dimensions
| Approx. Weight | width | length | height |
|---|---|---|---|
| 0.1 lbs | 1.38 in | 1.57 in | 1.38 in |
Additional Dimensions
