Linear Bearings - Thin Wall, Plain, Closed

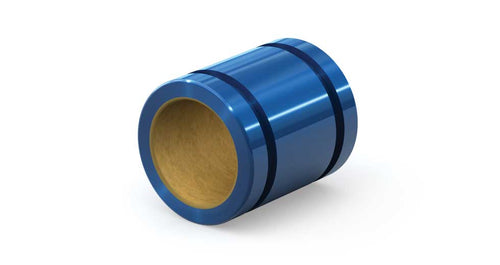

The Simplicity Thin Wall Plain Linear Bearings offer the same construction and smooth operation as the standard Simplicity Linear Bearings, but in a more compact package. In this category, we present the Closed versions.
- Only available in metric sizes
- More About Linear Bearings - Thin Wall, Plain, Closed
Thin Wall Plain Linear Bearing with a precision 50mm ID (inner diameter), featuring a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Closed - ISO Metric Only Precision running clearance 0.0005" per side Anodized aluminum outer shell - Straight outer diameter Designed for..
$117.77
Thin Wall Plain Linear Bearing with a precision 25mm ID (inner diameter), featuring a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Closed - ISO Metric Only Precision running clearance 0.0005" per side Anodized aluminum outer shell - Straight outer diameter Designed for..
$34.96
Thin Wall Plain Linear Bearing with a precision 20mm ID (inner diameter), featuring a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Closed - ISO Metric Only Precision running clearance 0.0005" per side Anodized aluminum outer shell - Straight outer diameter Designed for..
$18.91
Thin Wall Plain Linear Bearing with a precision 16mm ID (inner diameter), featuring a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Closed - ISO Metric Only Precision running clearance 0.0005" per side Anodized aluminum outer shell - Straight outer diameter Designed for..
$18.55
Thin Wall Plain Linear Bearing with a precision 12mm ID (inner diameter), featuring a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Closed - ISO Metric Only Precision running clearance 0.0005" per side Anodized aluminum outer shell - Straight outer diameter Designed for..
$16.62
Thin Wall Plain Linear Bearing with a compensated 40mm ID (inner diameter), featuring a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. The compensated running clearance provides more clearance between the lined interior and shaft allowing the plain bearing to perform like a..
$67.37
Thin Wall Plain Linear Bearing with an 8mm ID (inner diameter) ISO Metric Closed Precision running clearance, 0.0005" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with an anodized aluminum outer shell Designed for use with end-supported shafting Interchangeable with compact linear ball bearings and some bronze bushings Product..
$14.38
Thin Wall Plain Linear Bearing with a compensated 50mm ID (inner diameter), featuring a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. The compensated running clearance provides more clearance between the bearing interior and shaft allowing the bearing to perform like a linear..
$117.77
Thin Wall Plain Linear Bearing with a compensated 20mm ID (inner diameter), featuring a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. The compensated running clearance provides more clearance between the lined interior and shaft allowing the plain bearing to perform like a..
$18.91
Thin Wall Plain Linear Bearing with a compensated 25mm ID (inner diameter), featuring a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. The compensated running clearance provides more clearance between the lined interior and shaft allowing the plain bearing to perform like a..
$34.96
Thin Wall Plain Linear Bearing with a compensated 14mm ID (inner diameter), featuring a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. The compensated running clearance provides more clearance between the lined interior and shaft allowing the plain bearing to perform like a..
$18.55
Thin Wall Plain Linear Bearing with a compensated 40mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side Straight outer diameter Self Lubricating Simplicity Frelon..
$67.37
Thin Wall Plain Linear Bearing FGC35 35mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with..
$67.37
Thin Wall Plain Linear Bearing with a compensated 50mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Compensated running clearance, 0.0015" per side Straight outer diameter Self Lubricating Simplicity Frelon Gold® liner..
$117.77
Thin Wall Plain Linear Bearing - Compensated 30mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with..
$58.72
Thin Wall Plain Linear Bearing. Compensated 25mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$34.96
Thin Wall Plain Linear Bearing. Compensated 16mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$18.55
Thin Wall Plain Linear Bearing. Compensated 20mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$18.91
Thin Wall Plain Linear Bearing. Compensated 8mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$14.38
Thin Wall Plain Linear Bearing. Compensated 12mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$16.62
The Simplicity Thin Wall Plain Linear Bearings offer the same construction and smooth operation as the standard Simplicity Linear Bearings, but in a more compact package. In this category, we present the Closed versions.
- Only available in metric sizes
- Designed for use with end-supported shafting
- Interchangeable with compact linear ball bearings and some bronze bushings
- ID sizes: 6 mm to 50 mm
- Static Load Capacities up to 92 kN (20,000 lbs)
- Choose between standard ID running clearance (0.0005" per side) and compensated ID running clearance (0.0015" per side)
Further Specifications
- Self-Lubricating Bearing Liner: FrelonGOLD® is standard;
- Optional liners include Frelon® J & Frelon® W
- Temperature Rating: -400°F/+400°F or -240°C/204°C
- Maximum Speed: Up to 8 m/s (315 in/s)
- Shaft Lengths: Up to 12 feet
- Shell Material: Aluminum
- Self-Lubricating: Provides oil-free operation
- Vibration Damping: Ensures smooth and quiet operation
