Simplicity Plain Linear Bearings

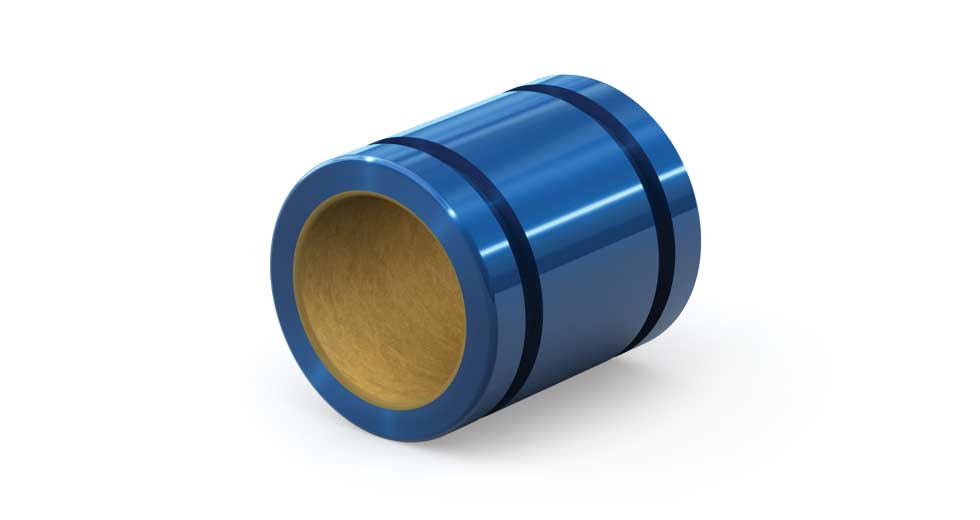

Plain Linear Bearings from PBC Linear®, featuring the self-lubricating FrelonGOLD® PTFE-based liner, which minimizes friction and wear, eliminates external lubrication needs, and outperforms in harsh, hot, or dirty environments. Available as stand-alone regular linear bearings with straight or crowned anodized aluminum shells (open or closed), as straight or flanged sleeve bearings, inside standard-sized or double-sized pillow blocks (open or closed), or as standard or double-sized flanged variants. Optional Frelon® J liners provide resistance to corrosive chemicals, while Frelon® W liners ensure FDA compliance. These bearings support rotary, linear, or oscillating motion, with precision or compensated running clearances. Offered in Inch, ISO Metric, or JIS Metric ID series, they deliver maintenance-free performance across a wide temperature range. The 2:1 binding rule applies.

• Sizing Options: Inch, metric, and JIS sizes available
• Available in open, closed and thin-wall styles
• ID Sizes: Available from 3/16” to 4” Inch Series, 5mm to 80mm Metric Series
• Shaft Lengths: Up to 12 feet

• Shell Material: Standard is aluminum; stainless steel shells are available
• Maximum Speed: Up to 8 m/s (315 in/s)
• Temperature Rating: -400°F to +400°F or -240°C to 204°C
• Maximum Horizontal Static Load: 2,165 to 100,500 lb (982 to 45,586 kg)

• Seal Options: Nitrile rubber, urethane, and viton seals available from ½” ID and up or 20mm and up
• Mounting Options: O-ring and retaining ring grooves for multiple mounting options
• External Lubrication: Optional feature for added lubrication
• Vibration Damping: Ensures smooth and quiet operation
