Closed self-lubricating plain linear bearing with a 20mm JIS Metric inner diameter and a precision running clearance of 0.0005" per side. Made with a self-lubricating FrelonGOLD® liner, it offers excellent wear resistance and vibration dampening, ensuring smooth operation without extra lubrication. The anodized aluminum shell is both lightweight and sturdy,..
$21.00
Closed self-lubricating plain linear bearing with a 13mm JIS Metric inner diameter and a precision running clearance of 0.0005" per side. Made with a self-lubricating FrelonGOLD® liner, it offers excellent wear resistance and vibration dampening, ensuring smooth operation without extra lubrication. The anodized aluminum shell is both lightweight and sturdy,..
$20.59
Closed self-lubricating plain linear bearing with a 150mm JIS Metric inner diameter and a precision running clearance of 0.0005" per side. Made with a self-lubricating FrelonGOLD® liner, it offers excellent wear resistance and vibration dampening, ensuring smooth operation without extra lubrication. The anodized aluminum shell is lightweight yet durable, designed..
$1,122.10
Closed self-lubricating plain linear bearing with a 16mm JIS Metric inner diameter and a precision running clearance of 0.0005" per side. Made with a self-lubricating FrelonGOLD® liner, it offers excellent wear resistance and vibration dampening, ensuring smooth operation without extra lubrication. The anodized aluminum shell is lightweight yet durable, designed..
$20.59
Thin Wall Plain Linear Bearing. Compensated 16mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$18.55
Thin Wall Plain Linear Bearing. Compensated 12mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$16.62
Thin Wall Plain Linear Bearing. Compensated 25mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$34.96
Thin Wall Plain Linear Bearing with a compensated 40mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side Straight outer diameter Self Lubricating Simplicity Frelon..
$67.37
Thin Wall Plain Linear Bearing. Compensated 15mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$18.55
Thin Wall Plain Linear Bearing - Compensated 30mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with..
$58.72

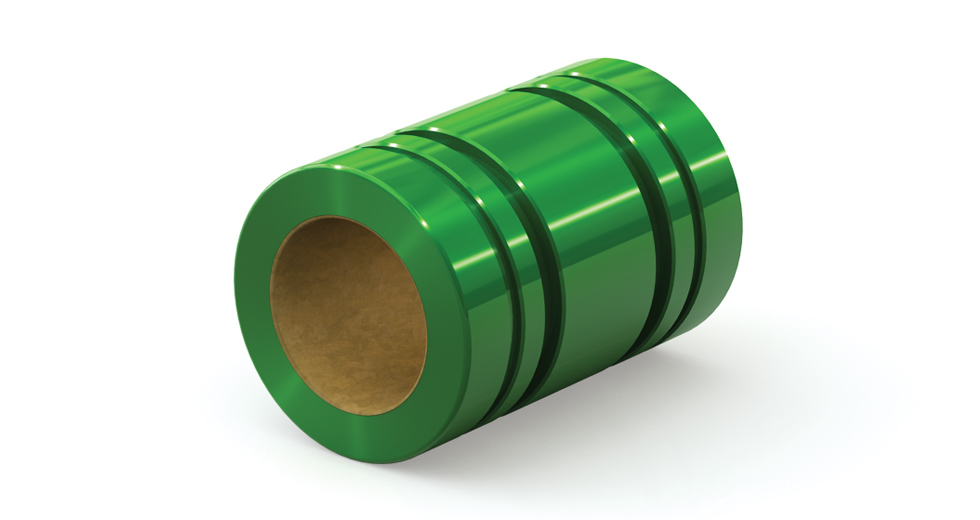

Closed self-lubricating plain linear bearing with a 12mm JIS Metric inner diameter and a precision running clearance of 0.0005" per side. Made with a self-lubricating FrelonGOLD® liner, it offers excellent wear resistance and vibration dampening, ensuring smooth operation without extra lubrication. The anodized aluminum shell is lightweight yet durable. Self-lubricating..
$18.46
Thin Wall Plain Linear Bearing. Compensated 6mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$14.38
Thin Wall Plain Linear Bearing with a 50mm ID (inner diameter) ISO Metric Closed Precision running clearance, 0.0005" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized aluminum outer shell Designed for use with end-supported shafting Interchangeable with compact linear ball bearings and some bronze bushings Product Variant..
$117.77

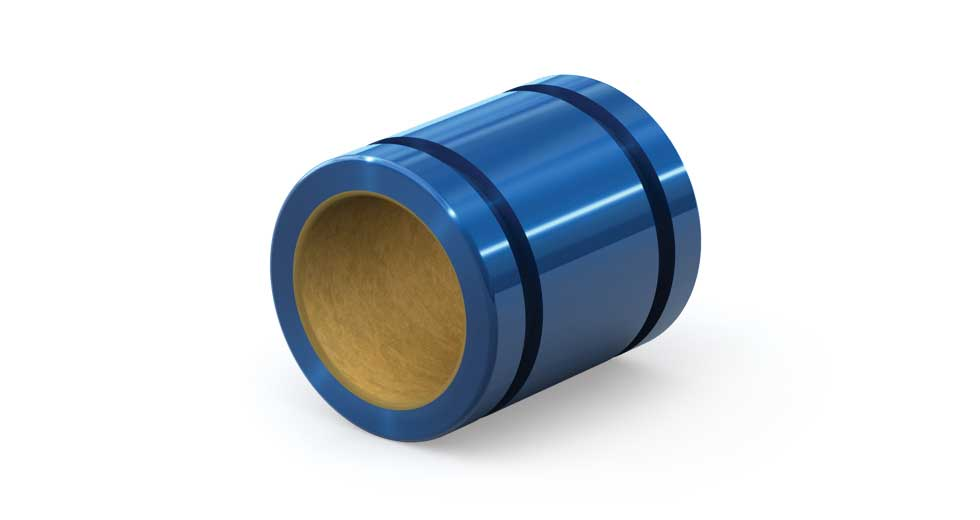

Thin Wall Plain Linear Bearing with a 30mm ID (inner diameter) ISO Metric Closed Precision running clearance, 0.0005" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized aluminum outer shell Designed for use with end-supported shafting Interchangeable with compact linear ball bearings and some bronze bushings Product Variant..
$58.72
Thin Wall Plain Linear Bearing with a 20mm ID (inner diameter) ISO Metric Closed Precision running clearance, 0.0005" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized aluminum outer shell Designed for use with end-supported shafting Interchangeable with compact linear ball bearings and some bronze bushings Product Variant..
$18.91
Thin Wall Plain Linear Bearing. Compensated 10mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$15.95
Thin Wall Plain Linear Bearing with a 40mm ID (inner diameter) ISO Metric Closed Precision running clearance, 0.0005" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized aluminum outer shell Designed for use with end-supported shafting Interchangeable with compact linear ball bearings and some bronze bushings Product Variant..
$67.37
Thin Wall Plain Linear Bearing with a 15mm ID (inner diameter) ISO Metric Closed Precision running clearance, 0.0005" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with an anodized aluminum outer shell Designed for use with end-supported shafting Interchangeable with compact linear ball bearings and some bronze bushings Product..
$18.55
Thin Wall Plain Linear Bearing. Compensated 20mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$18.91

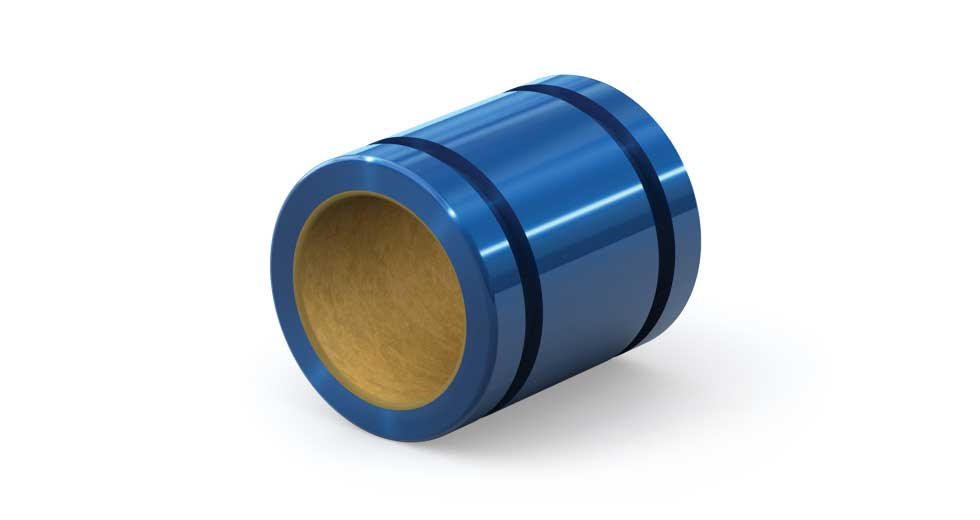

Thin Wall Plain Linear Bearing. Compensated 8mm ID (inner diameter). The compensated running clearance provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. ISO Metric Closed Compensated running clearance, 0.0015" per side FAG Interchange Self Lubricating Simplicity Frelon Gold® liner material with anodized..
$14.38
Simplicity® Plain Linear Bearing variants, including standalone bearings, sleeve bushings, flange mounts and pillow blocks, featuring the self-lubricating FrelonGOLD® PTFE-based liner, which minimizes friction and wear, eliminates external lubrication needs, and outperforms in harsh, hot, or dirty environments. The stand-alone variants have straight or crowned anodized aluminum shells (open or closed), or you can choose from straight or flanged sleeve bearings, or choose bearings inside standard-sized or double-sized pillow blocks (open or closed), or inside standard or double-sized aluminum flanged mounts. Optional Frelon® J liners provide resistance to corrosive chemicals, while Frelon® W liners ensure FDA compliance. All variants support rotary, linear, or oscillating motion, with precision or compensated running clearances. Offered in Inch, ISO Metric, or JIS Metric ID series, they deliver maintenance-free performance across a wide temperature range. The 2:1 binding rule applies.
- Sizing Options: Inch, metric, and JIS sizes available
- Available in open, closed and thin-wall styles
- ID Sizes: Available from 3/16” to 4” Inch Series, 5mm to 80mm Metric Series
- Shaft Lengths: Up to 12 feet
- Shell Material: Standard is aluminum; stainless steel shells are available
- Maximum Speed: Up to 8 m/s (315 in/s)
- Temperature Rating: -400°F to +400°F or -240°C to 204°C
- Maximum Horizontal Static Load: 2,165 to 100,500 lb (982 to 45,586 kg)
- Seal Options: Nitrile rubber, urethane, and viton seals available from ½” ID and up or 20mm and up
- Mounting Options: O-ring and retaining ring grooves for multiple mounting options
- External Lubrication: Optional feature for added lubrication
- Vibration Damping: Ensures smooth and quiet operation
View our full Plain Linear Bearing Product Features page
