Simplicity® Plain Linear Bearings, Sleeve Bushings, Pillow Blocks & Flange Mounts
Ways to Order
Browse Categories
Die set plain linear bearing with an aluminum shell, a 19mm ID and a compensated running clearance of 0.0015″ per side in a closed, standard-width design. Features a round flange and self-lubricating FrelonGOLD® liner as standard, which provides optimal performance in extreme conditions such as dirt, heat and vibration. An..
$71.94
Round flanged plain linear bearing with a 60mm ID, a compensated running clearance, and a standard-size aluminum housing featuring a self-lubricating FrelonGOLD® liner bonded directly to the bore of the housing. The round flange allows secure mounting to a machine frame or plate, while the lined bore supports maintenance-free linear,..
$399.24
Round flanged plain linear bearing with a 50mm ID, a compensated running clearance, and a standard-size aluminum housing featuring a self-lubricating FrelonGOLD® liner bonded directly to the bore of the housing. The round flange allows secure mounting to a machine frame or plate, while the lined bore supports maintenance-free linear,..
$233.15
Round Flanged Plain Linear Bearing of precision 60mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Precision running clearance of 0.0005” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner, bonded to the housing bore, ensures maintenance-free..
$399.24
Round flanged plain linear bearing with an 80mm ID and a precision running clearance in a standard-size aluminum housing featuring a self-lubricating FrelonGOLD® liner bonded directly to the bore. The flange allows secure mounting to a machine frame or plate, while the lined bore supports maintenance-free linear, rotational, and oscillating..
$670.76
Round flanged plain linear bearing with an 80mm ID, a compensated running clearance, and a standard-size aluminum housing featuring a self-lubricating Simplicity® FrelonGOLD® liner bonded directly to the bore of the housing. The round flange allows secure mounting to a machine frame or plate, while the lined bore supports maintenance-free..
$670.76
Round flanged plain linear bearing with a 50mm ID, a precision running clearance, and a standard-size aluminum housing featuring a self-lubricating FrelonGOLD® liner bonded directly to the bore of the housing. Unlike recirculating ball bearings, the FrelonGOLD® sliding surface has no rolling elements to jam, seize, or contaminate, making it..
$233.15
Plain Linear Bearing with a square flange and a 30mm precision ID, designed to slide smoothly on both steel and ceramic-coated aluminum shafts. It features a self-lubricating FrelonGOLD® bearing liner that performs reliably with vibration damping in harsh conditions, enabling long-term, maintenance-free operation. Precision running clearance on the inner diameter..
$98.60
Round flanged plain linear bearing of 16mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner, bonded directly to the housing bore, ensures maintenance-free..
$46.04
Round flanged plain linear bearing of 25mm ISO Metric ID and compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner, bonded directly to the housing bore, ensures maintenance-free performance in harsh conditions like dirt, vibration, and..
$68.35
Round flanged plain linear bearing of 30mm ISO Metric ID and a compensated running clearance of 0.0015” per side that allows pairing with another bearing on a parallel shaft with imperfect alignment. Bonded to the bore of the standard sized housing is a FrelonGOLD® liner that ensures maintenance-free performance in..
$98.60
Square flanged plain linear bearing with a 50mm ID. A compensated running clearance of 0.0015" per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner, bonded to the bore of the lightweight, durable flanged aluminum housing, ensures maintenance-free performance in harsh conditions..
$233.15
Round flanged plain linear bearing with a 40mm ID. A compensated running clearance of 0.0015" per side allows pairing with another bearing on a parallel shaft with imperfect alignment. The FrelonGOLD® liner bonded to the bore of the lightweight, durable flanged aluminum housing, ensures maintenance-free performance in harsh conditions such..
$179.58
Square flanged plain linear bearing with an 80mm ID. A precision running clearance provides a closer fit between the shaft and bearing for smooth, accurate motion in applications where reduced play is desired. The FrelonGOLD® liner, bonded to the bore of the lightweight, durable flanged aluminum housing, ensures maintenance-free performance..
$670.76
Square flanged plain linear bearing with a 50mm ID. A precision running clearance provides a closer fit between the shaft and bearing for smooth, accurate motion in applications where reduced play is desired. The FrelonGOLD® liner, bonded to the bore of the lightweight, durable flanged aluminum housing, ensures maintenance-free performance..
$233.15
Round flanged plain linear bearing with a 30mm ID. A precision running clearance provides a closer fit between the shaft and bearing for smooth, accurate motion in applications where reduced play is desired. The FrelonGOLD® liner, bonded to the bore of the lightweight, durable flanged aluminum housing, ensures maintenance-free performance..
$98.60
Round flanged plain linear bearing of 20mm ISO Metric ID (inner diameter) and part of the Simplicity® product line. Compensated running clearance of 0.0015” per side allows pairing with another bearing on a parallel shaft with imperfect alignment, while the FrelonGOLD® liner, bonded directly to the housing bore, ensures maintenance-free..
$57.60
Round flanged plain linear bearing with a 20mm JIS Metric precision ID consisting of an aluminum housing with a self-lubricating FrelonGOLD® liner for maintenance-free linear, rotational and oscillating movement in harsh conditions like extreme heat, dirt and vibration. Round Flanged Aluminum Linear Bearing Self-lubricating FrelonGOLD® liner JIS Metric (Japanese Industrial..
$55.90
Round flanged plain linear bearing with a 12mm ID, a precision round shaft running clearance, and a standard-size aluminum housing featuring a self-lubricating Simplicity® FrelonGOLD® liner bonded directly to the bore of the housing. Unlike recirculating ball bearings, the FrelonGOLD® sliding surface has no rolling elements to jam, seize, or..
$39.45
Round flanged plain linear bearing with a 12mm ID, a compensated running clearance, and a standard-size aluminum housing featuring a self-lubricating Simplicity® FrelonGOLD® liner bonded directly to the bore of the housing. The round flange allows secure mounting to a machine frame or plate, while the lined bore supports maintenance-free..
$39.45
Plain linear bearings are precision-bored linear motion components that use sliding elements along the bore’s inner diameter, such as a bonded self-lubricating liner or low-cost injection-molded polymer liner, to produce low-friction straight-line motion along a round or square shaft. Open-shelled versions provide a cutout to clear the way for rail supported shafts or profiled rails. Unlike rolling element ball bearings, plain linear bearings eliminate balls that can jam, seize, contaminate, brinell (dent), or fail in harsh environments. Simplicity® plain linear bearings feature a premium bonded, self-lubricating FrelonGOLD® PTFE-based liner that minimizes friction and wear, eliminates the need for external lubrication, and delivers long-lasting maintenance-free performance in conditions involving extreme heat, dirt, welding splatter, particulates, debris, vibration, shock, washdown, and caustic exposure. Configurations include standard, twin-size, self-aligning, die set, flanged, pillow block bearings and sleeve bearings (bushings). Off-the-shelf style choices include round or square shaft bearings, straight or crowned anodized aluminum shells, open or closed shell designs, standard or double-size housings, and straight or flanged sleeve options. Optional Frelon®J liners provide resistance to corrosive chemicals, and Frelon®W liners support FDA-compliant applications. All variants are available with precision or compensated running clearances and can support linear, rotary, or oscillating motion. ID sizes are offered in Inch, ISO Metric, and JIS Metric standards. The 2:1 binding rule applies to plain bearing systems as the farther a load sticks out from the shaft or rail, the farther apart the bearings or carriages need to be to prevent binding.
- Sizing Options: Inch, metric, and JIS sizes available
- Available in open, closed and thin-wall styles
- ID Sizes: Available from 3/16” to 4” Inch Series, 5mm to 80mm Metric Series
- Shaft Lengths: Up to 12 feet
- Shell Material: Standard is aluminum; stainless steel shells are available
- Maximum Speed: Up to 8 m/s (315 in/s)
- Temperature Rating: -400°F to +400°F or -240°C to 204°C
- Maximum Horizontal Static Load: 2,165 to 100,500 lb (982 to 45,586 kg)
- Seal Options: Nitrile rubber, urethane, and viton seals available from ½” ID and up or 20mm and up
- Mounting Options: O-ring and retaining ring grooves for multiple mounting options
- External Lubrication: Optional feature for added lubrication
- Vibration Damping: Ensures smooth and quiet operation
View the Plain Linear Bearing Product Features page
Frequently Asked Questions

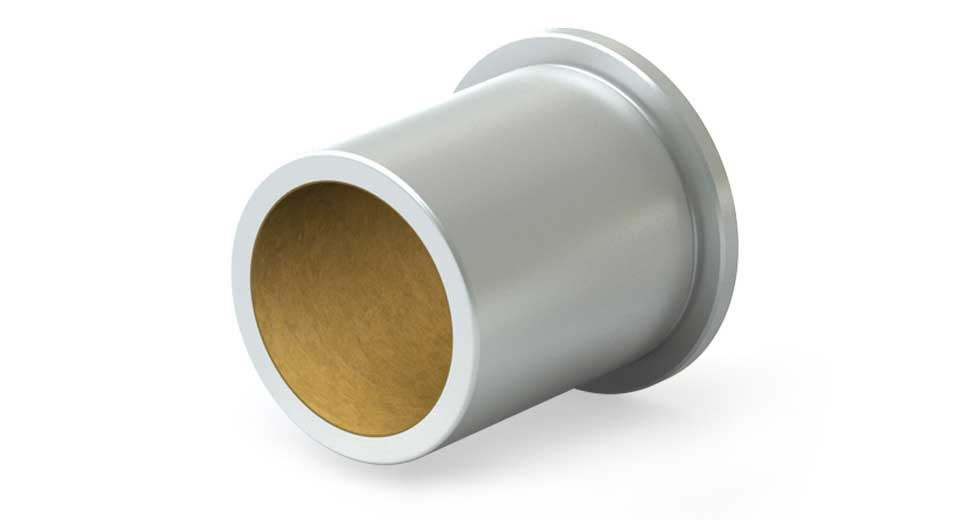

What are flanged plain bearings used for?
Flanged plain bearings are used to simplify mounting and axial positioning in linear motion systems, providing a built-in flange that helps secure the bearing within a housing or plate.
What is a pillow block plain bearing?
A pillow block plain bearing is a mounted assembly that houses a plain bearing in a rigid block, making installation easier while providing alignment support and load distribution.
What are twin or double-size plain bearings?
Twin or double-size plain bearings feature extended length or dual-bearing surfaces to increase load capacity, improve stability, and reduce deflection in demanding applications.
What are die set plain bearings used for?
Die set plain bearings are designed for use in stamping and tooling applications, providing precise linear guidance and durability under high loads and repetitive motion.
What are thin-wall plain bearings?
Thin-wall plain bearings are designed for space-constrained applications, offering a reduced outer diameter while maintaining low friction and reliable linear motion performance.

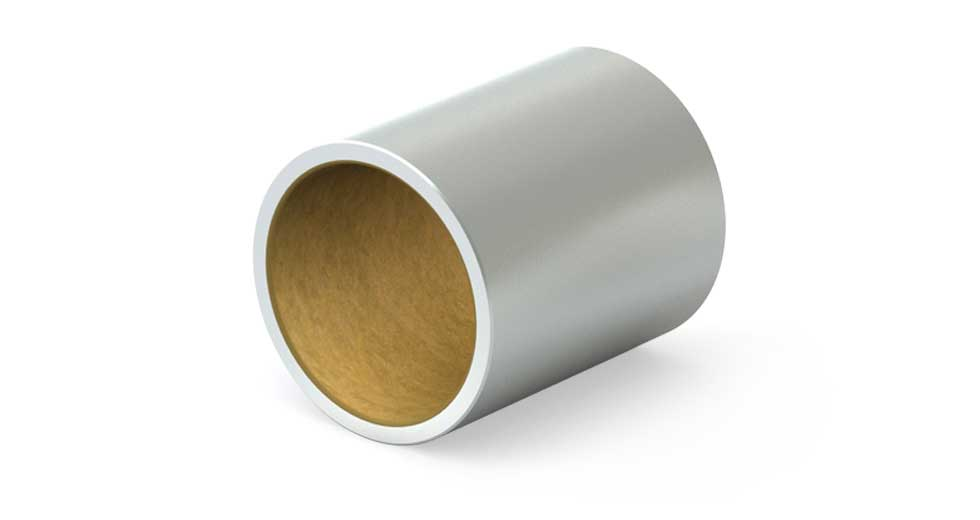

What is a sleeve bushing in linear motion applications?
A sleeve bushing is a cylindrical plain bearing that provides smooth, low-friction motion along a shaft, commonly used where compact size and simple installation are required.
What are the benefits of self-lubricating liners in plain bearings?
Self-lubricating liners eliminate the need for external lubrication, reduce maintenance, minimize friction and wear, and perform reliably in dirty, dry, or high-temperature environments.
When should mounted plain bearings be used instead of standalone bearings?
Mounted plain bearings, such as pillow blocks or flanged units, should be used when easier installation, improved alignment, and additional structural support are required.
What materials are used in plain bearing liners?
Plain bearing liners are typically made from PTFE-based materials that provide low friction, wear resistance, and consistent performance across a wide range of temperatures and conditions.
Can plain bearings operate without lubrication?
Yes, plain bearings with self-lubricating liners are designed to operate without external lubrication, making them ideal for applications where maintenance access is limited or contamination is a concern.
