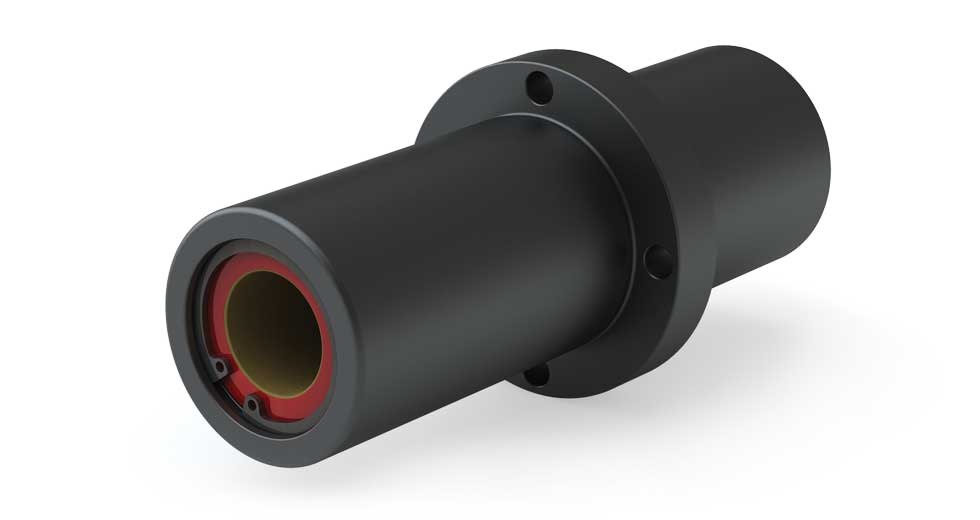

Double Die Set Plain Linear Bearing - Steel Shell DDSZ24 1.50″ Round Flange Center
Double die set plain linear bearing, steel shelled, with a 1.5″ ID and a precision running clearance of 0.0005″ per side. Features a closed, double sized design with a round flange in the center, as well as a self-lubricating FrelonGOLD® liner that provides optimal performance in extreme conditions such as dirt, heat and vibration. This steel shelled model is ideal for heavy die sets, stamping presses, punch tooling, and other high-load industrial applications.
- Steel Shell - Double Size with a round flange in the center
- Closed Simplicity© Die Set Plain Linear Bearing
- Precision Running Clearance of 0.0005″ per side
- Self-Lubricating Bearing Liner: FrelonGOLD® is standard
- Linear and Rotational movement
- Optional liners include Frelon®J for corrosive chemical environments & FDA approved Frelon®W for food processing and packaging
- Temperature Rating: -400°F/+400°F or -240°C/204°C
- Vibration Damping: Ensures smooth and quiet operation
- Maximum speed up to 8 m/s (315 in/s)
