Heavy Duty Linear Rail HVRI-11-1500 - I-Channel 1500mm for Hevi-Rail Linear Guide Roller HVB-060

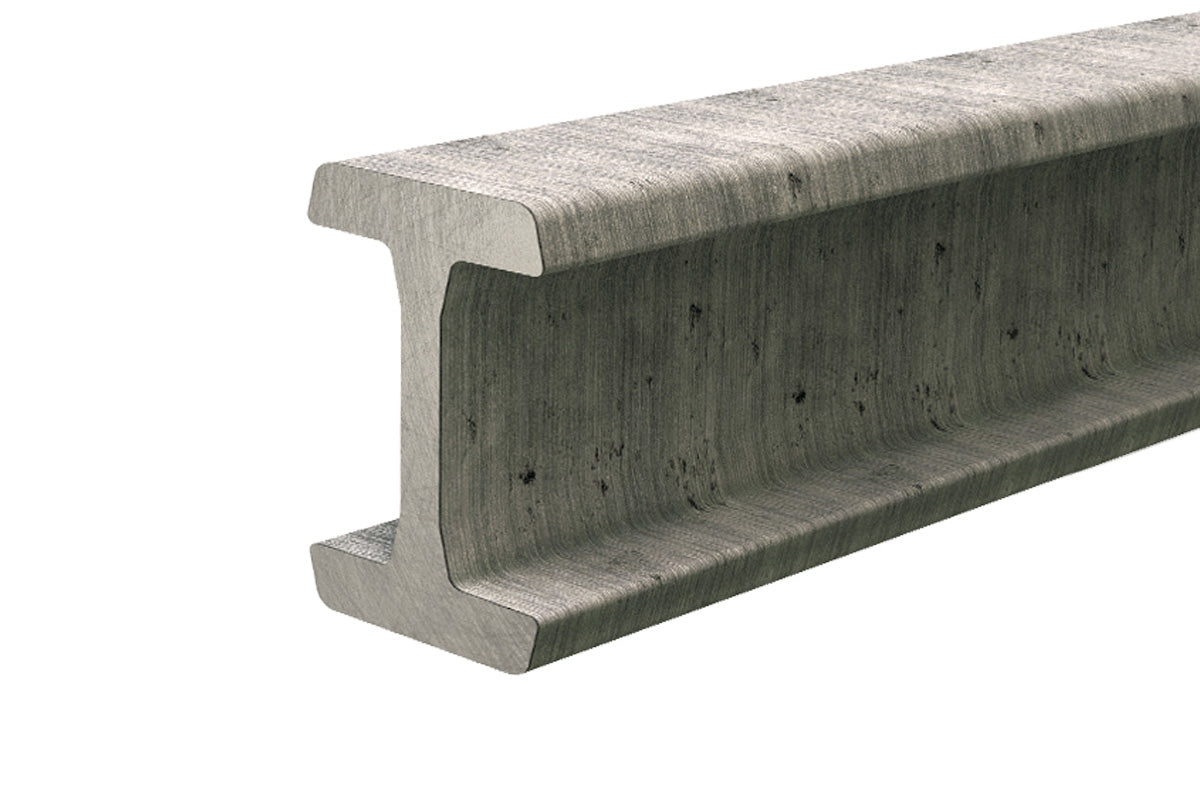

Heavy-duty linear rail, I-channel size 11, with a 1500mm length and 152.4mm rail widthfor the PBC Linear Hevi-Rail® linear guide system. Designed for HVB-060 concentric and HVBEA-460 eccentric adjustable guide rollers, the I-channel provides a rigid structural track for high-load and long-span applications, allowing the rail to carry supporting frame loads while also guiding the rollers. Made from 18MnNb6 ferritic steel for heavy material handling, lifting, telescoping systems and other demanding industrial applications. Rail only; rollers are sold separately.
- Heavy-duty Hevi-Rail® size 11 I-channel linear rail
- Compatible with HVB-060 and HVBEA-460 guide rollers
- 1500mm length × 152.4mm rail width
- System static load ratings: 23.80kN radial and 7.44kN axial
- Rigid I-channel profile provides high resistance to bending
- Rail serves as both linear guide track and supporting machine structure
- 18MnNb6 ferritic steel
- 430N/mm² yield strength
- 550–770N/mm² tensile strength
- Brinell hardness: 160–210 HB
- Ideal for heavy material handling, lifting and long-span linear motion applications
- Rail only — guide rollers sold separately
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | HVRI-11-1500.x_t | SolidWorks >=2006 | Download |
