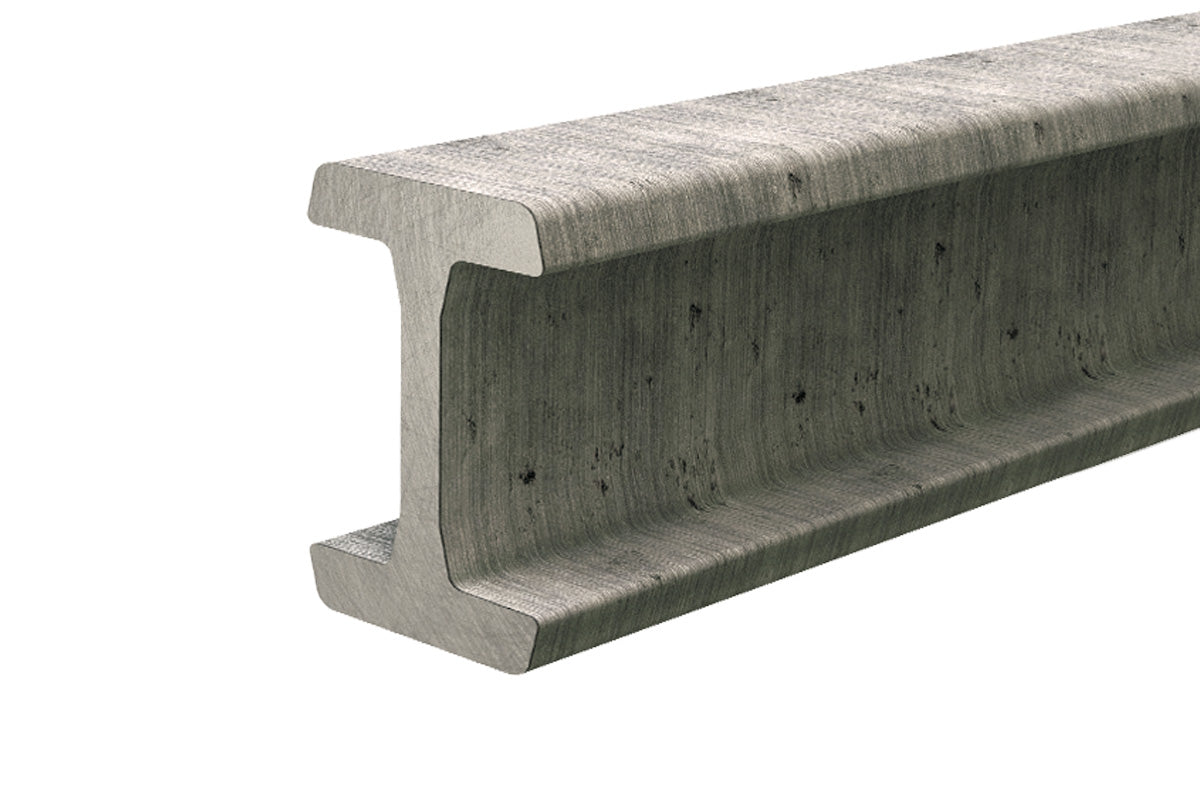

Heavy Duty Linear Rail HVRI-11-1000 - Steel I-Channel 1000mm for Hevi-Rail Linear Guide Roller HVB-060
I-Channel Heavy Duty Linear Rail made of steel and 1000mm long, for roller bearings HVB-060 and HVBEA-460 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for even force dispersion.
- Steel Linear Rail only (Rollers sold separately with or without flange plates)
- Compatible with wheel part number HVB-060 and HVBEA-460
- I-Channel Rail
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | HVRI-11-1000.x_t | SolidWorks >=2006 | Download |
