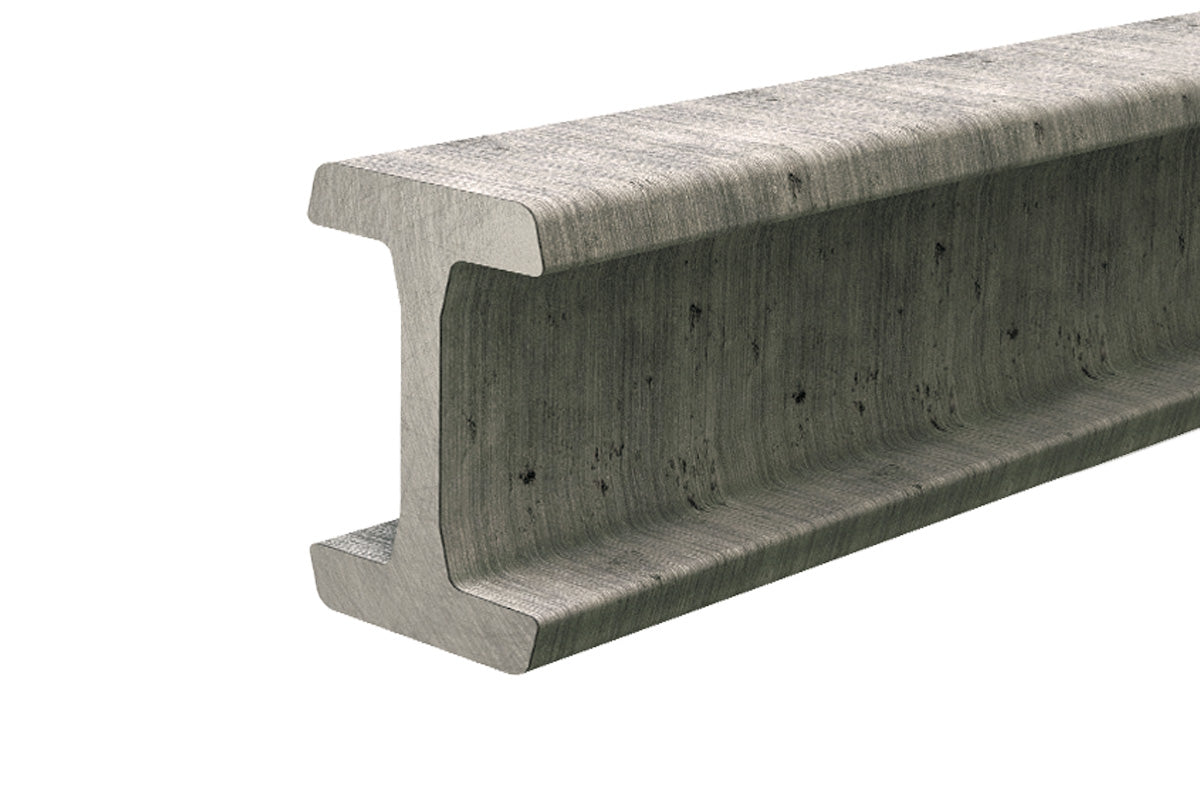

Heavy Duty Linear Rail HVRI-10-2000 - I-Channel 2000mm for Hevi-Rail Linear Guide Roller HVB-059
I-Channel Heavy Duty Linear Rail made of steel and 2000mm long, for roller bearings HVB-059 and HVBEA-459 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for even force dispersion.
- Linear Rail only
- Compatible with wheel part number HVB-060 and HVBEA-460
- I-Channel Rail
- Hevi-Rail linear guides offer easily interchangeable components
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | HVRI-10-2000.x_t | SolidWorks >=2006 | Download |
