Heavy Duty Linear Rail HVRI-10-1500 - Steel I-Channel 150...

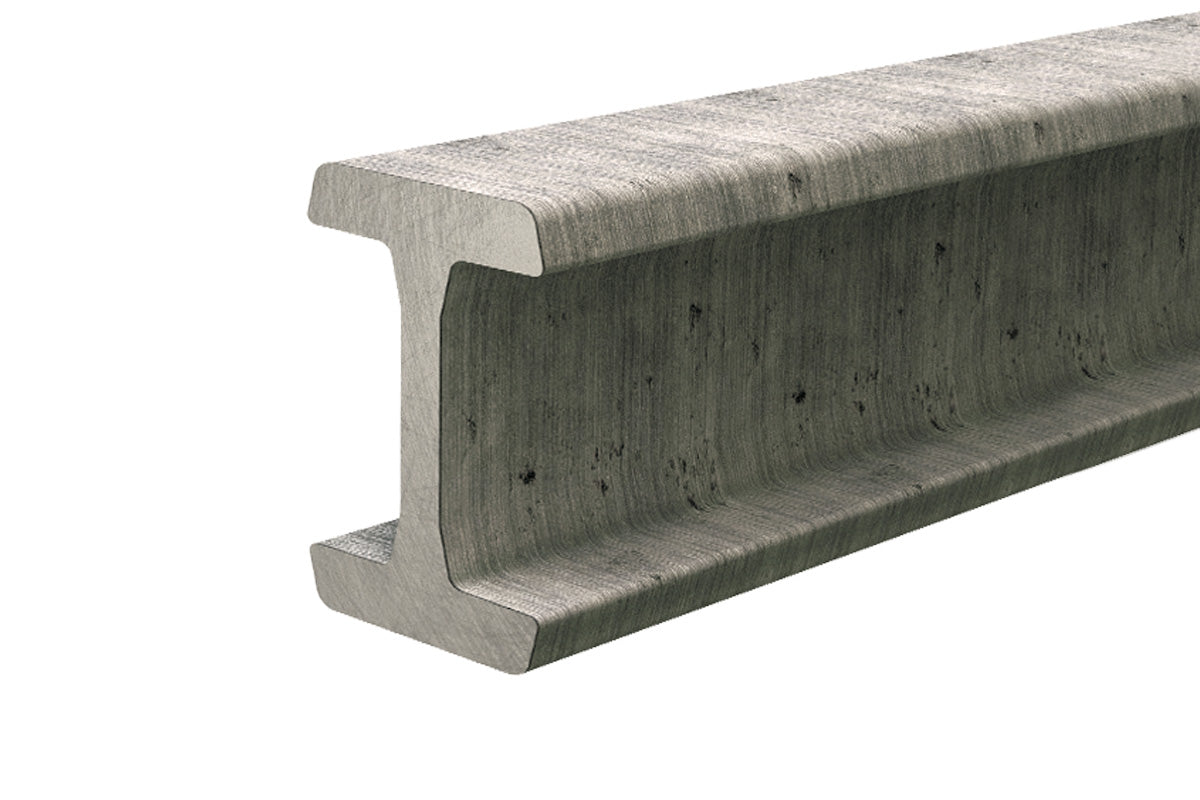

Heavy Duty Linear Rail HVRI-10-1500 - Steel I-Channel 1500mm for Hevi-Rail Linear Guide Roller HVB-059

I-Channel Heavy Duty Linear Rail made of steel and 1500mm long, for roller bearings HVB-059 and HVBEA-459 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for even force dispersion.

  • Linear Rail only
  • Compatible with wheel part number HVB-059 and HVBEA-49
  • I shaped channel

PDF View Catalog

$441.05
Configure Custom Features
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
103.35 lbs2.75 in59.06 in5.52 in
