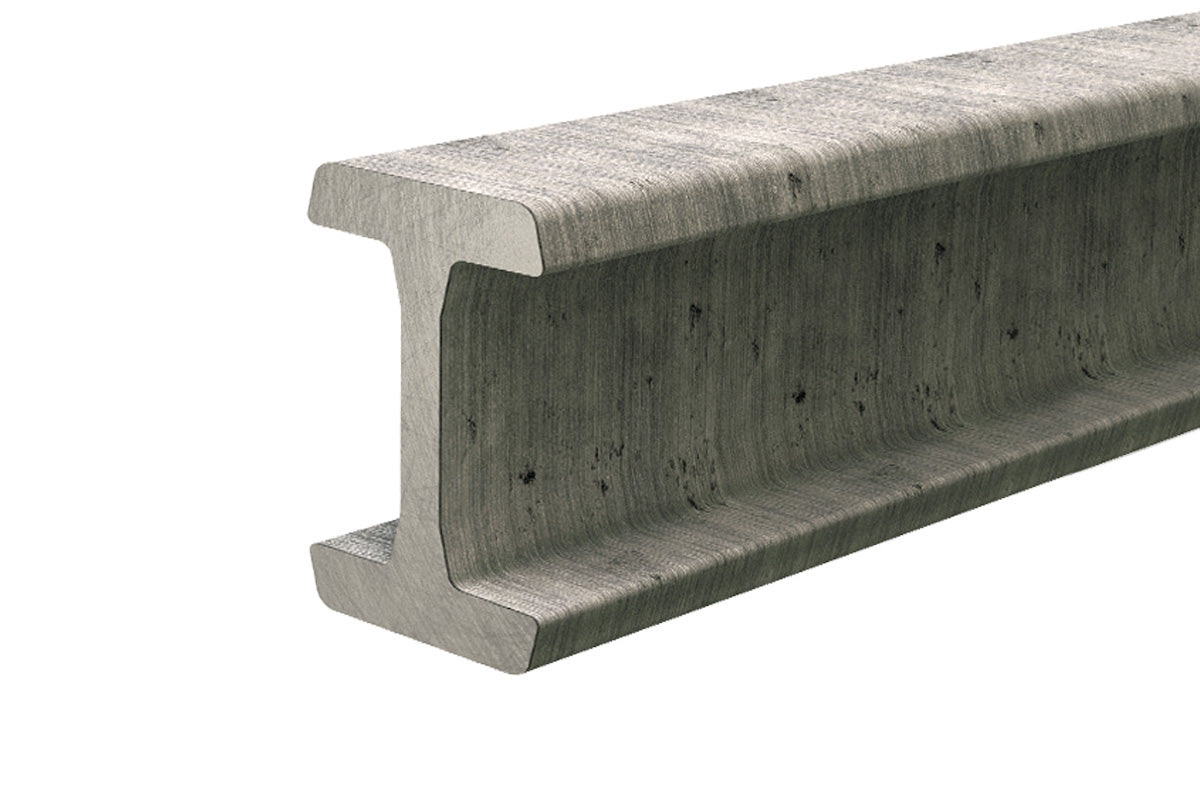

Heavy Duty Linear Rail HVRI-09-1500 - Steel I-Channel 1500mm for Hevi-Rail Linear Guide Roller HVB-058

I-Channel Heavy Duty Linear Rail made of steel and 1500mm long, for roller bearings HVB-058 and HVBEA-458 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for even force dispersion.

  • Linear Rail only
  • Compatible with wheel part number HVB-058 and HVBEA-458
  • I shaped channel

PDF View Catalog

$436.66
Configure Custom Features
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
112.8 lbs3.19 in59.06 in5.1 in
