Heavy Duty Linear Rail HVRI-08-1500 - Steel I-Channel 1500mm for Hevi-Rail Linear Guide Roller HVB-057

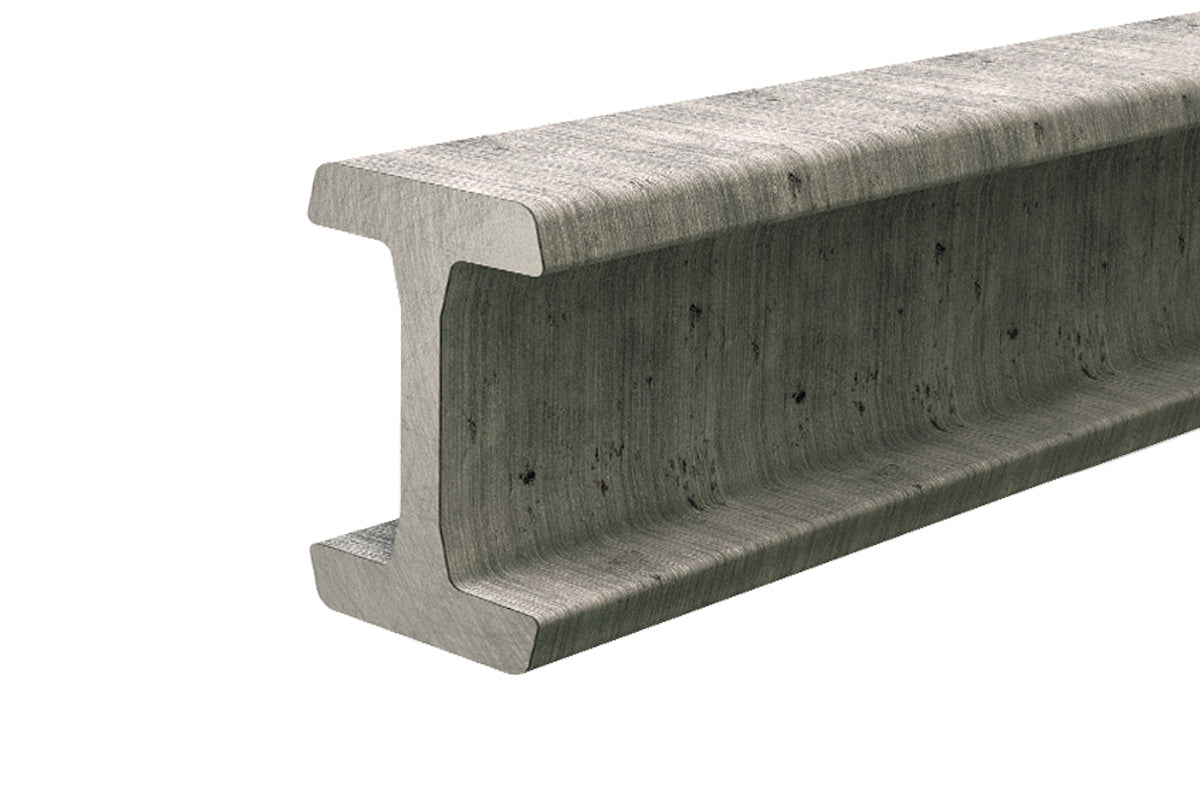

I-Channel Heavy Duty Linear Rail made of steel and 1500mm long, for roller bearings HVB-057 and HVBEA-457 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for even force dispersion over a lifetime of continuous use.
- Linear Rail only
- Compatible with wheel part number HVB-057 and HVBEA-457
- I shaped channel
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | HVRI-08-1500.x_t | SolidWorks >=2006 | Download |
