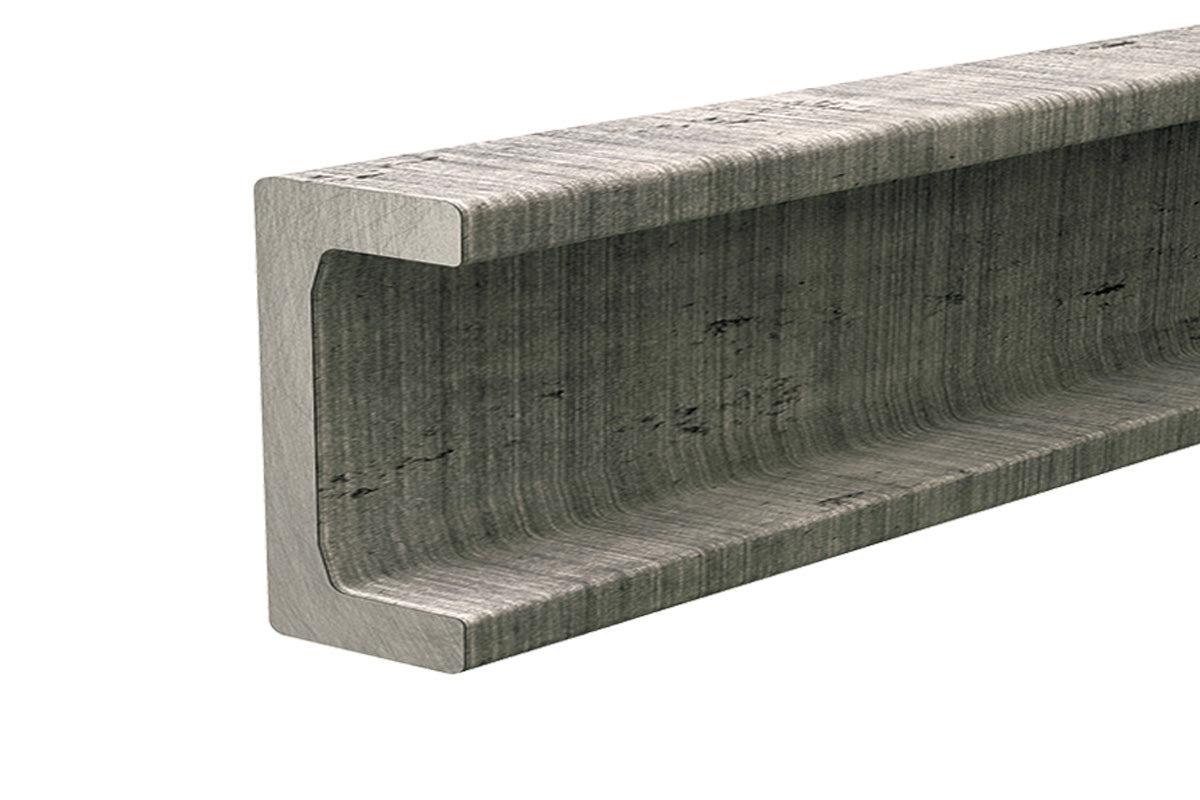

Heavy Duty Linear Rail HVR-5-2500 - U-Channel 2500mm for Hevi-Rail Linear Guide Roller HVB-062
U-Channel Heavy Duty Linear Rail made of steel and 2500mm long, for roller bearings HVB-062 and HVBEA-462 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for even force dispersion.
- Linear Rail only
- Compatible with wheel part number HVB-062 and HVBEA-462
- 175mm rail width
- U-Channel Rail
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | HVR-5-2500.x_t | SolidWorks >=2006 | Download |
