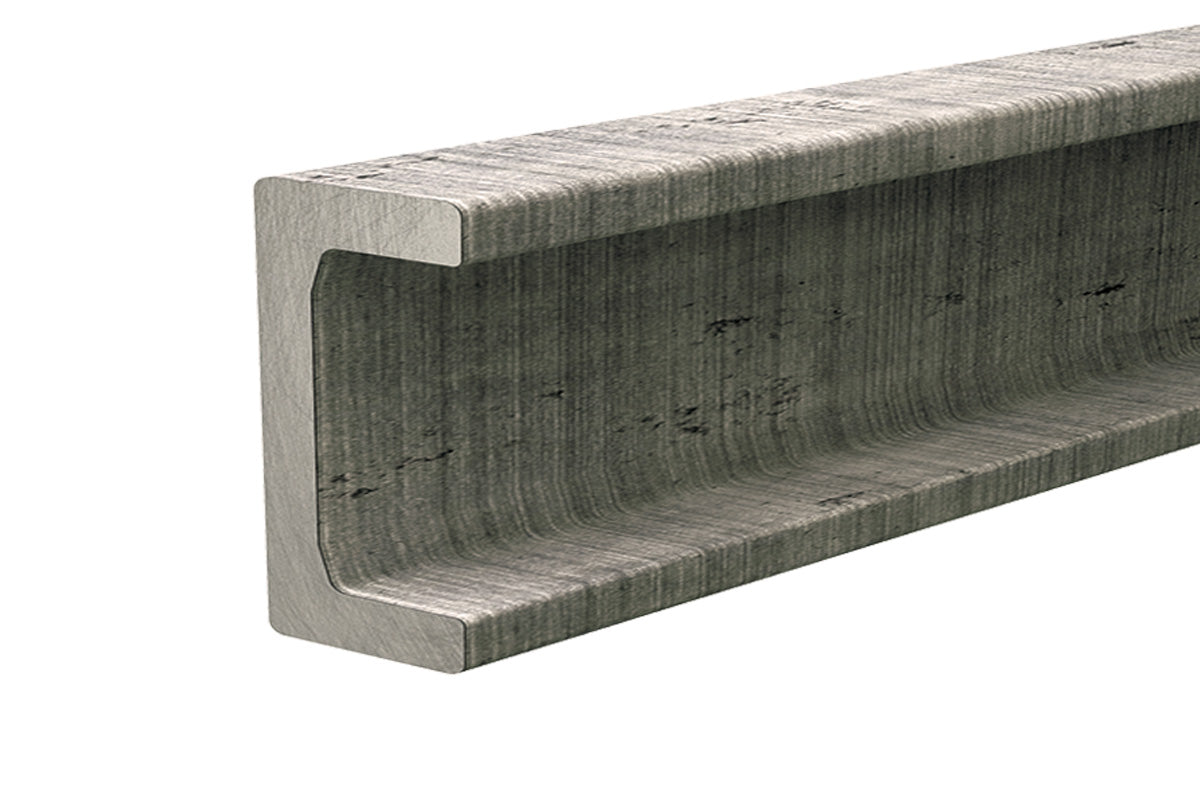

Heavy Duty Linear Rail HVR-4-2500 - U-Channel 2500mm for Hevi-Rail Linear Guide Roller HVB-061
Heavy-duty linear rail, U-channel size 4, with a 2500mm length and 157.2mm rail width for the PBC Linear Hevi-Rail® linear guide system. Designed for HVB-061 concentric and HVBEA-461 eccentric adjustable guide rollers, this structural steel channel can serve as both the guide rail and part of the supporting machine structure. Made from 18MnNb6 steel for high-load material handling, lifting, telescoping systems and other demanding industrial applications. Rail only; rollers and mounting components are sold separately.
- Heavy-duty Hevi-Rail® size 4 linear rail
- 2500mm length × 157.2mm rail width
- U-channel structural steel construction
- Compatible with HVB-061 and HVBEA-461 guide rollers
- 18MnNb6 steel: 430N/mm² yield strength and 550–770N/mm² tensile strength
- Brinell hardness: 160–210 HB
- Interchangeable Hevi-Rail® components simplify maintenance and replacement
- Ideal for heavy material handling, lifting and long-travel applications
- Rail only — guide rollers and mounting components sold separately
