Heavy Duty Linear Rail HVR-4-2000 - U-Channel 2000mm for Hevi-Rail Linear Guide Roller HVB-061

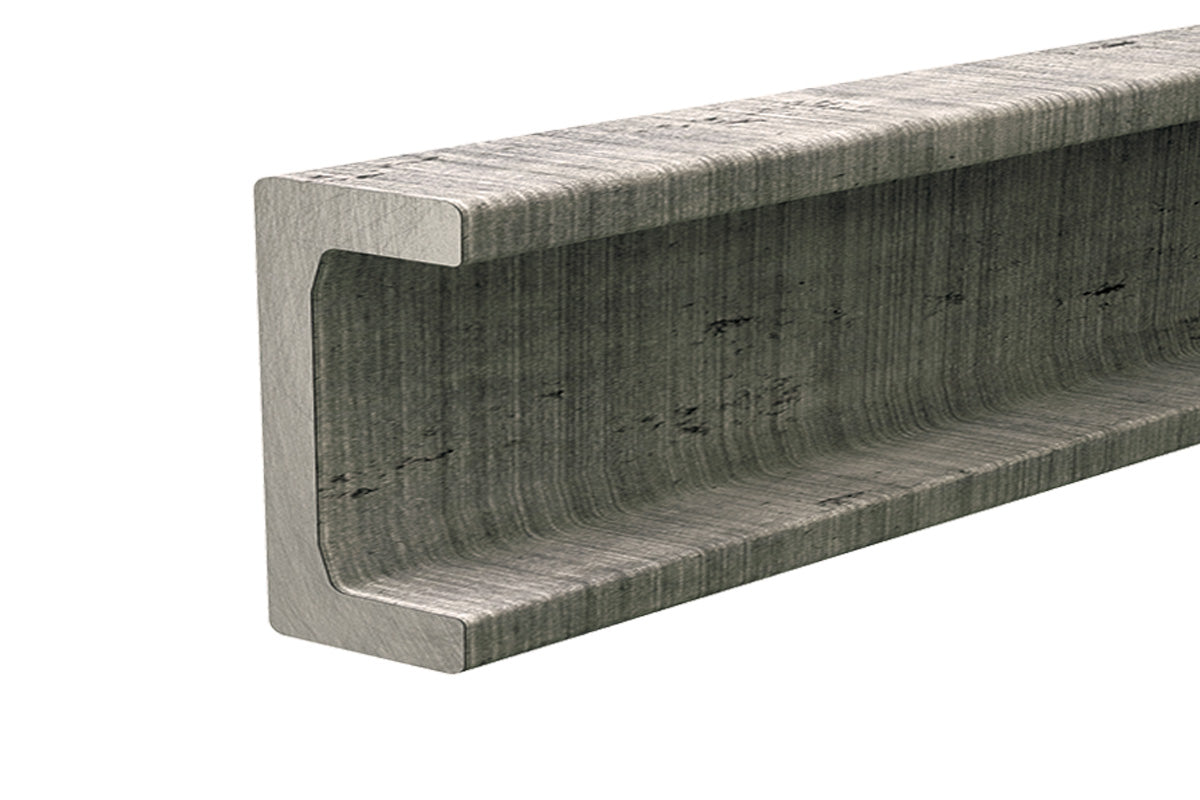

U-Channel Heavy Duty Linear Rail made of steel and 2000mm long, for roller bearings HVB-061 and HVBEA-461 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for even force dispersion.

  • Linear Rail only
  • Compatible with wheel part number HVB-061 and HVBEA-461
  • 157.2mm rail width
  • U-Channel Rail
  • Hevi-Rail linear guides offer easily interchangeable components

PDF View Catalog

3D Models

TypeFileFormatLink
3dHVR-4-2000.htmlhtmlView
cadHVR-4-2000.stepSTEP AP214Download
$551.98
Configure Custom Features
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
158.27 lbs0 in78.74 in0 in
