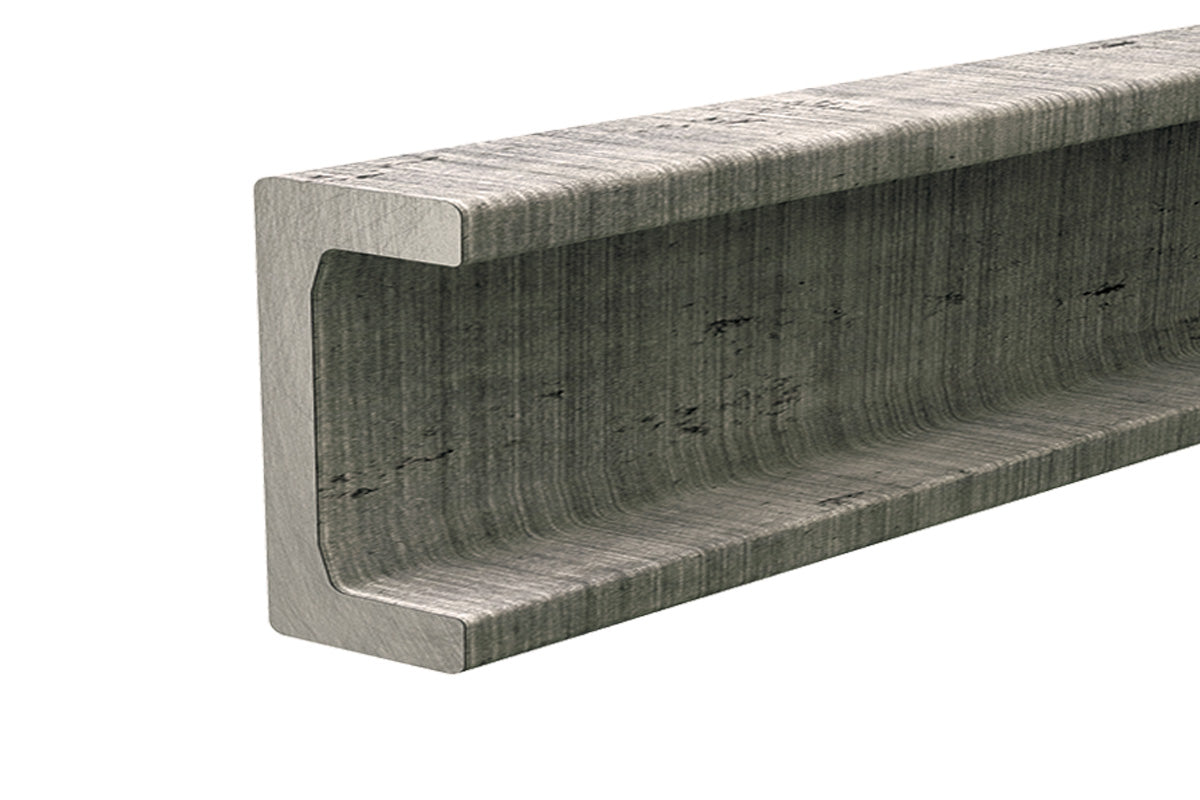

Heavy Duty Linear Rail HVR-3-1500 - Steel U-Channel 1500mm for Hevi-Rail Linear Guide Roller HVB-058
U-Channel Heavy Duty Linear Rail made of steel and 1500mm long, for roller bearings HVB-058 and HVBEA-458 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for even force dispersion.
- Linear Rail only
- Compatible with wheel part number HVB-058 and HVBEA-458
- 135.4mm rail width
- U-Channel Rail
- Hevi-Rail linear guides offer easily interchangeable components
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | HVR-3-1500.igs | IGES 5.3 | Download |
