Heavy Duty Linear Rail HVR-2-1000 - Steel U-Channel 1000mm for Hevi-Rail Linear Guide Roller HVB-056

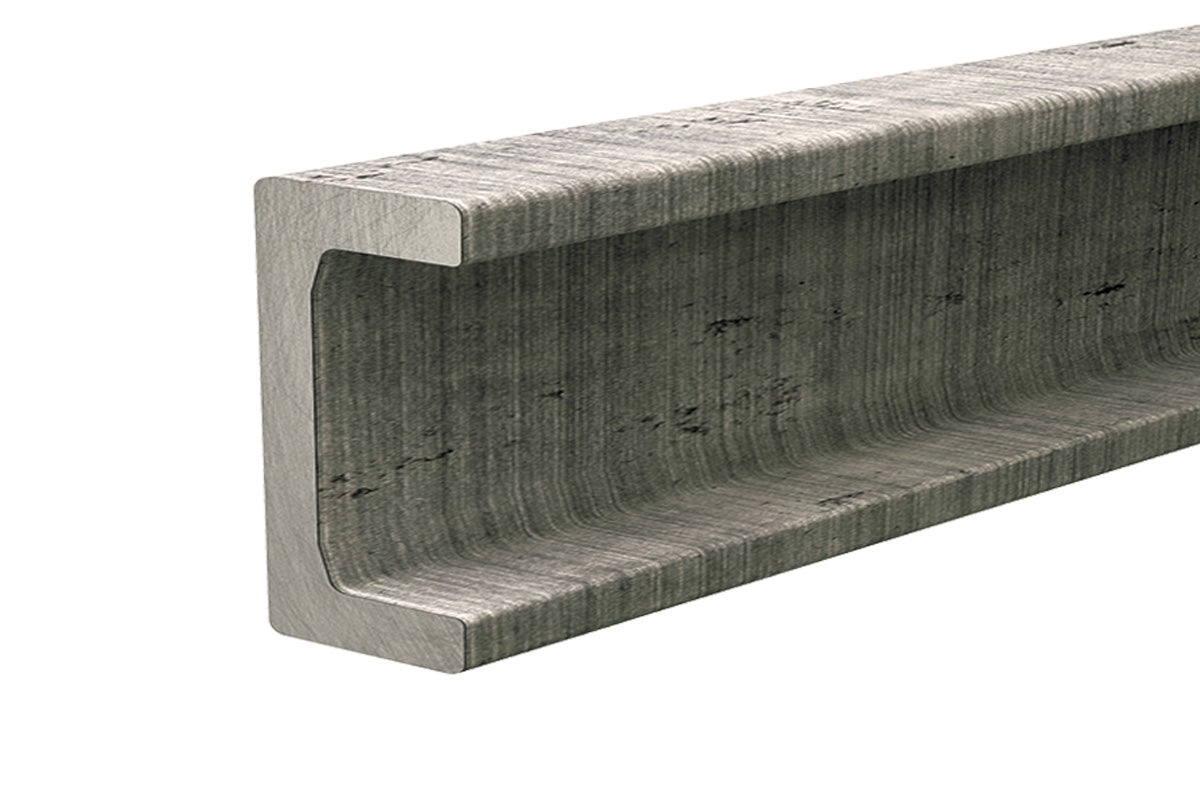

U-Channel Heavy Duty Linear Rail made of steel and 1000mm long, for roller bearings HVB-056 and HVBEA-456 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for even force dispersion over a lifetime of continuous use.

  • Linear Rail only
  • Compatible with wheel part number HVB-056 and HVBEA-456
  • 121.3mm rail width
  • U-Channel Rail
  • Hevi-Rail linear guides offer easily interchangeable components

PDF View Catalog

$181.06
Configure Custom Features
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
47.24 lbs1.61 in39.37 in4.78 in
