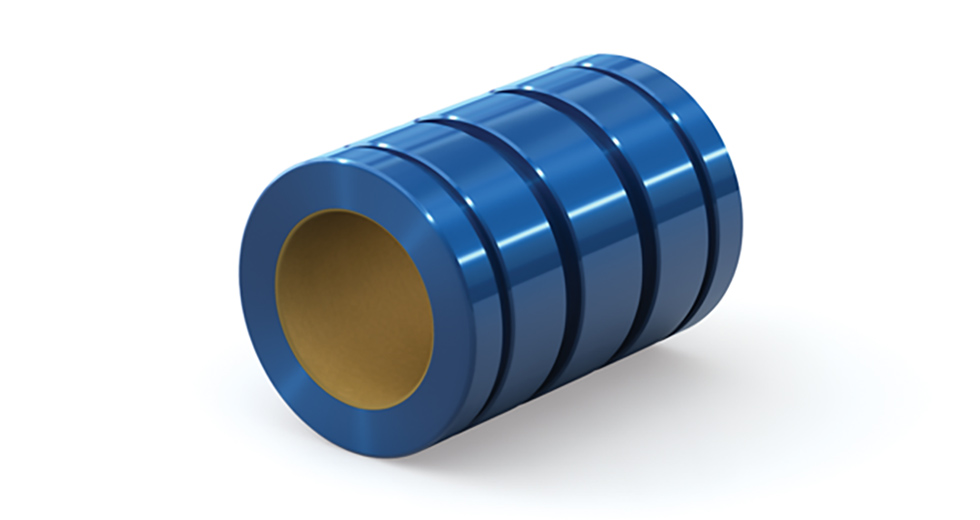

Plain Linear Bearing - FM25 25mm
Plain linear bearing, closed, with a 25mm precision ID (inner diameter) that provides a running clearance of 0.0005" per side. Lined with self-lubricating FrelonGOLD® for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration.
- ISO Metric Series - Closed
-
Straight outer diameter (crowned ODs available via the FMA part number)
- Anodized Aluminum Shell (Optional Stainless Steel Shell)
- Precision running clearance 0.0005" per side
- Optional liners: corrosive chemical resistant Frelon®J and FDA Compliant Frelon®W
- Temperature Rating: -400°F/+400°F or -240°C/204°C
- Vibration Damping: Ensures smooth and quiet operation
Product Dimensions
| weight | width | length | height |
|---|---|---|---|
| 0.24 lbs | 1.57 in | 2.28 in | 1.57 in |
Additional Dimensions
