Plain Linear Bearing Pillow Block PNBS16CE 1″ Stainless S...

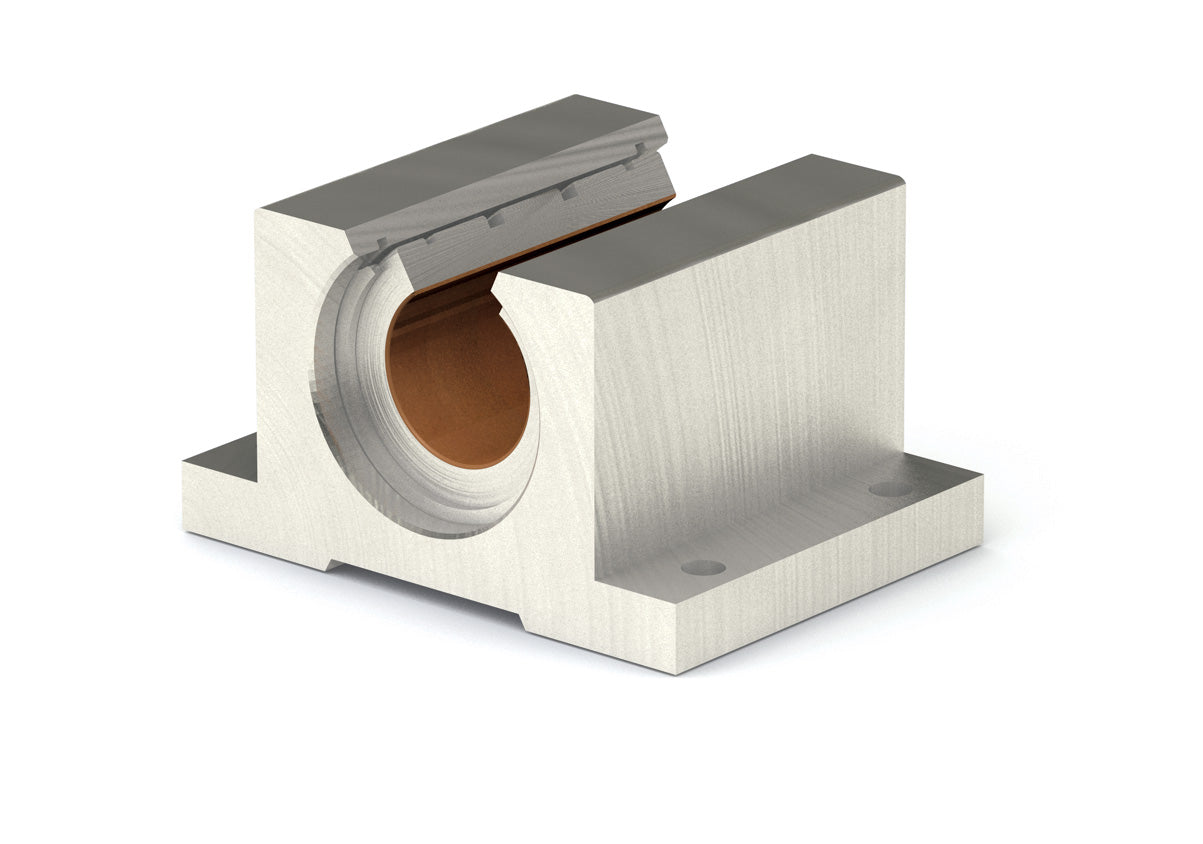

Plain Linear Bearing Pillow Block PNBS16CE 1″ Stainless Steel - Open, Compensated

Open Plain Linear Bearing Stainless Steel Pillow Block with a 1" ID and a compensated running clearance of 0.0015" per side. A mountable standard-sized straight bore, stainless steel housing encloses the bearing, which itself has a stainless steel shell and features a self-lubricating liner made from FrelonJ®. This self-aligning bearing in a straight ID housing is typically used in single shaft applications. FrelonJ® is formulated for maintenance-free performance on 300 series stainless steel.

  • Open Stainless Steel Bearing Shell with Stainless Steel Housing
  • Temperature Rating: -400°F/+400°F or -240°C/204°C
  • 4 mounting holes for a standard sized housing
  • Use with 300 series stainless steel and softer shafting such as aluminum
  • Recommended for single shaft applications

PDF View Catalog

$843.22
Configure Custom Features
Ask about this product
Chat Now
Dimensions
Videos
Resources

Product Dimensions

Approx. Weightwidthlengthheight
2.735 lbs3.25 in2.63 in1.938 in
