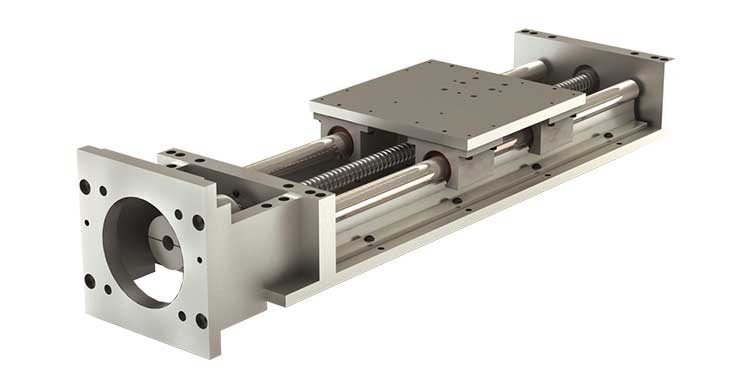

Ball Screw Linear Actuator 2N42A-2400-024.000-ABXR NEMA 42 Motor Mount, Plain Linear Bearings, 1.5″ x 24″ Shafts
- Shaft Diameter: 1.500 in
- MAX Horizontal Load (Fz): 47151 N
- Drive: Ball Screw
- Drive Input: NEMA 42
Ball screw linear slide actuator with a NEMA 42 motor mount, two 1.5" × 24" parallel rail-supported alloy steel guide shafts, and plain linear bearing pillow blocks carrying a flat-top carriage for moving and accurately positioning loads. The motor mount accommodates a compatible NEMA 42 stepper motor, sold separately. For programmable positioning, an external motor drive, motion controller, and suitable power supply are also required to control position, speed, acceleration, and direction. A precision ball screw with a 0.25" right-hand lead converts motor rotation into linear carriage movement through a recirculating ball nut.
Four Simplicity® plain linear bearing pillow blocks support the carriage as it travels along precision-ground, continuously rail-supported shafts. Their self-lubricating FrelonGOLD® PTFE-based polymer liners provide smooth motion without metal-on-metal bearing contact or extra lubrication. The plain bearing construction dampens vibration, absorbs shock loads, and tolerates dirt, dust, and extreme temperature variation. Two parallel guide shafts distribute loads across four bearings, supporting carriage stability under moment and cantilevered loading conditions. Pre-drilled support rails simplify installation and alignment.
- Ball screw actuator with NEMA 42 motor mount
- Two parallel precision-ground, hardened alloy steel guide shafts
- Linear shaft diameter: 1.5"
- Linear shaft length: 24"
- NEMA 42 motor mount included; motor sold separately
- External drive and controller required for programming
- Programmable position, speed, acceleration and direction
- Compatible power supply and electrical connections required separately
- Ball screw converts motor rotation into linear carriage movement
- Ball screw lead: 0.25" right-hand (linear travel per screw revolution)
- Recirculating ball nut provides efficient, precise linear positioning
- Four Simplicity® plain linear bearing pillow blocks
- Flat-top carriage supported by four self-lubricating bearings
- Open-shell bearings accommodate continuously rail-supported shafts
- FrelonGOLD® PTFE-based liners provide smooth, self-lubricating motion
- No metal-on-metal bearing contact or extra lubrication required
- Plain bearing design dampens vibration and absorbs shock loads
- Avoids catastrophic ball bearing failure by using sliding rather than rolling elements
- Suitable for dirt, dust and extreme temperature variation
- Pre-drilled support rails simplify mounting and alignment
- Twin-shaft design supports moment and cantilevered loads
- Maximum horizontal carriage load: 47,151N (10,600lbf)
- Maximum stroke: 304.80mm (12in)
- Applications: Industrial automation, material handling and equipment positioning
