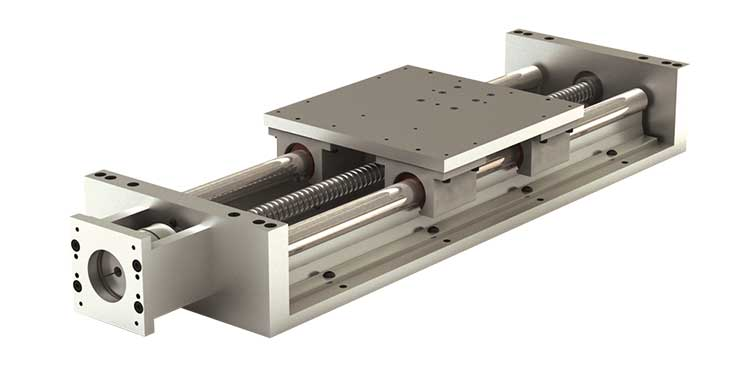

Ball Screw Linear Actuator 2N34A-1600-024.000-ABXR NEMA 34 Motor Mount, Plain Linear Bearings, 1″ x 24″ Shafts
- Shaft Diameter: 1.000 in
- MAX Horizontal Load (Fz): 23464 N
- Drive: Ball Screw
- Drive Input: NEMA 34
Ball screw linear slide actuator with a NEMA 34 motor mount, two 1" × 24" parallel rail-supported alloy steel guide shafts, and plain linear bearing pillow blocks carrying a flat-top carriage for moving and accurately positioning loads. A precision ball screw with a 0.25" right-hand lead converts motor rotation into linear motion, moving the carriage along the guide shafts via a recirculating ball nut when paired with a compatible NEMA 34 stepper motor, sold separately. Programmable positioning requires an external motor drive, controller, and suitable power supply to control position, speed, acceleration, and direction. Four Simplicity® plain linear bearing pillow blocks support the carriage along precision-ground shafts, with self-lubricating FrelonGOLD® PTFE liners providing smooth motion without metal-on-metal bearing contact or extra lubrication. The plain bearing design dampens vibration, absorbs shock loads, and tolerates dirt, dust, and extreme temperature variation, while the twin-shaft configuration supports moment and cantilevered loads.
- Ball screw actuator with NEMA 34 motor mount
- Two parallel precision-ground, hardened alloy steel guide shafts
- Linear shaft diameter: 1"
- Linear shaft length: 24"
- NEMA 34 motor mount included; motor sold separately
- External drive and controller required for programming
- Programmable position, speed, acceleration and direction
- Compatible power supply and electrical connections required separately
- Ball screw converts motor rotation into linear carriage movement
- Ball screw lead: 0.25" right-hand (linear travel per screw revolution)
- Recirculating ball nut provides efficient, precise linear positioning
- Four Simplicity® plain linear bearing pillow blocks
- Flat-top carriage supported by four self-lubricating bearings
- Open-shell bearings accommodate continuously rail-supported shafts
- FrelonGOLD® PTFE-based liners provide smooth, self-lubricating motion
- No metal-on-metal bearing contact or extra lubrication required
- Plain bearing design dampens vibration and absorbs shock loads
- Avoids catastrophic ball bearing failure by using sliding rather than rolling elements
- Suitable for dirt, dust and extreme temperature variation
- Pre-drilled support rails simplify mounting and alignment
- Twin-shaft design supports moment and cantilevered loads
- Maximum horizontal carriage load: 23,464N (5,275lbf)
- Maximum stroke: 398.48mm (15.69in)
- Applications: Industrial automation, material handling and equipment positioning
