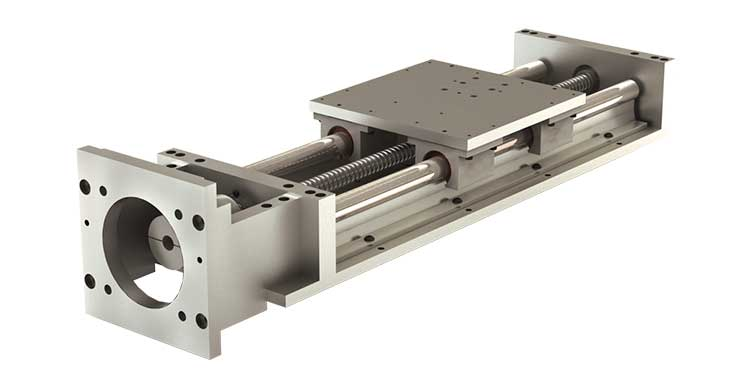

Ball Screw Linear Actuator 2N42A-3200-048.000-ABXR NEMA 42 Motor Mount, Plain Linear Bearings, 2″ x 48″ Shafts
- Shaft Diameter: 2.000 in
- MAX Horizontal Load (Fz): 83400 N
- Drive: Ball Screw
- Drive Input: NEMA 42
Ball screw linear slide actuator with NEMA 42 motor mount and two 2"×48" parallel, rail-supported alloy steel shafts and a flat-top carriage for moving and accurately positioning loads. The motor mount accommodates a compatible NEMA 42 stepper motor, sold separately. For programmable operation, an external motor drive, motion controller, and suitable power supply are also required to control position, speed, acceleration, and direction. The motor rotates a precision ball screw with a 0.25" right-hand lead, driving the carriage through a recirculating ball nut.
Four Simplicity® plain linear bearing pillow blocks support the carriage along precision-ground, continuously rail-supported shafts. Their self-lubricating FrelonGOLD® PTFE-based polymer liners provide smooth motion without metal-on-metal contact or extra bearing lubrication. The plain bearing design dampens vibration, absorbs shock loads, and tolerates dirt, dust, and extreme temperature variation. The twin-shaft configuration distributes loads and maintains carriage stability under moment and cantilevered loading conditions.
- Ball screw linear actuator with NEMA 42 motor mount for accurate load positioning
- Two parallel precision-ground, hardened alloy steel shafts
- Linear shaft diameter: 2"
- Linear shaft length: 48"
- NEMA 42 motor mount included; motor sold separately
- Compatible NEMA 42 stepper motor required for powered operation
- External motor drive and motion controller required for programmable operation
- Suitable power supply and electrical connections required separately
- Programmable position, speed, acceleration and direction with compatible controls
- Ball screw drive converts motor rotation into linear carriage movement
- Ball screw lead: 0.25" right-hand (linear travel per screw revolution)
- Recirculating ball nut provides efficient, precise linear positioning
- Four Simplicity® plain linear bearing pillow blocks
- Flat-top carriage supported by four self-lubricating bearings
- Open-shell bearings accommodate continuously rail-supported shafts
- FrelonGOLD® PTFE-based liners provide smooth, self-lubricating motion
- No metal-on-metal bearing contact or extra lubrication required
- Plain bearing design dampens vibration and absorbs shock loads
- Avoids catastrophic ball bearing failure by using sliding rather than rolling elements
- Suitable for dirt, dust and extreme temperature variation
- Pre-drilled support rails simplify mounting and alignment
- Twin-shaft design supports moment and cantilevered loads
- Maximum horizontal load capacity: 83,400N (18,750lbf)
- Maximum stroke: 815.85mm (32.12in)
- Applications: Industrial automation, material handling and equipment positioning
