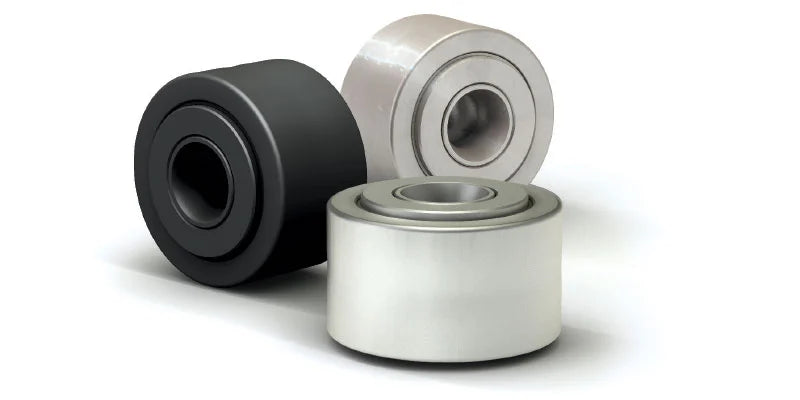

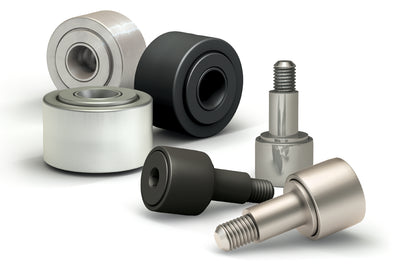

Cam Followers and Cam Yoke Rollers

Robust and Economical Linear Motion Solutions

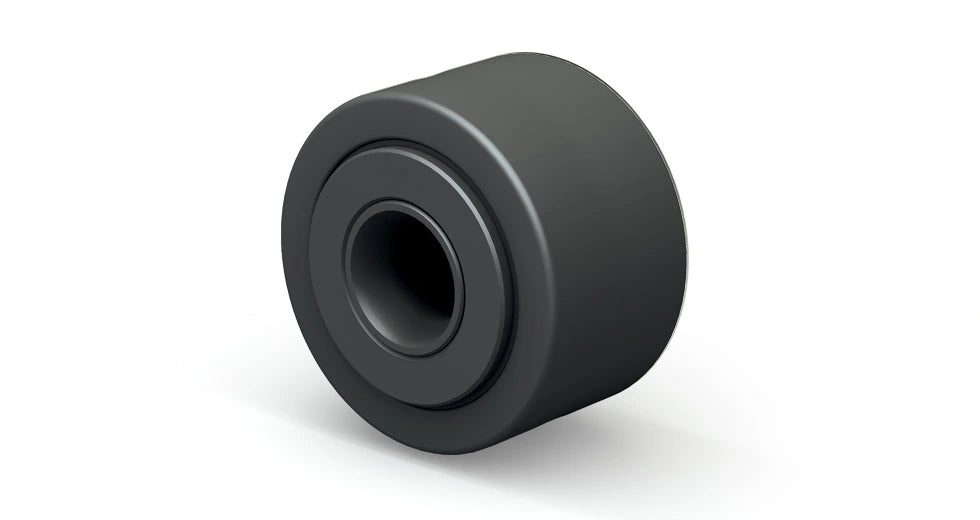

The outer shell of the Cam Yoke Roller is crafted from high carbon chrome bearing steel that is through-hardened and ground. The studs and inner shells are made from low carbon alloy steel, which is carburized and induction hardened. The zone-hardened raceway ensures the shank end remains ductile.

• Radial Load Capacity: 610 lb to 1,660 lb
• Static Load Capacity: 725 lb to 4,130 lb

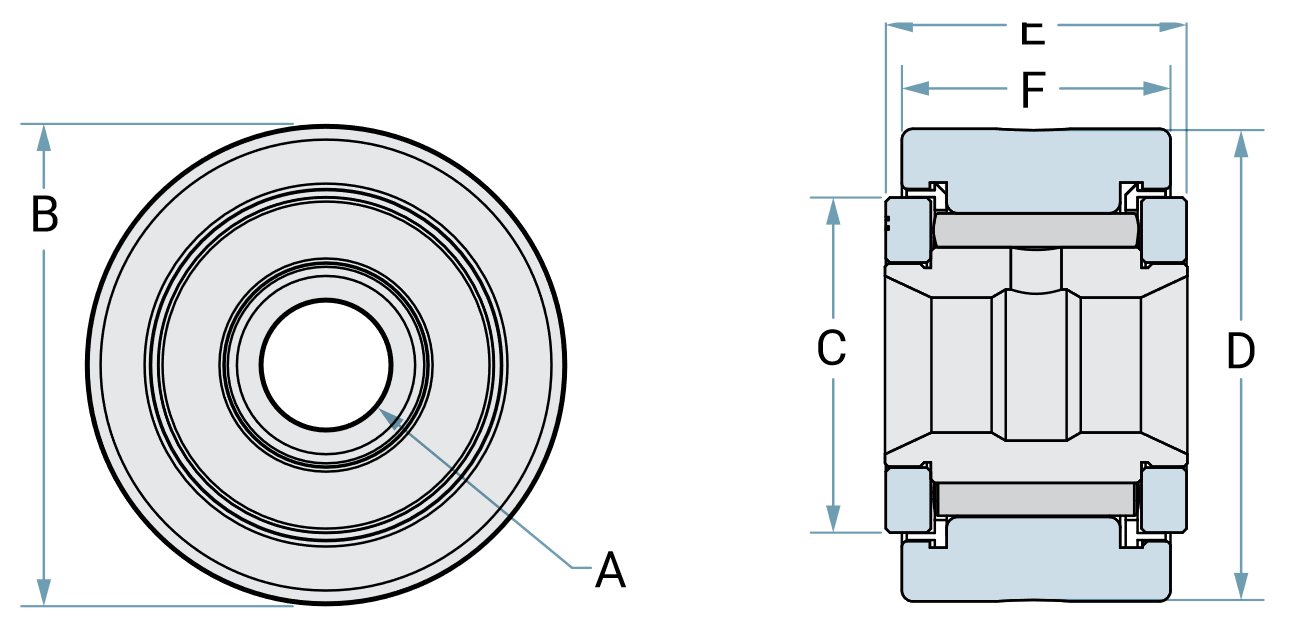

• Inner Diameter (A): 0.1260" to 1.9750"
• Outer Diameter (B): 0.432" to 0.850"

The outer race of the Cam Yoke Roller is made from high carbon chrome bearing steel that is through-hardened and ground. The studs and inner races are composed of low carbon alloy steel, which undergoes carburizing and induction hardening. The zone-hardened raceway ensures the shank end retains its ductility. This variant comes sealed to prevent contamination and retain lubrication.

• Radial Load Capacity: 1,490 lb to 11,720 lb
• Static Load Capacity: 2,100 lb to 32,900 lb
• Inner Diameter (A): 0.250" to 0.750"
• Outer Diameter (B): 0.875" to 2.500"

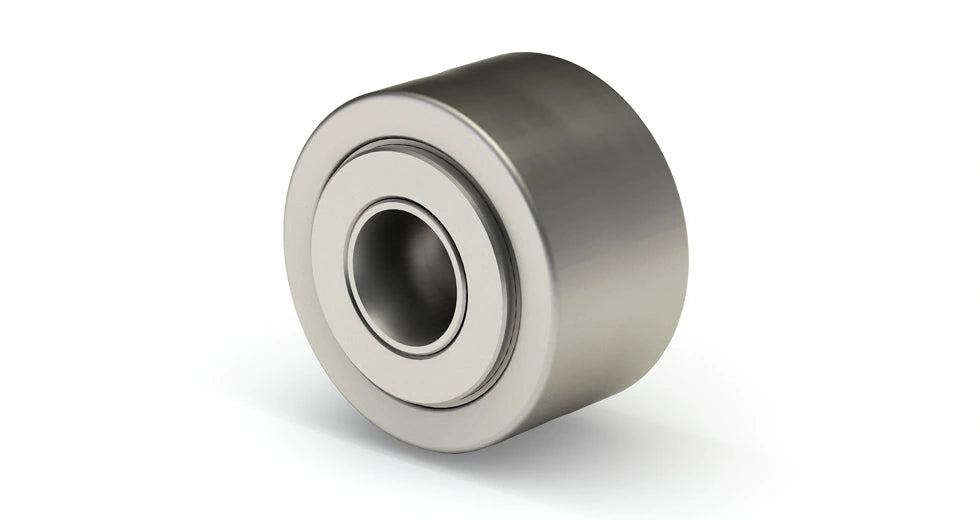

Chrome Plated Cam Yoke Rollers are offered as both sealed and non-sealed options. The sealed version helps to prevent contamination and retain lubrication.

• Radial Load Capacity: 610 lb to 2,225 lb
• Static Load Capacity: 726 lb to 6,120 lb
• Inner Diameter (A): 0.126" to 0.312"
• Outer Diameter (B): 0.432" to 1.125"

High Temp Cam Yoke Rollers are offered as both sealed and non-sealed options. The sealed version helps to prevent contamination and retain lubrication.

• Radial Load Capacity: 610 lb to 2,225 lb
• Static Load Capacity: 726 lb to 6,120 lb
• Inner Diameter (A): 0.1258" to 0.3124"
• Outer Diameter (B): 0.432" to 1.125"

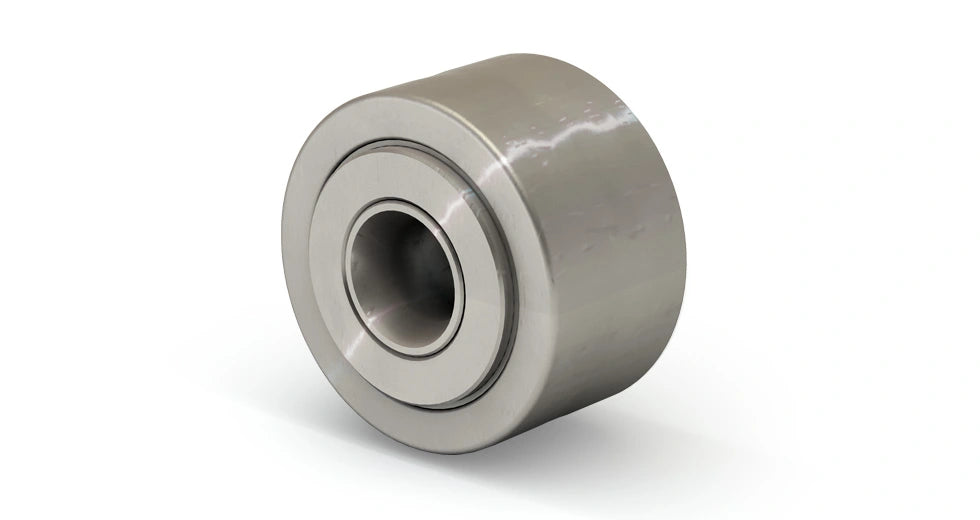

Stainless Steel Cam Yoke Rollers are ideal for applications that require corrosion resistance. They are offered as both sealed and non-sealed options. The sealed version helps to prevent contamination and retain lubrication.

• Radial Load Capacity: 796 lb to 2225 lb
• Static Load Capacity: 972 lb to 5400 lb
• Inner Diameter (A): 0.19750" to 0.31240"
• Outer Diameter (B): 0.667" to 1.125"

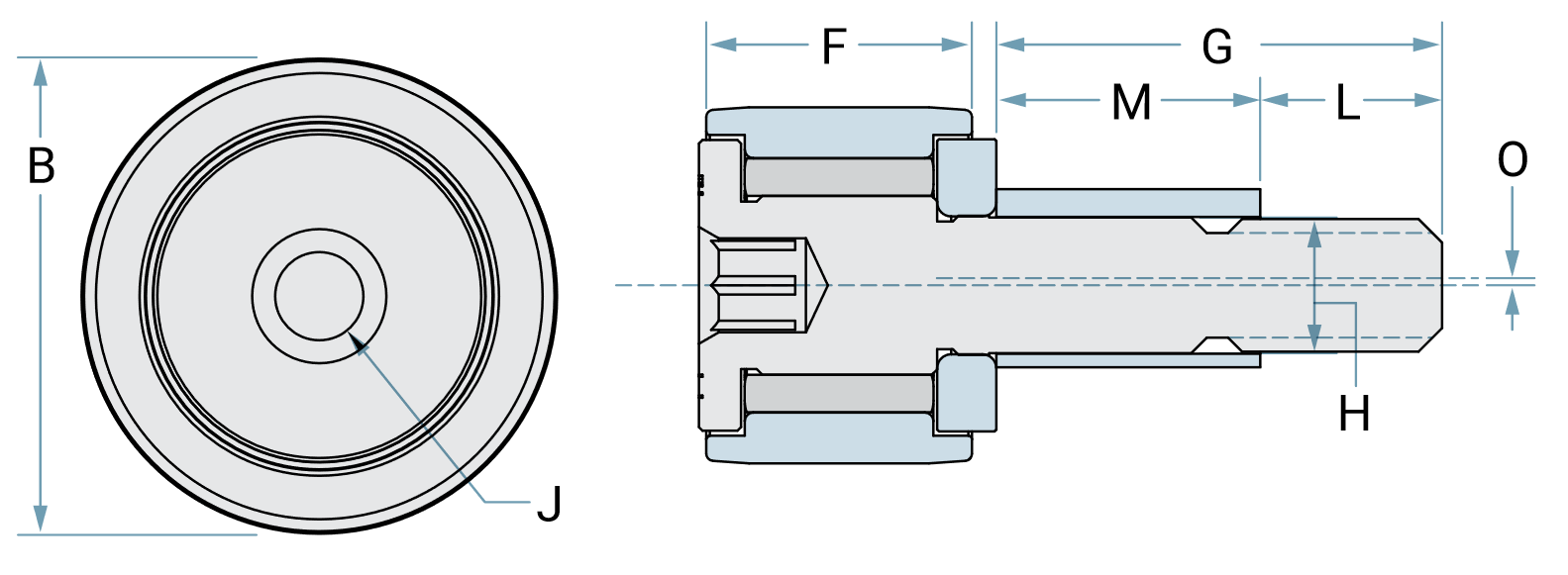

The Eccentric Cam Follower is designed for situations where maintaining tight tolerances on the mounting holes may be challenging. It features an eccentric lip that fits with a corresponding lip on the bearing's inner ring. When the collar is rotated while the shaft and inner ring are held steady, a cam action is created that securely locks the collar and inner ring to the shaft. Eccentric Cam Followers are not recommended for applications with reversing rotation.

• Radial Load Capacity: 680 lb to 2,225 lb
• Static Load Capacity: 790 lb to 3,060 lb
• Inner Diameter (J): 0.125" to 0.250"
• Outer Diameter (B): 0.500" to 1.125"
• Thread Sizes: 10-32 UNF-2A to 7/16-20 UNF 2A

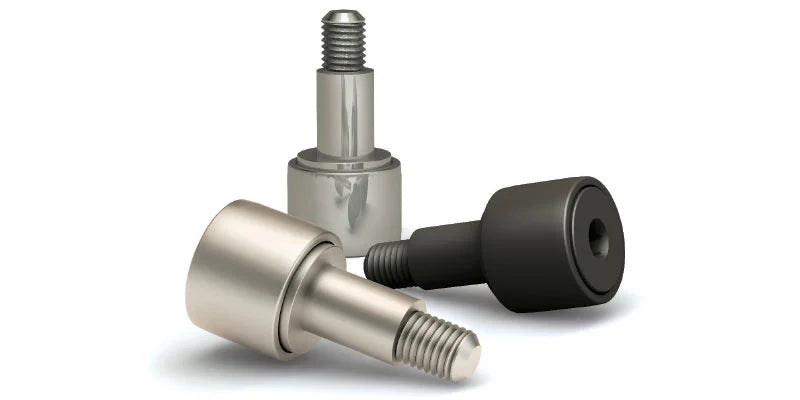

Concentric Cam Followers include a concentric collar which acts as a locking mechanism. The collar centers the bearing bore which reduces vibration and prevents shaft run out during operation.

• Radial Load Capacity: 300 lb to 995 lb
• Static Load Capacity: 610 lb to 1,215 lb
• Inner Diameter (J): 0.125"
• Outer Diameter (B): 0.500" to 0.625"
• Thread Sizes: 10-32 UNF-2A to 1/4-28 - 3A
