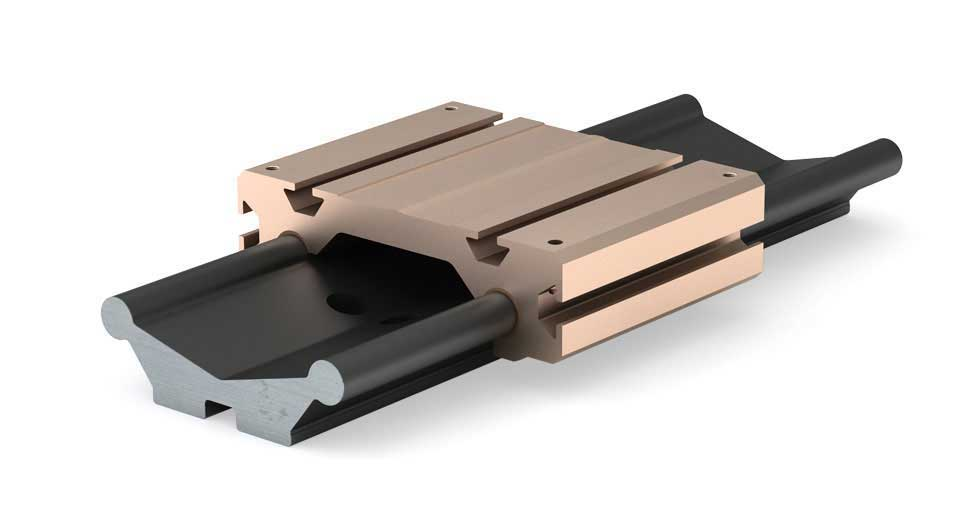

Linear Slide - Uni-Guide D125-036-000-1 Car Width: 4.92″ Linear Rail Length: 36″

Linear slide with a 36" long rail, 125mm (4.92") wide carriage from the Uni-Guide™ series of sliding linear guides. This two-piece, precision-matched rail-and-carriage assembly uses Gliding Surface Technology™ with a self-lubricating FrelonGOLD® polymer liner bonded beneath the anodized aluminum carriage for smooth, quiet, maintenance-free linear motion without additional lubrication. The ceramic hard-coated anodized aluminum rail provides corrosion and wear resistance, while the plain bearing design eliminates metal-to-metal contact and rolling elements, avoiding catastrophic ball bearing failure. The system performs reliably in harsh environments involving high temperatures, dirt, dust, vibration, shock, and welding spatter. Excessively cantilevered loads may require cam roller or ball bearing linear guides to avoid binding.

  • Sliding linear guide with a 36" rail, 125mm wide carriage, and integrated hand brake
  • No hand-brake - For this, see product DC125CHB
  • Ceramic hard-coated aluminum rail length: 36"
  • Carriage width: 125mm (4.92") | Carriage length: 6.0"
  • Largest standard Uni-Guide carriage size for higher load and moment capacity
  • Static load capacity: up to 1,000 lb (4,448 N)
  • Gliding Surface Technology™ (GST) for smooth, quiet linear motion
  • Self-lubricating FrelonGOLD® polymer liner without additional lubrication
  • No rolling elements, avoiding catastrophic ball bearing failure
  • Resistant to high temperatures, dirt, vibration, shock, and welding spatter
  • Hard-coat anodized finish enhances corrosion and wear resistance
  • Precision-matched rail and carriage for easy installation
  • Optional chemical-resistant FrelonJ® and FDA-compliant FrelonW® liners
  • Custom rail lengths available through Configure & Quote

NOTE: Gliding surface carriages and rails are manufactured as matched sets for optimal fit and performance. Do not separate, store separately, or mix and match components. Adding or replacing a carriage on an existing rail may result in improper fit or incompatibility.

3D Models

TypeFileFormatLink
3dD125-036.htmlhtmlView
cadD125-036.dxfDXFDownload
$1,157.65
Configure Custom Features
Dimensions
Videos
Resources

Product Dimensions

Approx. Weightwidthlengthheight
23.03 lbs7.58 in36 in2.63 in
