A Lift in a Robotics Competition

Let The Games Begin

FRC varies their games each year. For the first year of collaboration between the Vikings and PBC Linear, FRC rolled out Breakaway, a game where teams are grouped into alliances (3 teams and 3 robots per alliance). The robots were created using varied student-made designs to accomplish feats that included tossing soccer balls at targets or elevating and suspending climbing towers in order to score points.

For the next year, FRC unveiled Logomotion™. This game featured an alliance of three teams that attempt to place a variety of plastic tubes onto 10-foot scoring pads or deploy mini-robots designed to climb up the poles.

Team Solutions

For the first year, the Vikings accomplished their goals by utilizing our Uni-Guide controlled design, offering reliable operation for the robot’s “kicking” mechanism. Once the Uni-Guide was installed into their design, the Vikings were able to compete in events throughout the country, pitting their robot against other high school teams.

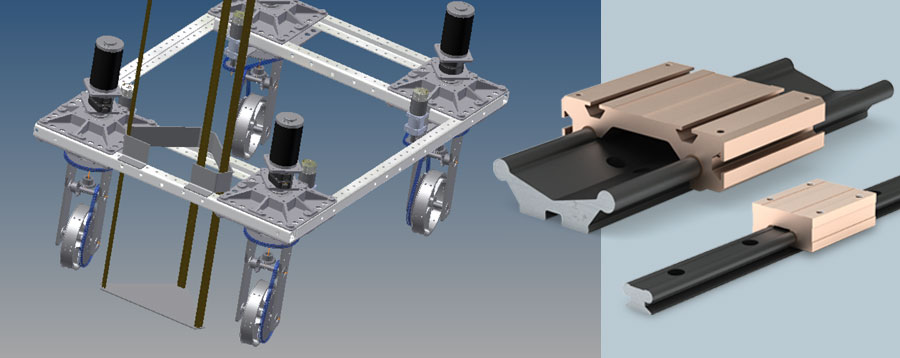

During the second year, PBC Linear teamed up with the Vikings again to help with the new game designs. The Vikings decided to install Mini-Rail miniature linear guides in a telescopic lift application. This offered the team reliable linear travel under extreme impact conditions. As the team headed further into the competition, they found further uses for Mini-Rail. For example, linear guides were used as a way to deploy smaller robots to gain points.

Victorious in mind and battle

With the first competition, the team’s innovative design and hard-working Uni-Guide helped the Vikings’ robot excel in its mechanical performance. In addition, the Vikings were recognized for their design, winning an award for Innovation and Control, and then continuing on to win first place at the Long Island Regional.

At the second year’s competition, their re-design cost the team some wins, but they learned valuable lessons regarding the physics of vertical lift and robotics. In spite of some losses, the team was very satisfied with the performance of the Mini-Rail product. Allen Nuttle, the team mentor added, “The Mini-Rail performed very well in both the lifting and mini-robot deployment tasks.”
