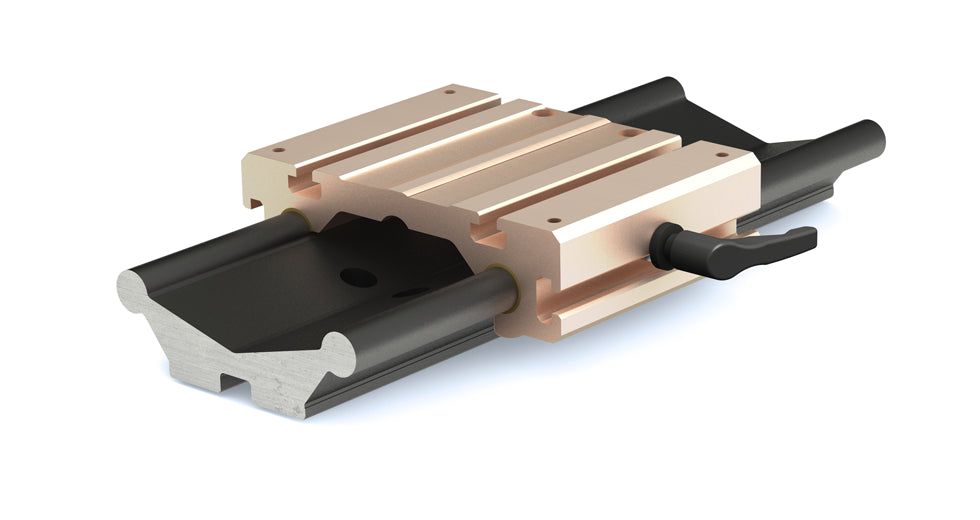

Linear Slide - Uni-Guide D075CHB-012-000-1 w/ Hand Brake, Car Width 2.95″ Rail Length: 12″
Linear slide with a 12" long rail, 75mm (2.95") wide carriage, and integrated hand brake, from the Uni-Guide™ series of sliding linear guides. This two-piece, precision-matched rail-and-carriage assembly uses Gliding Surface Technology™ with a self-lubricating FrelonGOLD® polymer liner bonded beneath the anodized aluminum carriage for smooth, quiet, maintenance-free linear motion without additional lubrication. The ceramic hard-coated anodized aluminum rail provides corrosion and wear resistance, while the plain bearing design eliminates metal-to-metal contact and rolling elements, avoiding catastrophic ball bearing failure. The system performs reliably in harsh environments involving high temperatures, dirt, dust, vibration, shock, and welding spatter.
- Sliding linear guide with a 12" rail, 75mm wide carriage, and integrated hand brake
- Integrated carriage hand brake for manual position locking
- Ceramic hard-coated aluminum rail length: 12"
- Carriage width: 75mm (2.95") | Carriage length: 3.5"
- Static load capacity: up to 500 lb (2,224 N)
- Gliding Surface Technology™ (GST) for smooth, quiet linear motion
- Self-lubricating FrelonGOLD® polymer liner without additional lubrication
- No rolling elements, avoiding catastrophic ball bearing failure
- Resistant to high temperatures, dirt, vibration, shock, and welding spatter
- Hard-coat anodized finish enhances corrosion and wear resistance
- Precision-matched rail and carriage for easy installation
- Optional chemical-resistant FrelonJ® and FDA-compliant FrelonW® liners
- Custom rail lengths available through Configure & Quote
NOTE: Gliding surface carriages and rails are manufactured as matched sets for optimal fit and performance. Do not separate, store separately, or mix and match components. Adding or replacing a carriage on an existing rail may result in improper fit or incompatibility.
