Plain Linear Bearings, Sleeve Bushings, Pillow Blocks and Flange Mounts
Ways to Order
Browse Categories
Closed Plain Linear Bearing Pillow Block with a 1/2" inner diameter and a precision running clearance of 0.0005" per side. A mountable standard-sized aluminum housing encloses the bearing, which features a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Optional liners: corrosive chemical..
$54.09

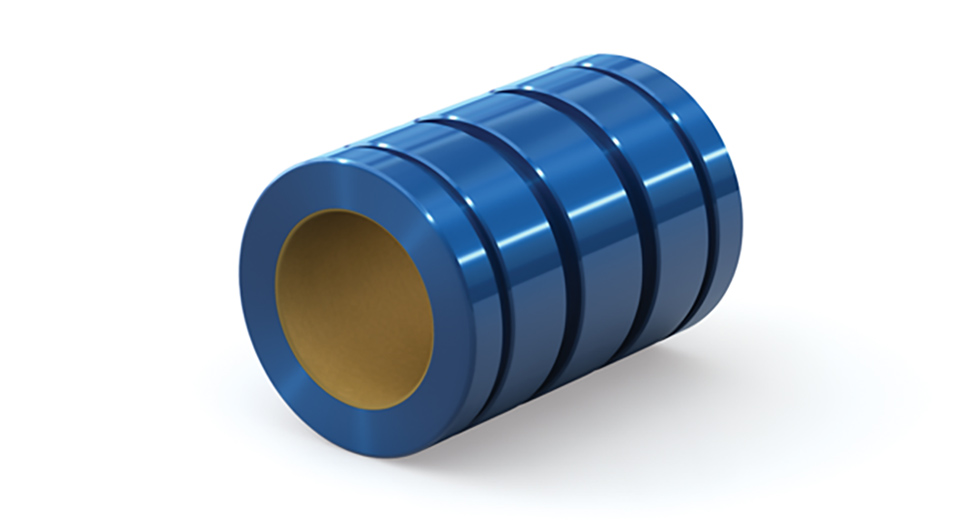

Plain linear bearing, closed, with a 25mm precision ID (inner diameter) that provides a running clearance of 0.0005" per side. Lined with self-lubricating FrelonGOLD® for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. ISO Metric Series - Closed Straight outer diameter (crowned ODs available via the FMA..
$38.84

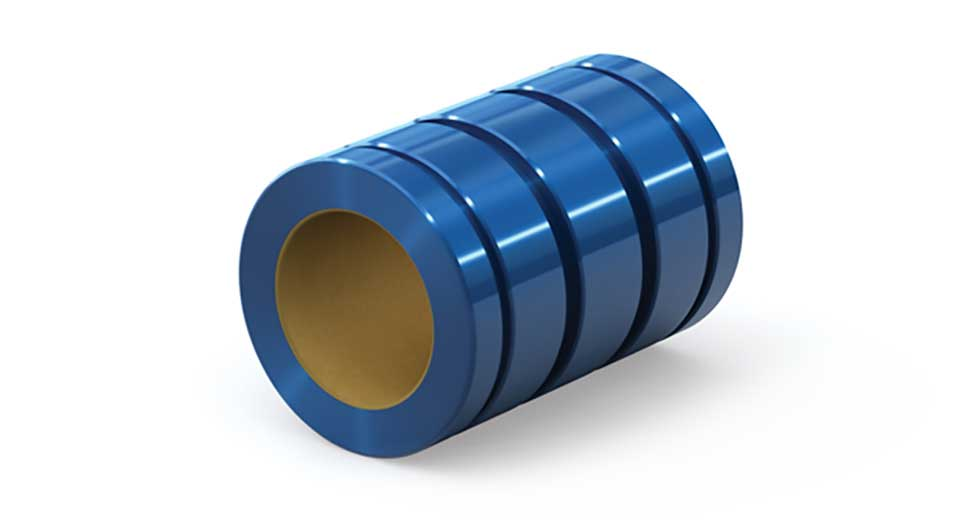

Plain linear bearing, closed, with a 12mm precision ID (inner diameter) that provides a running clearance of 0.0005" per side. Lined with self-lubricating FrelonGOLD® for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. ISO Metric Series - Closed Straight outer diameter (crowned ODs available via the FMA..
$18.46
Open plain linear bearing with a 1" precision ID, which has a 0.0005" per side running clearance. Encased in an anodized aluminum shell and lined with self-lubricating FrelonGOLD®, this bearing ensures maintenance-free performance in harsh conditions, including extreme temperatures, dirt, and vibration. Inch Series - Open anodized aluminum shell Precision..
$49.07
Plain linear bearing, closed, with a 5/8" compensated ID, which has a 0.0015" per side running clearance. Housed in an anodized aluminum shell and lined with self-lubricating FrelonGOLD®, this bearing ensures maintenance-free performance in harsh conditions, including extreme temperatures, dirt, and vibration. Inch Series - Closed Anodized aluminum shell Compensated..
$20.59
Plain Linear Bearing with a Square Flange and a 1.25" precision ID, designed to slide smoothly on both steel and ceramic-coated aluminum shafts. It features a self-lubricating FrelonGOLD® bearing liner that performs reliably with vibration damping in harsh conditions, enabling long-term, maintenance-free operation. Precision running clearance on the inner diameter..
$183.08
Round Flanged Sleeve Bearing with a 20mm inner diameter, 20mm length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating bearing liner is FrelonGold®, ensuring durable performance in extreme environments (such as heat or dirt) without catastrophic failure. Temperature..
$42.53
Sleeve Bearing, round flanged with a 1.5" inner diameter, 2" length, round flange and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating bearing liner is FrelonGold®, ensuring durable performance in extreme (such as hot or dirty) environments without catastrophic..
$73.30

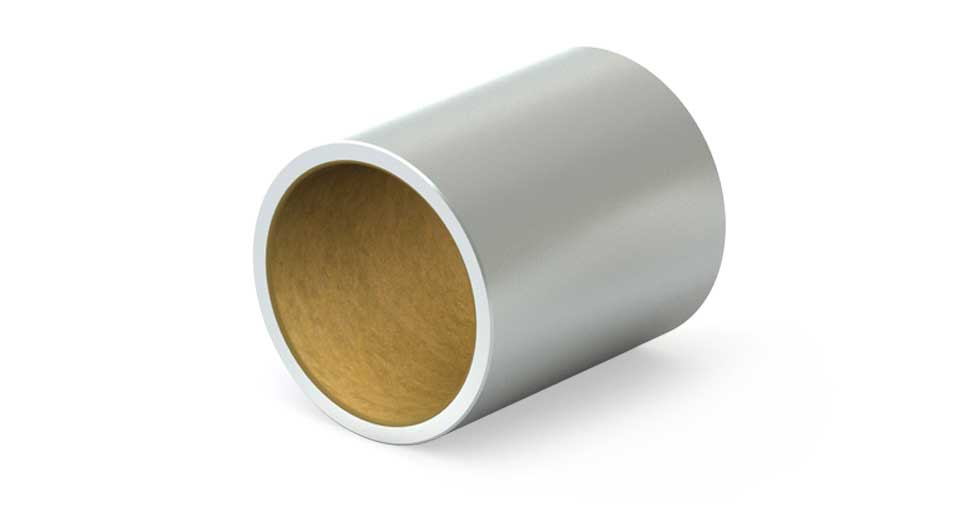

Linear Sleeve Bearing with a 1/2" inner diameter, 1" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$16.25
Die set plain linear bearing with a 3/4″ inner diameter, a precision running clearance of 0.0005″ per side and a closed aluminum shell. Features an uneven round flange and self-lubricating FrelonGOLD® liner as standard, which provides optimal performance in extreme conditions such as dirt, heat and vibration. An optional Frelon®J..
$62.21
Double die set plain linear bearing, steel shelled, with a 1.5″ ID and a precision running clearance of 0.0005″ per side. Features a closed, double sized design with a round flange in the center, as well as a self-lubricating FrelonGOLD® liner that provides optimal performance in extreme conditions such as..
$312.43
Twin Sized Closed 1" ID Plain Linear Bearing Pillow Block made of aluminum alloy with holes for mounting and featuring a precision cut Simplicity® plain bearing with an anodized aluminum shell and the renowned self-lubricating FrelonGOLD® bearing liner for maintenance-free operation, low friction, and durability in extreme conditions like high..
$183.36
Twin plain linear bearing pillow block with a closed 1" compensated ID bearing inside a mountable aluminum alloy housing. The bearing has an anodized aluminum shell and is lined with self-lubricating FrelonGOLD®, ensuring maintenance-free operation, low friction, and durability in extreme conditions like high temperatures, dirt, and vibration. The twin..
$183.36
Open Plain Linear Bearing Pillow Block with a 3/4" inner diameter and a precision running clearance of 0.0005" per side. A mountable standard-sized aluminum housing encloses the bearing, which features a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Optional liners: corrosive chemical..
$78.52
Open Plain Linear Bearing Pillow Block with a 1/2" inner diameter and a precision running clearance of 0.0005" per side. A mountable standard-sized aluminum housing encloses the bearing, which features a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Optional liners: corrosive chemical..
$63.28
Closed Plain Linear Bearing Pillow Block with a 3/4" inner diameter and a precision running clearance of 0.0005" per side. A mountable standard-sized aluminum housing encloses the bearing, which features a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Optional liners: corrosive chemical..
$63.71
Open plain linear bearing with a 10mm ISO Metric precision ID (inner diameter) with a running clearance of 0.0005" per side, featuring a self-lubricating FrelonGOLD® liner for maintenance-free operation in harsh conditions including extreme temperatures, dirt and vibration. ISO Metric - Open anodized aluminum shell Precision running clearance of 0.0005" per..
$21.95
Plain linear bearing, closed, with a 3/16" compensated ID, which has a 0.0015" per side running clearance. Housed in an anodized aluminum shell and lined with self-lubricating FrelonGOLD®, this bearing ensures maintenance-free performance in harsh conditions, including extreme temperatures, dirt, and vibration. Inch Series - Closed Anodized aluminum shell Compensated..
$15.98
Closed crowned plain linear bearing with 5/8 inch ID (inner diameter) and a precision running clearance of 0.0005" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. Crowned self-aligning outer diameter Inch Series Precision running clearance 0.0005" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates well in harsh, high temperature environments..
$22.64
Closed crowned plain linear bearing with 3/8 inch ID (inner diameter) and a precision running clearance of 0.0005" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. Crowned self-aligning outer diameter Inch Series Precision running clearance 0.0005" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates well in harsh, high temperature..
$19.50
Simplicity® Plain Linear Bearing variants, including standalone bearings, sleeve bushings, flange mounts and pillow blocks, featuring the self-lubricating FrelonGOLD® PTFE-based liner, which minimizes friction and wear, eliminates external lubrication needs, and outperforms in harsh, hot, or dirty environments. The stand-alone variants have straight or crowned anodized aluminum shells (open or closed), or you can choose from straight or flanged sleeve bearings, or choose bearings inside standard-sized or double-sized pillow blocks (open or closed), or inside standard or double-sized aluminum flanged mounts. Optional Frelon® J liners provide resistance to corrosive chemicals, while Frelon® W liners ensure FDA compliance. All variants support rotary, linear, or oscillating motion, with precision or compensated running clearances. Offered in Inch, ISO Metric, or JIS Metric ID series, they deliver maintenance-free performance across a wide temperature range. The 2:1 binding rule applies.
- Sizing Options: Inch, metric, and JIS sizes available
- Available in open, closed and thin-wall styles
- ID Sizes: Available from 3/16” to 4” Inch Series, 5mm to 80mm Metric Series
- Shaft Lengths: Up to 12 feet
- Shell Material: Standard is aluminum; stainless steel shells are available
- Maximum Speed: Up to 8 m/s (315 in/s)
- Temperature Rating: -400°F to +400°F or -240°C to 204°C
- Maximum Horizontal Static Load: 2,165 to 100,500 lb (982 to 45,586 kg)
- Seal Options: Nitrile rubber, urethane, and viton seals available from ½” ID and up or 20mm and up
- Mounting Options: O-ring and retaining ring grooves for multiple mounting options
- External Lubrication: Optional feature for added lubrication
- Vibration Damping: Ensures smooth and quiet operation
View our full Plain Linear Bearing Product Features page
