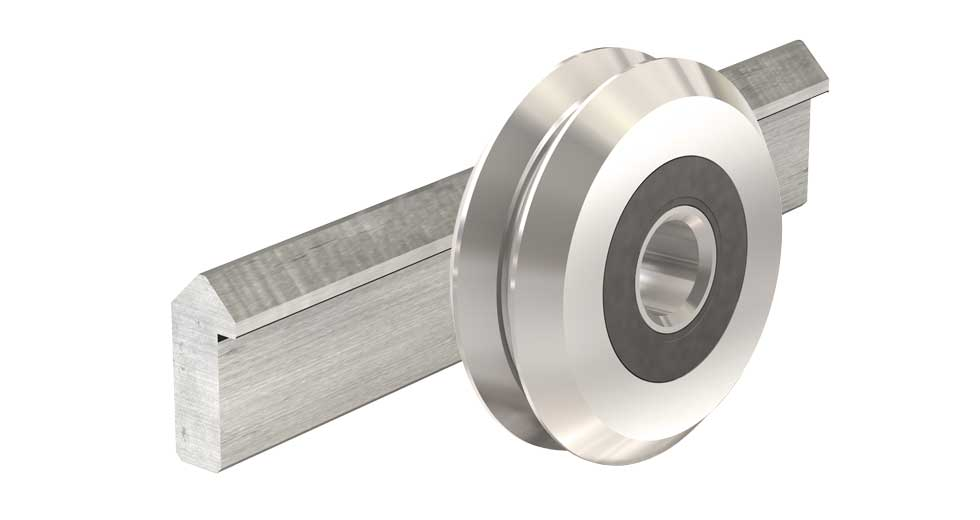

V-Rail Linear Rail - V-Guide VRS1-012 for Size 1 V-Wheels - Length: 12" Stainless Steel

V-Rail Stainless Steel Linear Rail, 12" long, matching Size 1 V-wheels (20mm diameter roller bearings sold separately). This undrilled solid v-groove rail is part of PBC Linear’s V-Guide series. Constructed from 400 series stainless steel, it is polished for a high-quality surface that minimizes friction and wear. Simple installation with a shoulder for precise mounting. The dual-row angular contact design enhances load capacity for reliable high-speed performance.

• Linear Rail only - 400 Series Stainless Steel Linear Rail only

• Rail Fits V-Guide Size 1 V-Wheels of 20mm diameter
• Length: 12"
• Precision dual row angular contact design
• Not Drilled - See Configuration CAD and Quote to request this

• Compatible with v-wheel part numbers VW1, VWS1, VWSS1
• 400 Series Stainless Steel

• Shoulder for simple mounting and alignment
• Operating temperature range from -20°C to 80°C
  (-4°F to 176°F)
