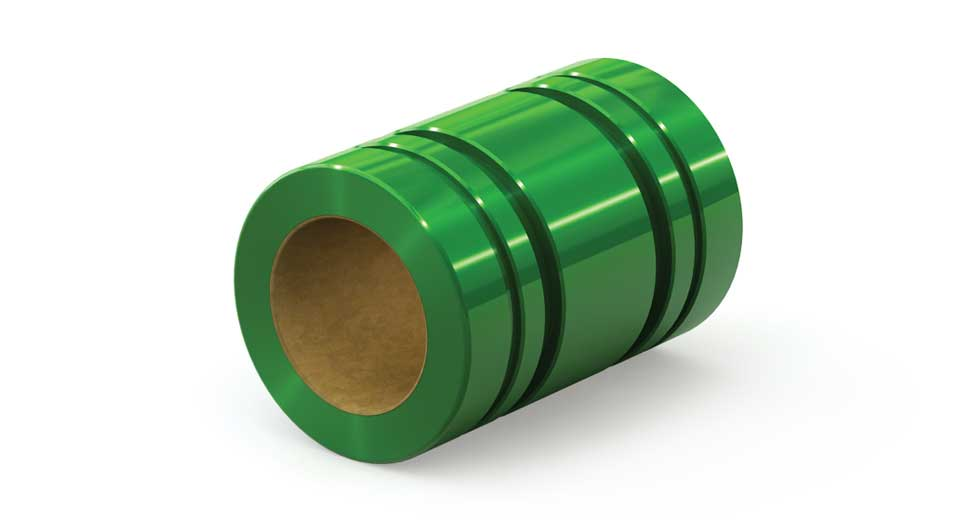

JIS Plain Linear Bearing - FJAC30 30mm

Self-aligning closed plain linear bearing with a 30mm JIS compensated ID that has a 0.0015" running clearance per side. The green anodized aluminum shell ensures robust durability, while the FrelonGOLD® liner delivers self-lubricating, maintenance-free performance with vibration damping.

• Crowned outer diameter (OD) is self-aligning
• Meets JIS metric tolerance standards for precision and compatibility
• Optional Frelon® J or W liners for corrosive environments or FDA compliance
• Handles static loads up to 741,331 N (~166,537 lbs) for heavy-duty applications
• Operates effectively from -240°C to 204°C (-400°F to 400°F)
• Self-lubricating bearings just brush away dirt
• Includes optional urethane seals (≥20mm ID), O-rings, or external lubrication
