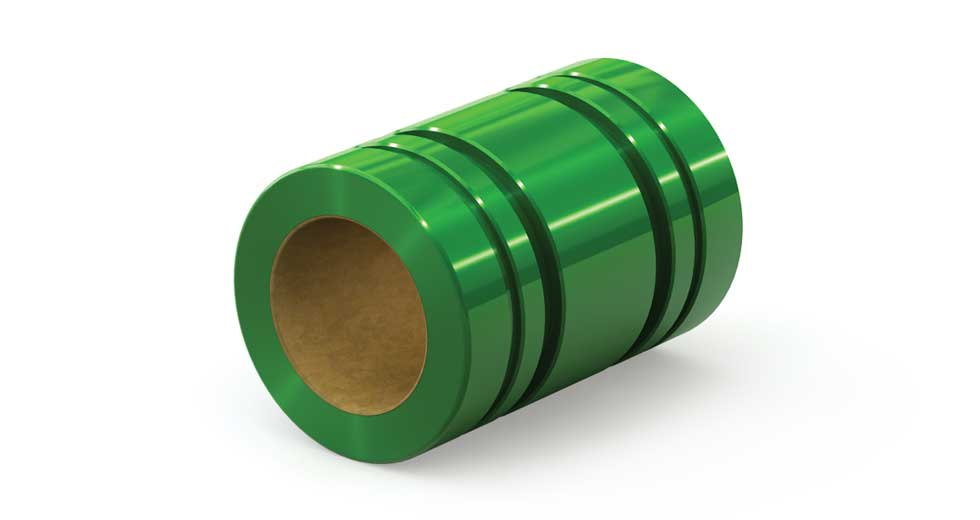

JIS Plain Linear Bearing FJAC120 120mm Self-Aligning, Compensated ID

JIS plain linear bearing, self-aligning, closed, 120mm compensated ID that provides a 0.0015" running clearance per side for a tighter fit and less play on round shafts. Sized to Japanese Industrial Standards (JIS), it is encased in a crowned-OD cylindrical green-anodized aluminum shell. The crown creates a curved contact surface that lets a compatible self-aligning housing seat the bearing at a slight angle, helping compensate for minor angular misalignment between parallel shafts without forcing the shaft and liner into a rigid bind. It features a bonded Simplicity® self-lubricating FrelonGOLD® bore liner for maintenance-free linear, rotational, and oscillating motion in harsh environments where ball bearings often fail, such as extreme temperatures, dirt, welding splatter, vibration, shock loads, contamination, or washdowns.

• Crowned outer diameter (OD) is self-aligning
• Meets JIS (Japanese Industrial Standards)
• Compensated running clearance: 0.0015" per side
• Optional Frelon® J or W liners for corrosive environments or FDA compliance
• Handles static loads up to 741,331 N (~166,537 lbs) for heavy-duty applications
• Operates effectively from -240°C to 204°C (-400°F to 400°F)
• Self-lubricating bearings just brush away dirt
